installation system
Thermo Proof Wood Mini

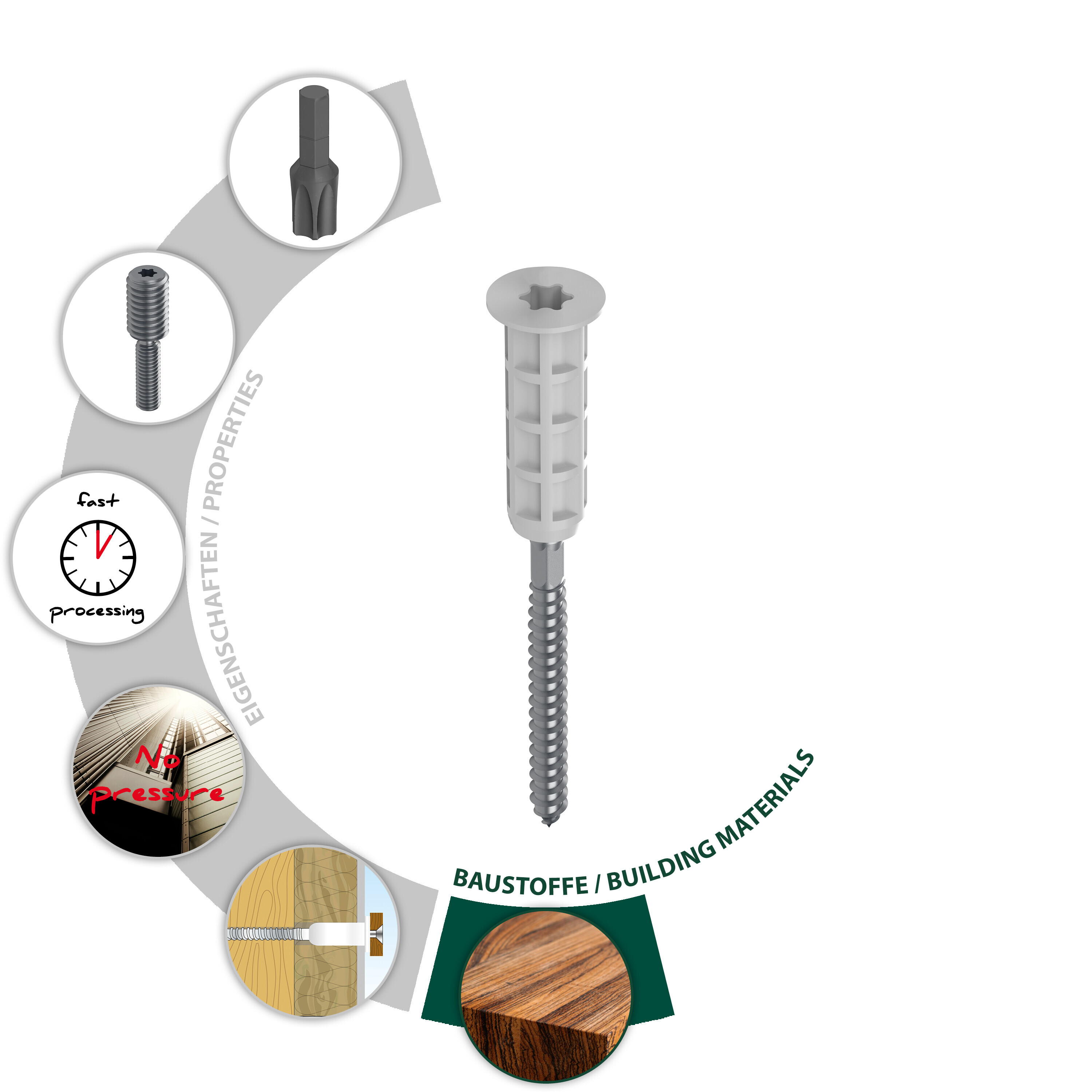

The TOX Thermo Proof Wood Mini is a stand-off installation system for fixing light loads to houses in timber frame construction with 50-80 mm wood fibre insulation boards. Thanks to its variable connection options with M10 external thread, M6 internal thread or screw (diameter 3 - 4.5 mm), the Thermo Proof Wood Mini is versatile. The infinitely adjustable Iso Spacer insulating sleeve with a large contact surface prevents compressive loads on the facade.
- Specially for timber frame construction with insulation made from 50-80 mm wood fiber insulation boards

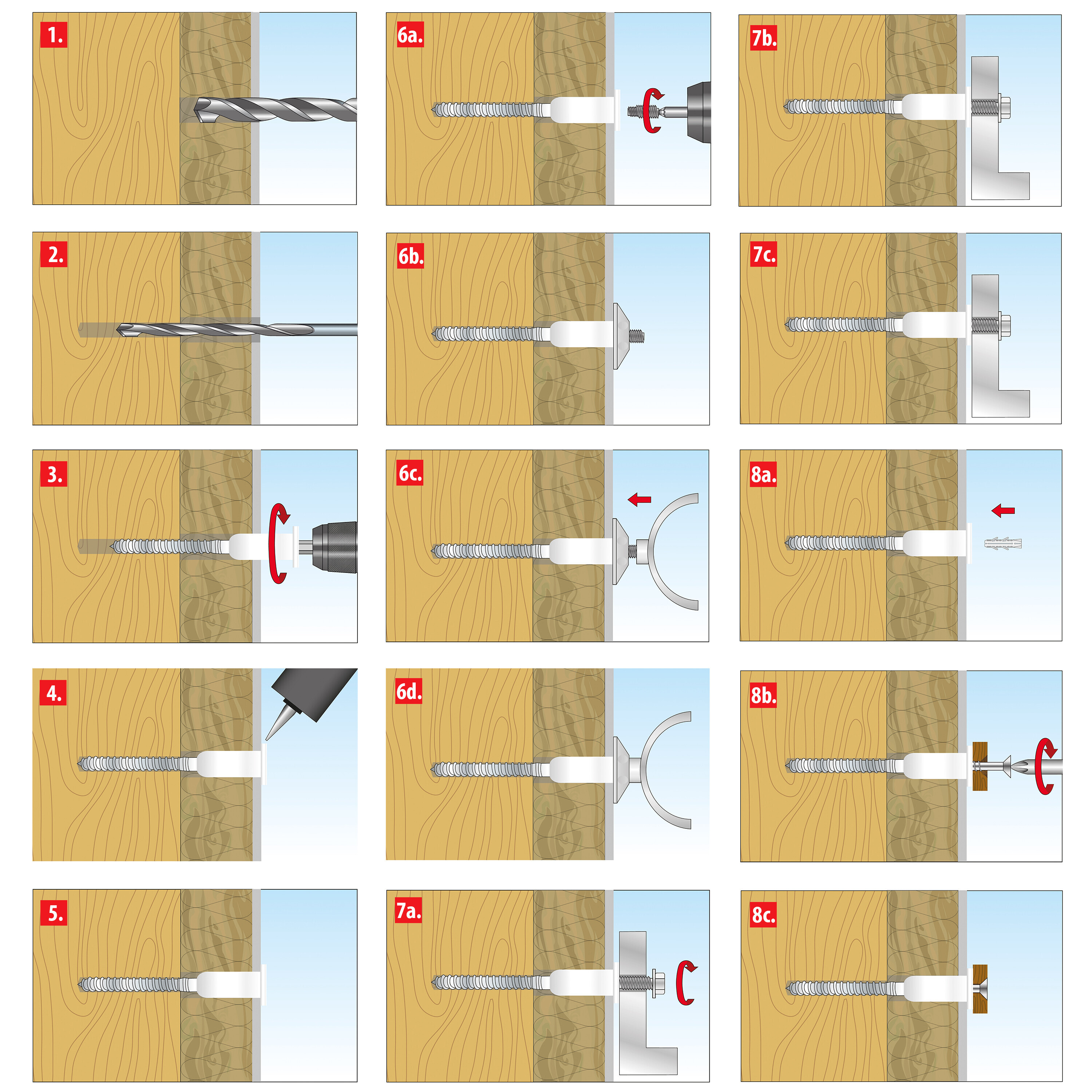

- Simple and quick installation
- Variable connection options (M10 external thread, M6 internal thread or screw (diameter 3 - 4.5 mm)
- When used with M10 mounting threaded pin: fixing of e.g. downpipe clamps
- When used without mounting grub screw: fixing of attachment parts with M6 threaded screws
- When used without mounting grub screw and Barracuda 5/25: fixing of attachment parts with a screw diameter of 3 - 4.5 mm
- No compressive load on the facade
- Slim head geometry for invisible fixing

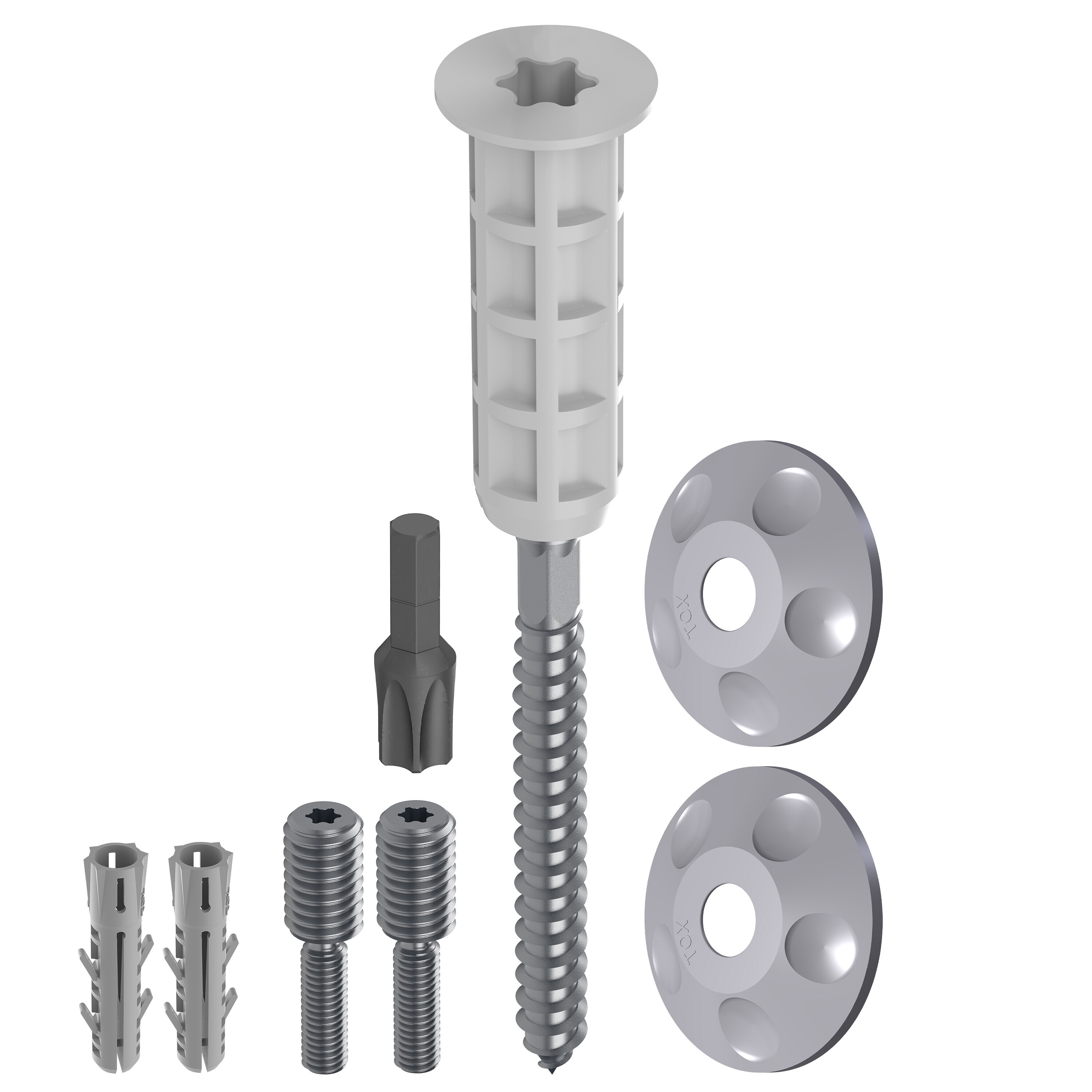

The Thermo Proof Wood Mini is supplied in a bag of 2 pieces
The Thermo Proof Wood Mini is supplied in a bag of 2 pieces.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Area of application: | Outdoors |
|---|---|
| Drill diameter: | 5 |
| Property: | Mounting system |
| Zug- und Drucklast je Befestigungspunkt | 100 Kg |
|---|
