Cap strip fastening
Thermo Kappo

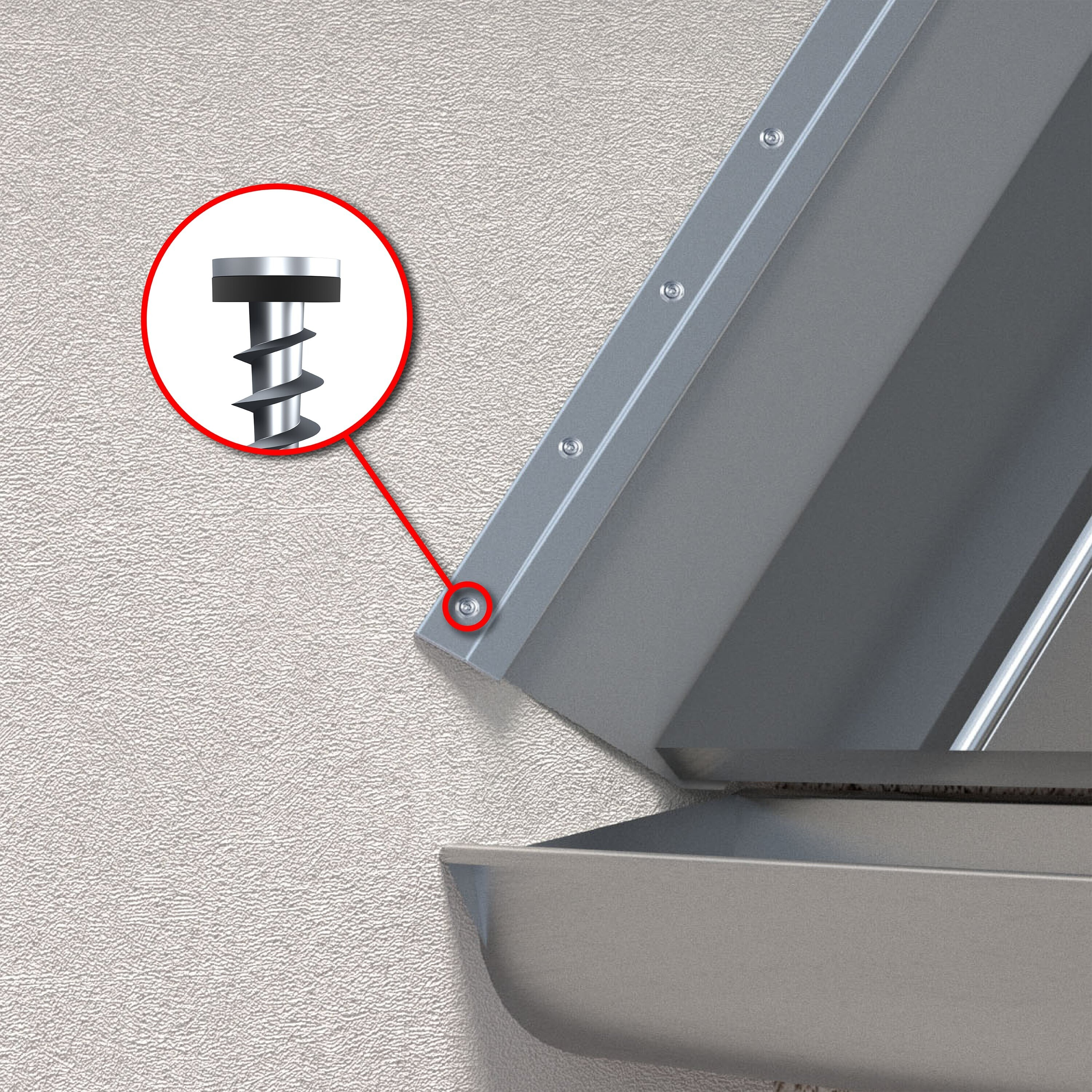

The TOX Thermo Kappo cap strip fastener incl. sealing washer and with drill tip enables simple installation of cap strips without the need for marking and pre-drilling - ideal for fixing wall connection profiles and signs to facades!

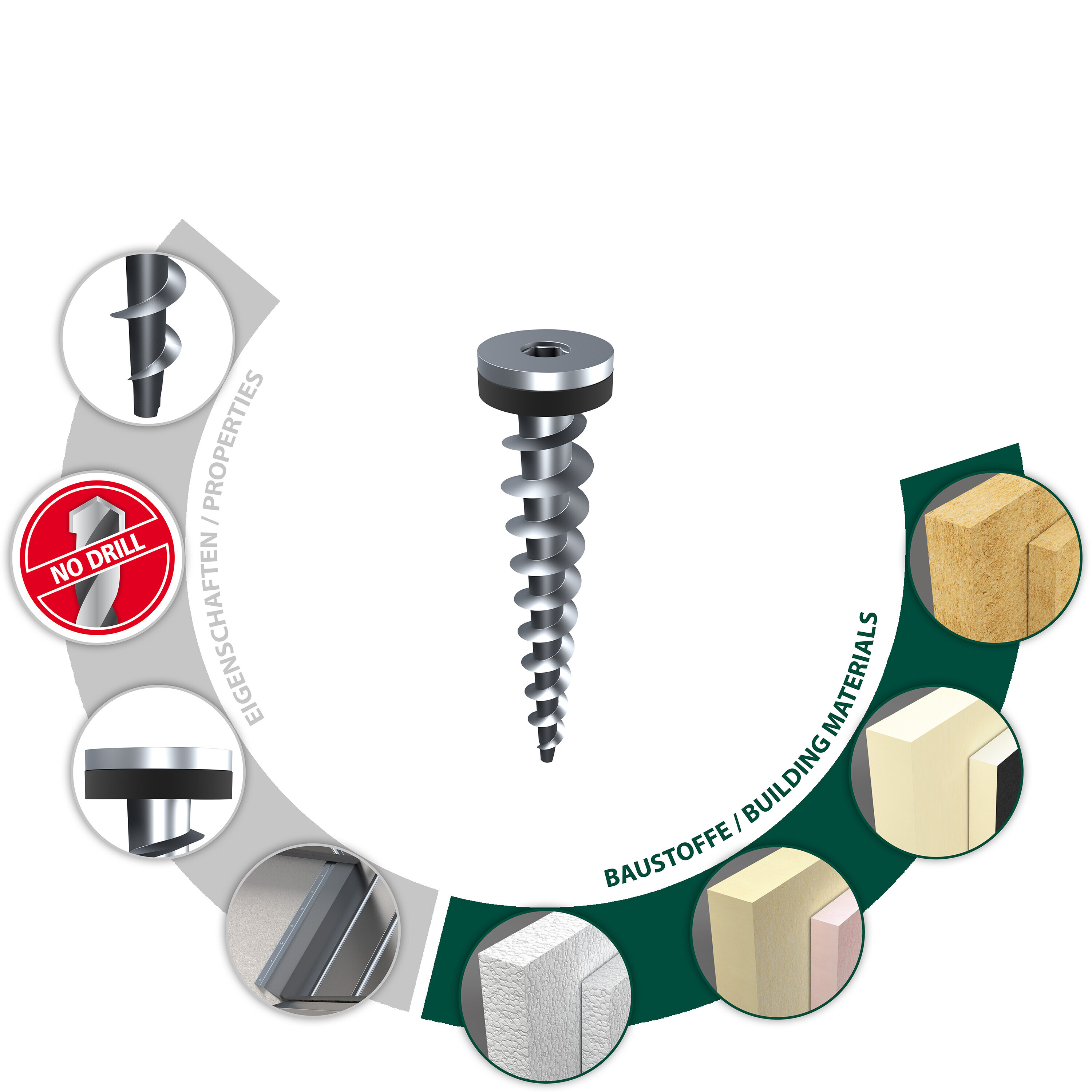

Whether you're a DIY enthusiast or a professional tradesman, the Thermo Kappo is perfect for insulation materials such as EPS 20, XPS 20, PUR or wood fiber insulation boards - simply attach, screw in and fix securely. The cap strip fastening made of robust die-cast zinc offers a practical solution for façade installations without thermal bridges. Even with thick plaster and in wood fiber insulation boards, no pre-drilling is required - direct installation is convenient without separate plugs or slipping of the TX30 drive. Thanks to the special head with integrated EPDM sealing washer, it replaces sealing screws and ensures a reliable seal.
The Thermo Kappo cap strip fastener incl. EPDM sealing washer is supplied in a handy box containing 50 pieces.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 65 |
|---|---|
| Area of application: | Indoors and outdoors |
| Diameter: | 15 |
| Plug dimension: | 65 |
| Property: | Kappleistenbefestigung |
| EPS 20 mm | 4 Kg |
|---|---|
| XPS 20 mm | 6 Kg |
| PUR | 3 Kg |
| Holzfaserdämmplatte | 4 Kg |
Safety instructions
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
