Parallel expansion plug
TV-Set

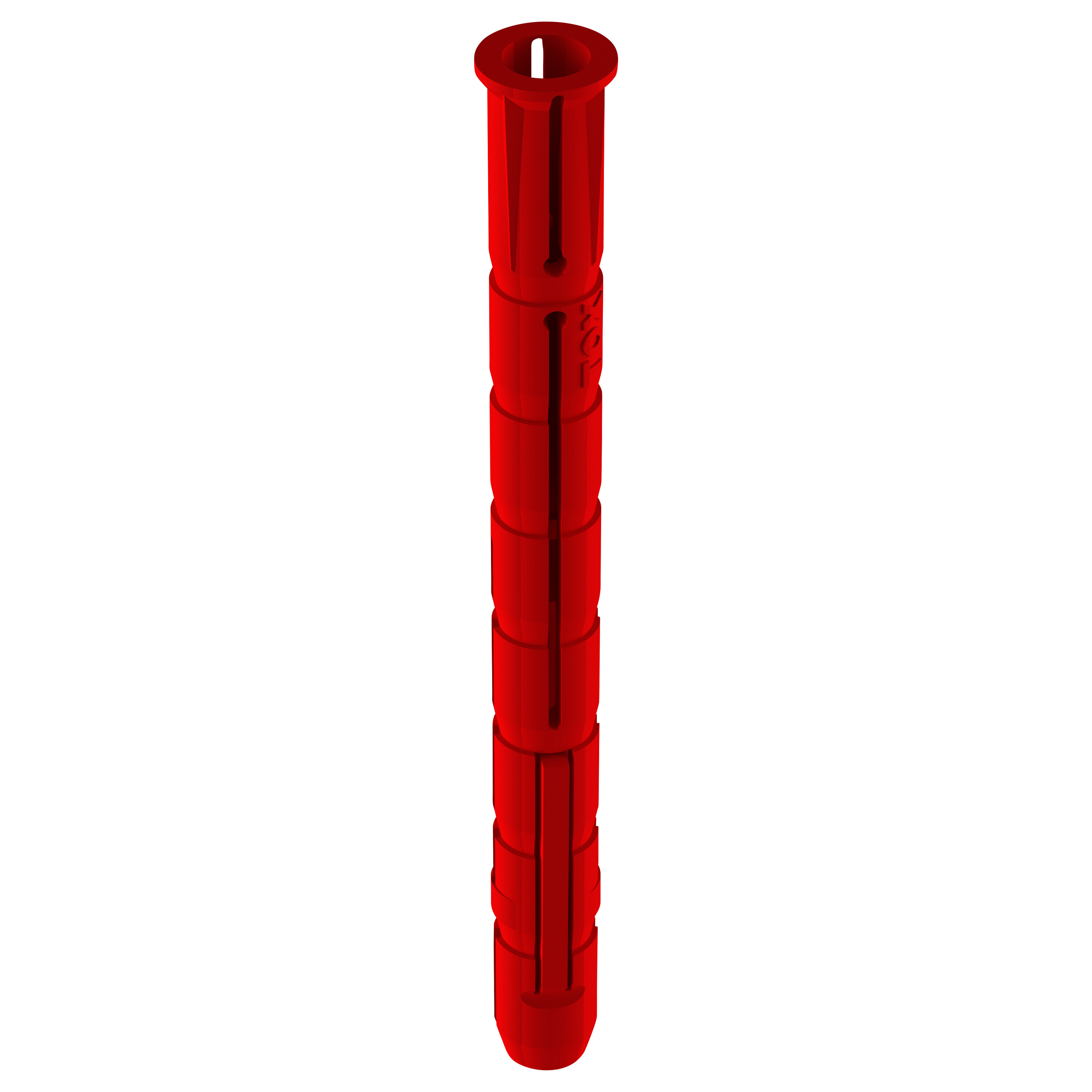

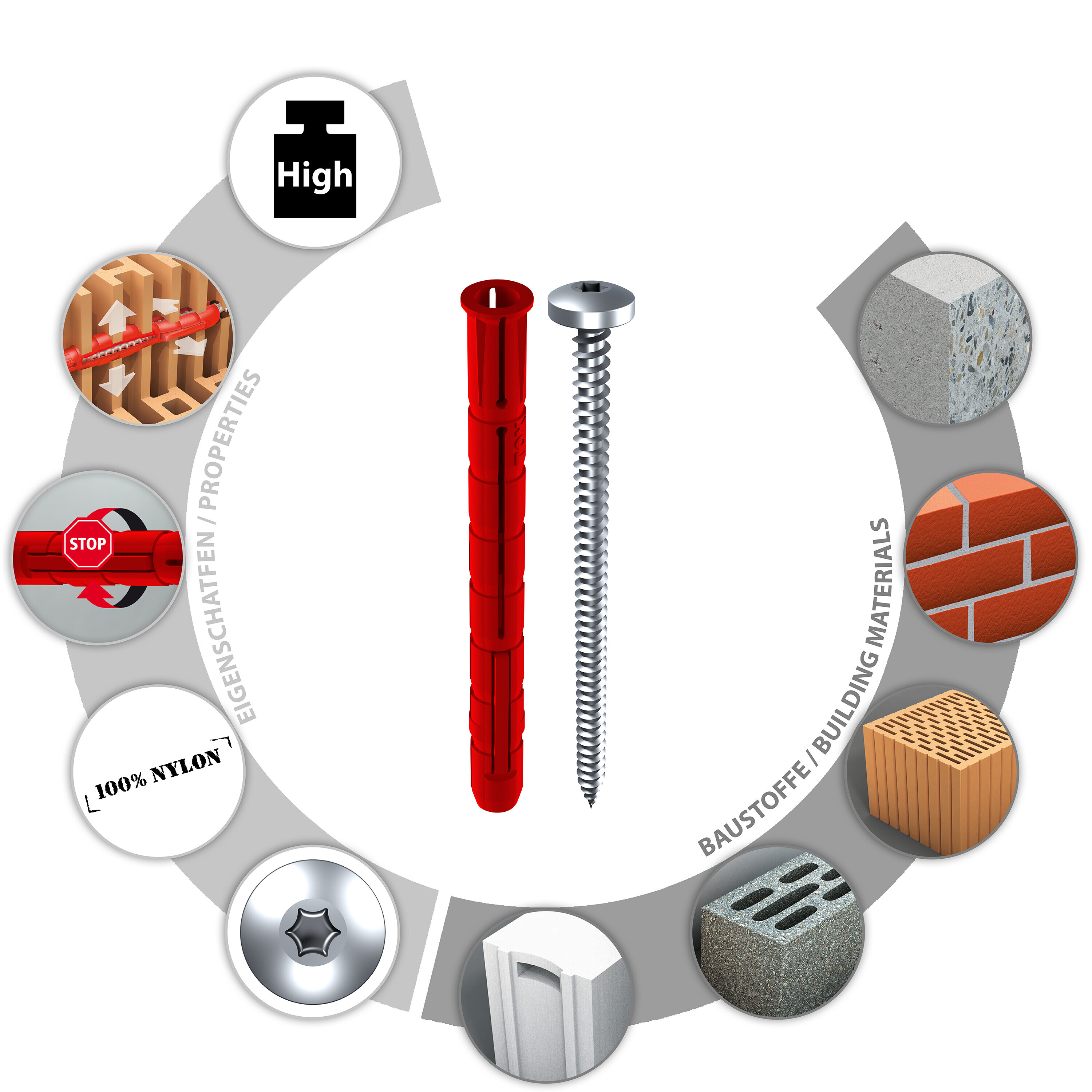

Whether in the living room, bedroom or office: the TOX TV-Set TV mounting offers secure fixing with extremely high holding values, keeping your valuable TV set securely in place! The TV-Set holds in several building materials such as concrete and solid brick and is the ideal choice for perforated brick (Poroton) and aerated concrete (Ytong) in particular. The plug of the TV-Set is made of 100% nylon, a robust and durable material, so the TV is securely fixed to the wall in the long term. The special plug has two expansion bodies, which ensure optimum, even force distribution in four directions in the building material. In addition, the expansion plug also has a large anchorage depth with a long expansion area, which means even more stability. For convenient installation, turning wings prevent the plug from turning in the drill hole and the flexible plug neck adapts to the drill hole. The TV-Set includes an optimally matched flat-head screw so that you can get started with the installation straight away.

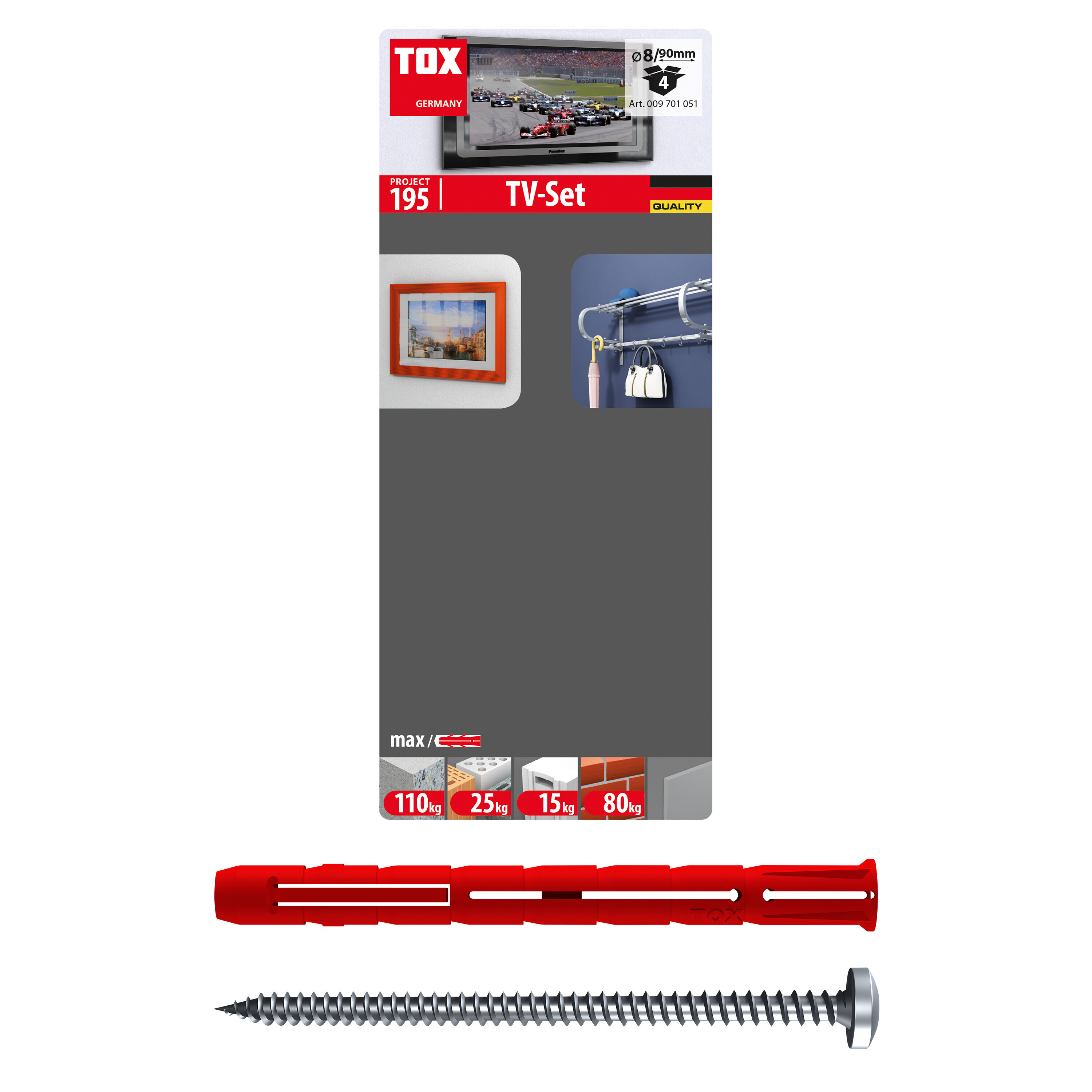

The TV-Set, consisting of expansion plug and flat-head screw, is supplied in a handy blister with 4 pieces.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 90 |
|---|---|
| Area of application: | Indoors |
| Diameter: | 8 |
| Diameter of included screw: | 6 |
| Drill diameter: | 8 |
| Drill hole depth: | 100 |
| Length of included screw: | 100 |
| Plug dimension: | 8 x 90 |
| Property: | Parallel-Spreizdübel |
| Beton C20/25 | 110 Kg |
|---|---|
| Vollstein MZ 12 | 80 Kg |
| Hochlochziegel ≥ Hlz12 Rohdichte 1 kg/dm³ | 25 Kg |
| Hohlblockstein ≥ Hbl2 | 15 Kg |
| Porenbeton ≥ PB2, PP2 | 15 Kg |

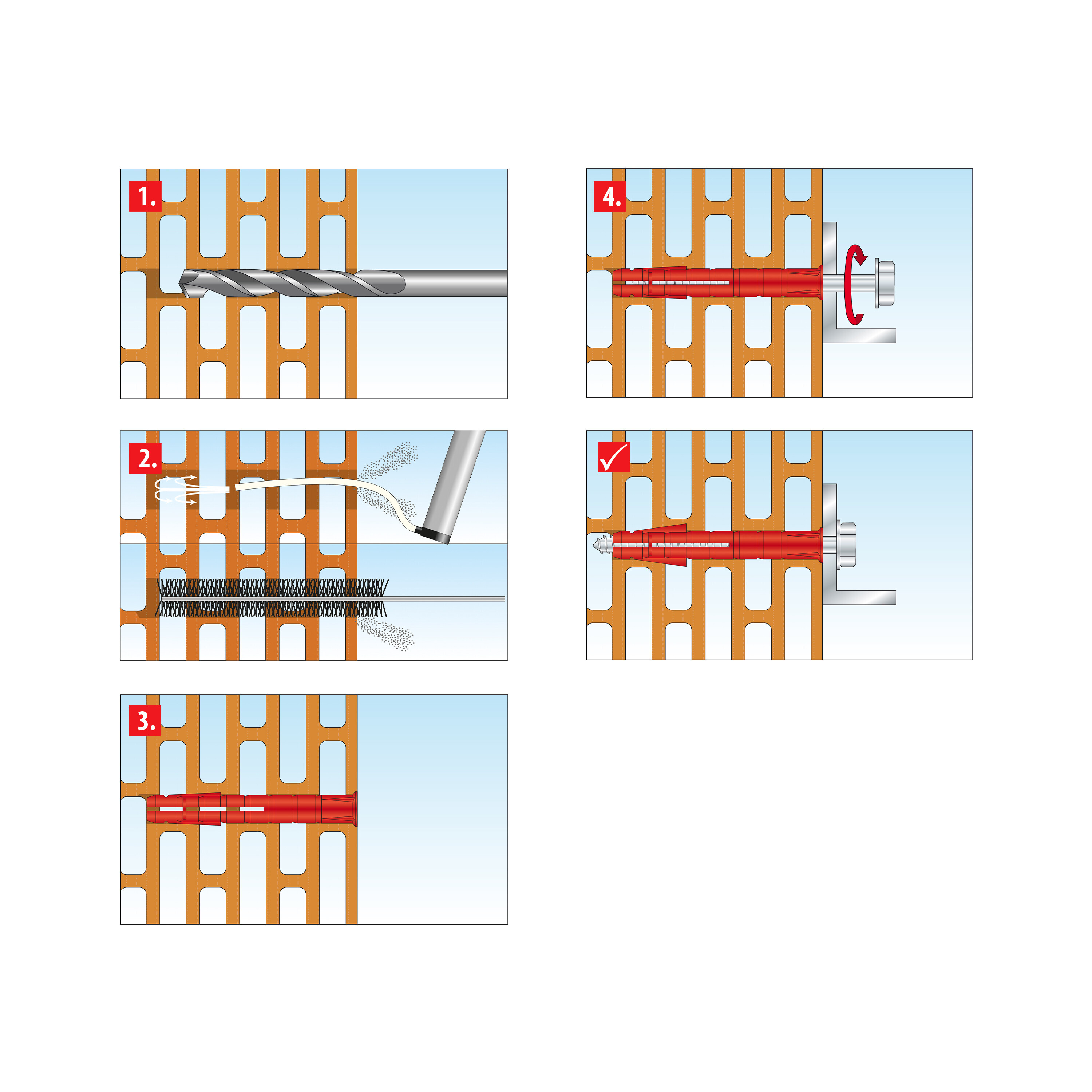

Safety instructions
- The anchoring depth of the wall plug must be observed
- Drilling method and drill hole cleaning must be adapted to the building material
- The recommended loads only apply to installation in the building material, not for installation in joints
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
