System TRIx

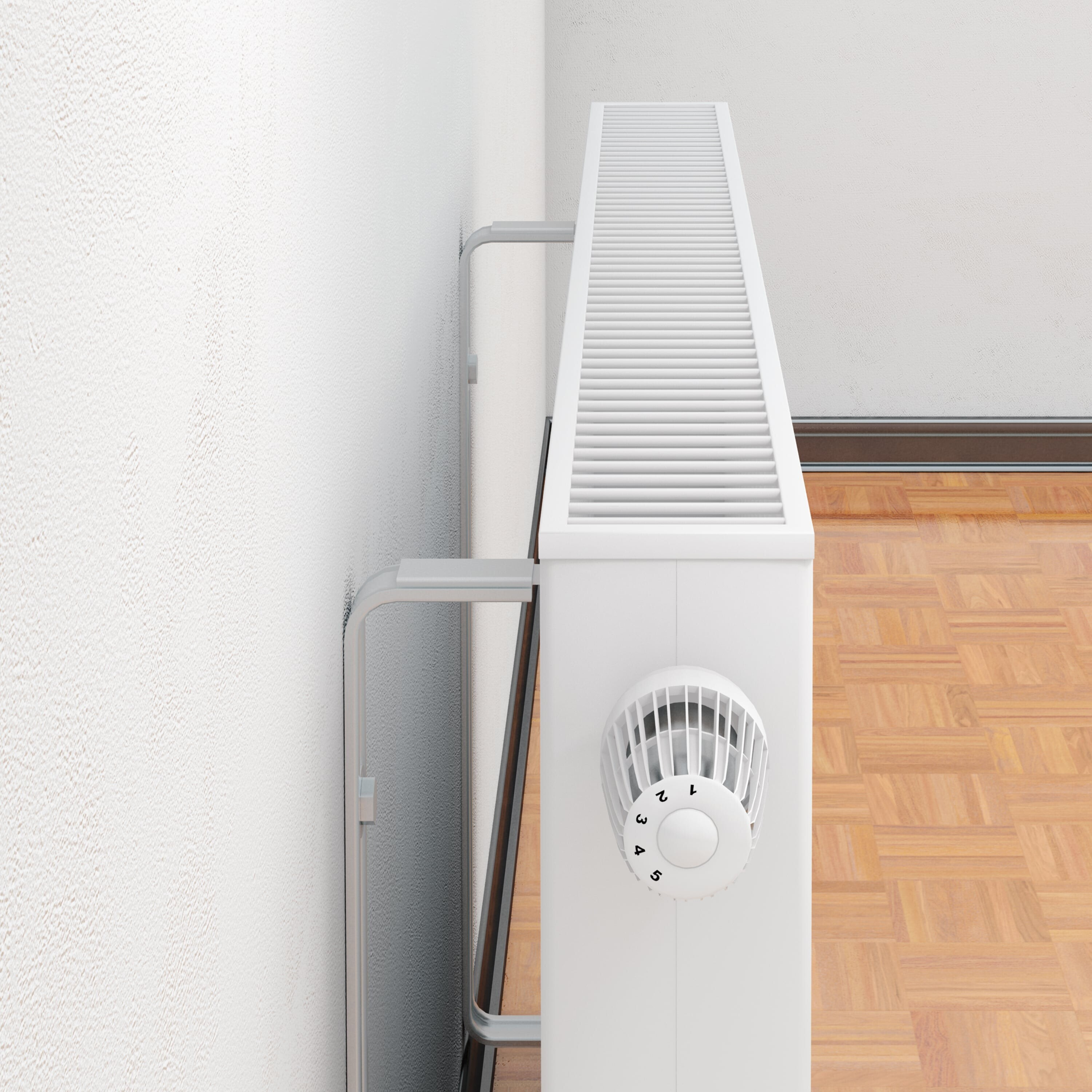

The System TRIx installation kit with all-purpose plug, screw and metal washer is optimally matched and is particularly suitable for fixing radiators, boilers, hot water heaters, etc.
The red TRIx is the original of all-purpose plugs.

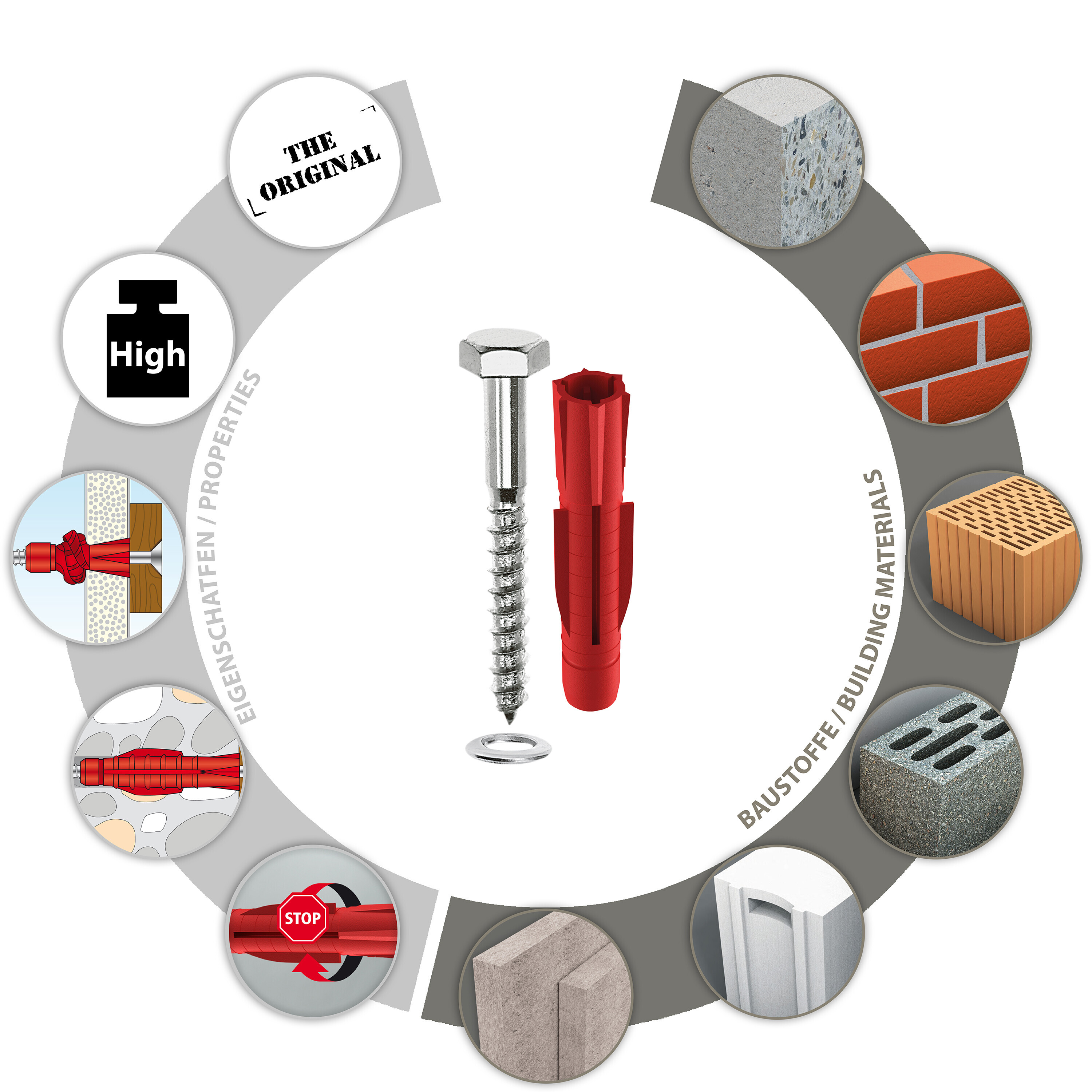

The red TRI is the original all-purpose plug and an excellent choice for DIY projects and professional applications. It offers high holding values, stability and is very easy to install, saving time. The plug is a real all-rounder, as it holds in almost all building materials and therefore covers a wide range of applications. Thanks to its triple-split plug body and special plastic, the all-purpose plug TRI knots or expands reliably depending on requirements. This makes it suitable for a wide variety of fixing projects in plasterboard, aerated concrete, concrete, solid brick, sand-lime brick and other materials. This plug can be used for push-through and push-through installation and the anti-rotation locks on the plug neck and plug body also prevent unwanted rotation in the drill hole.

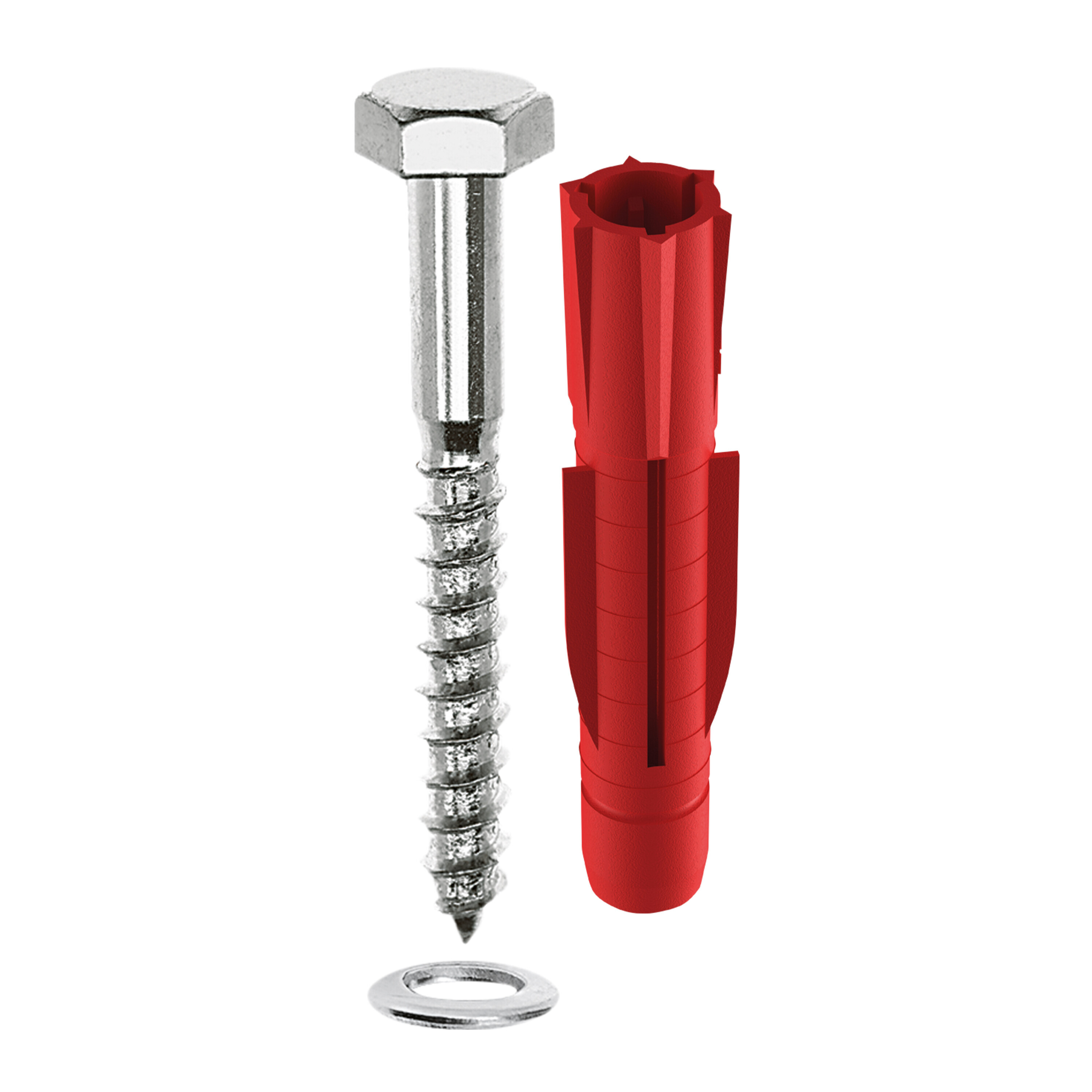

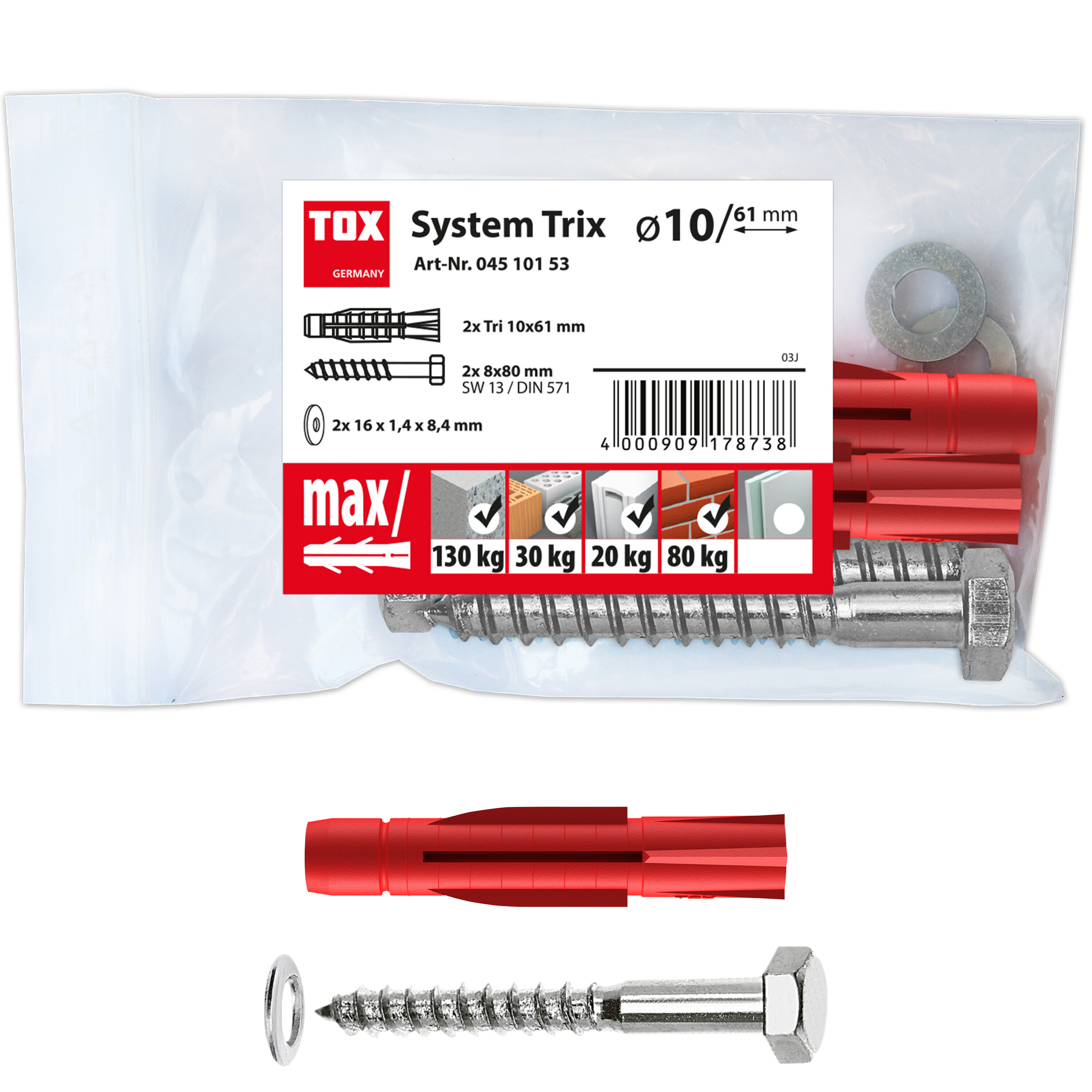

Supplied with 1 installation kit System TRIx with 2x all-purpose plug TRI 10/61, hexagon screw 8 x 80 mm (SW 13) and metal washer (DIN 125) in a bag.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 60 |
|---|---|
| Area of application: | Indoors |
| Diameter: | 10 |
| Diameter of included screw: | 8 |
| Drill diameter: | 10 |
| Drill hole depth: | 85 |
| Length of included screw: | 80 |
| Plug dimension: | 10 x 61 |
| Property: | Montagesätze |
| Beton C20/25 | 130 Kg |
|---|---|
| Vollstein MZ 12 | 80 Kg |
| Hochlochziegel ≥ Hlz12 Rohdichte 1 kg/dm³ | 35 Kg |
| Hohlblockstein ≥ Hbl2 | 30 Kg |
| Porenbeton ≥ PB2, PP2 | 20 Kg |
| Gipsfaserplatte 12,5 mm | 30 Kg |
Safety instructions
- The specified holding values refer to screws with the largest screw diameter
- The anchoring depth of the wall plug must be observed

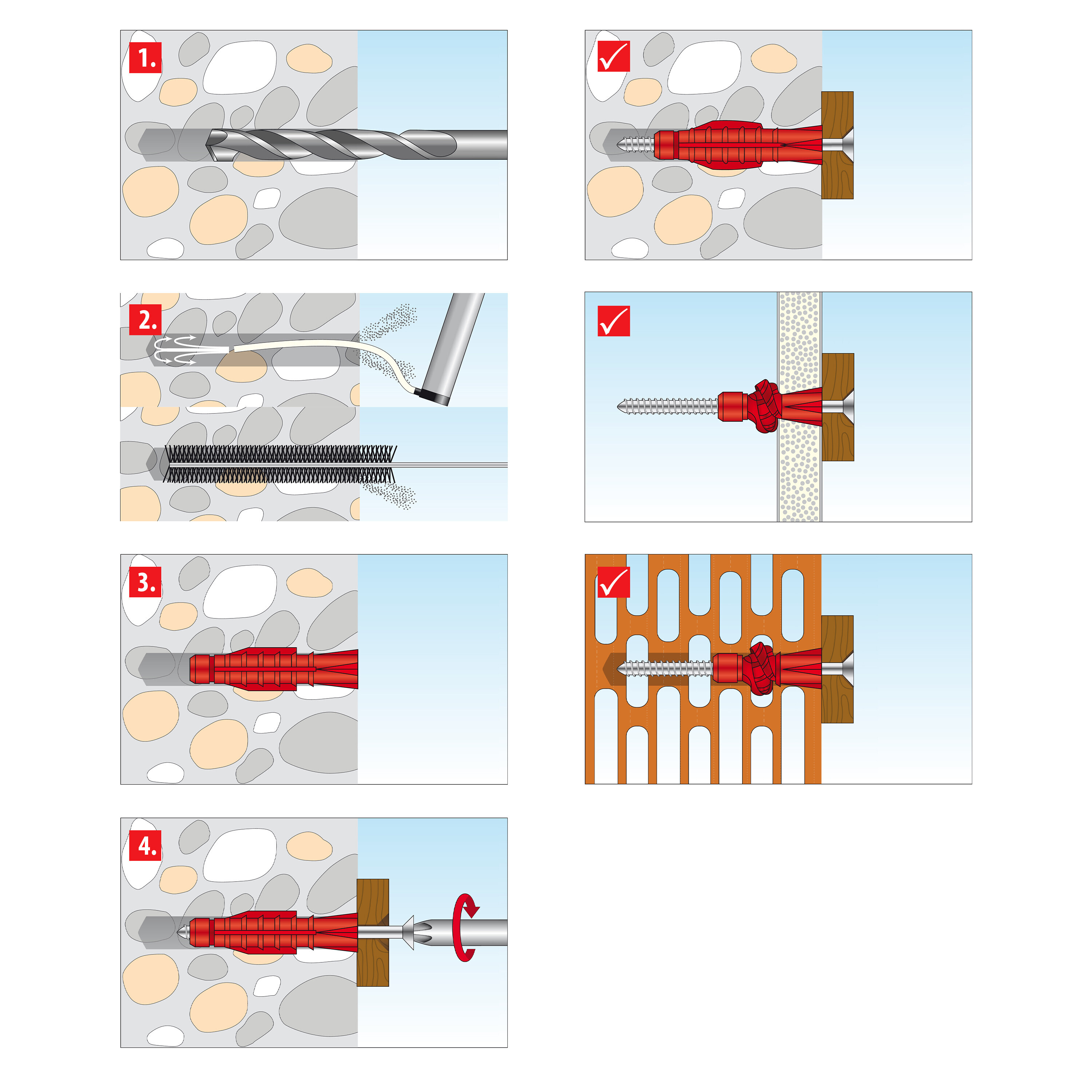

- Drilling method and drill hole cleaning must be adapted to the building material
- The recommended loads only apply to installation in the building material, not for installation in joints
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
