Sound insulation dowels
Sonic

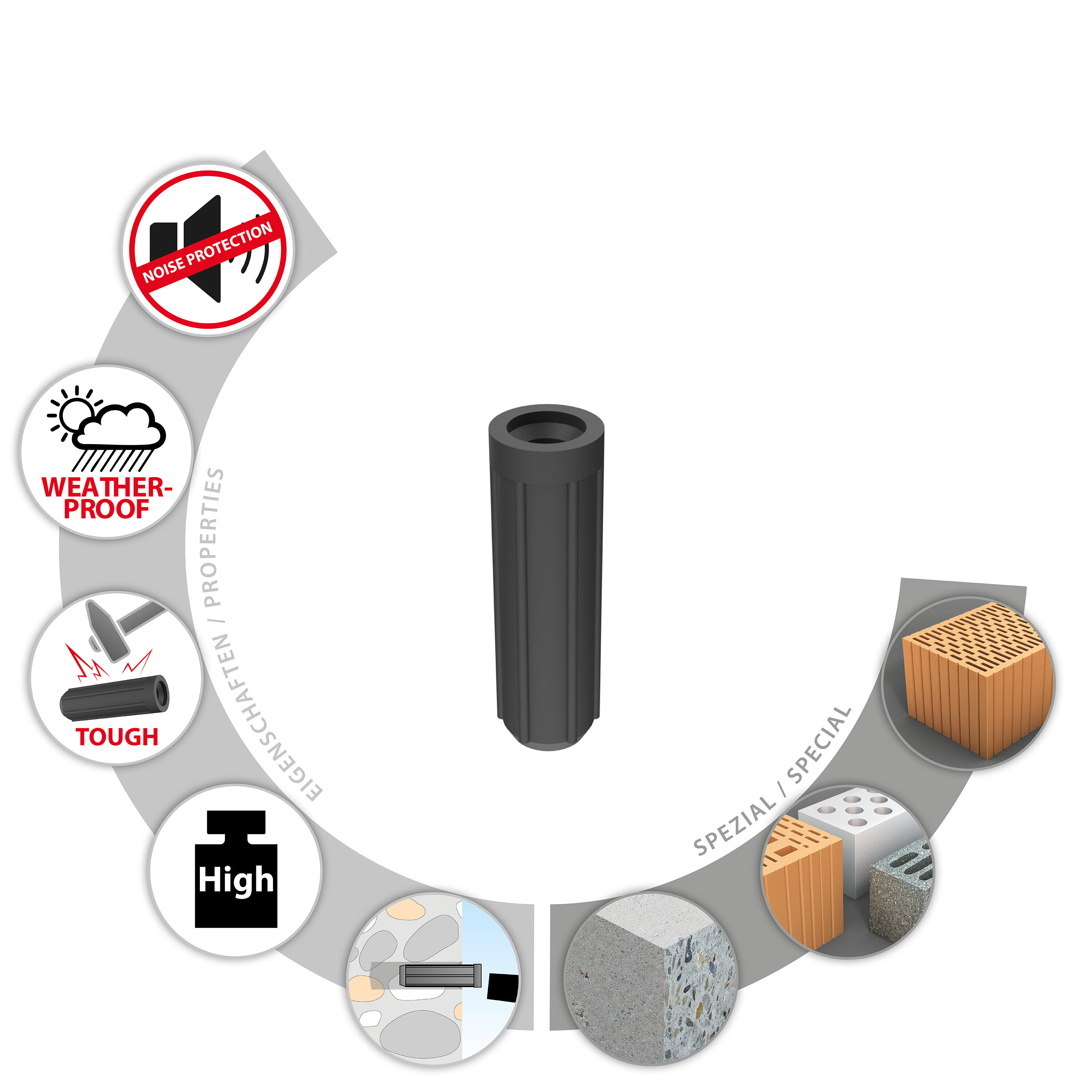

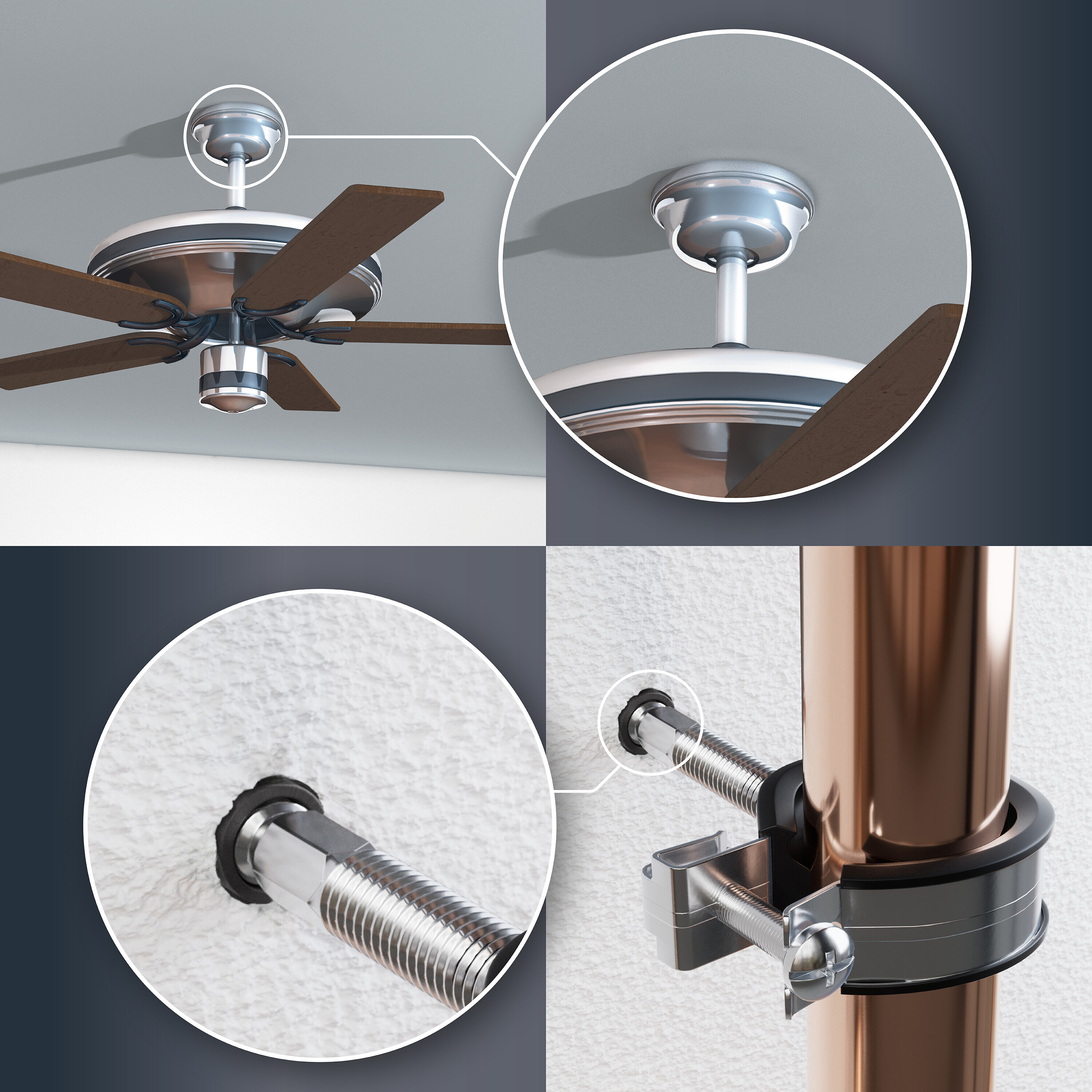

The TOX Sonic sound insulation anchor for substructures and sound-insulating constructions is suitable for many building materials, whether concrete, solid brick, lightweight concrete or sand-lime brick - the perfect fastening solution with high holding values for cable and pipe clamps, wall brackets for heating and air conditioning units, handrails or railings!

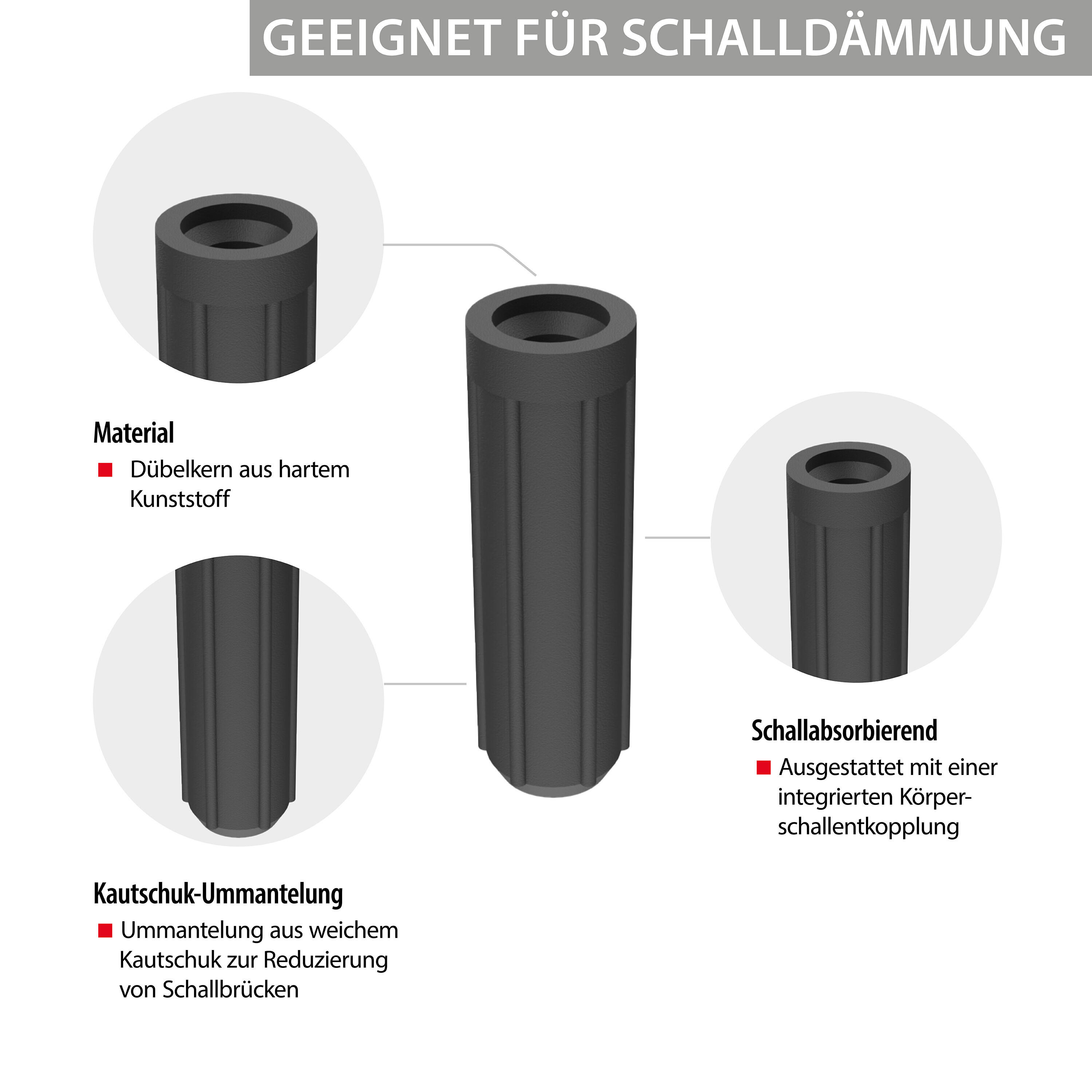

The high level of sound insulation and reduction of sound bridges is made possible by the soft rubber coating of the plug. Both indoors and outdoors as well as in adjacent living and office spaces, sound reduction is achieved and noise pollution is avoided. The plug for sound insulation is equipped with integrated structure-borne sound decoupling so that no additional decoupling elements need to be installed - this saves space and time in drywall and timber construction or in building services engineering! The sound insulation plug without collar is suitable for push-through installation and, thanks to its excellent screw guidance, is also suitable for screws with a wood thread.
The Sonic 16/60 sound insulation plug is supplied in a handy cardboard box containing 50 pieces.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 60 |
|---|---|
| Area of application: | Indoors |
| Clearance hole diameter: | 10 |
| Diameter: | 16 |
| Drill diameter: | 16 |
| Drill hole depth: | 70 |
| Plug dimension: | 16/60 |
| Property: | Schallschutzdübel |
| Suitable screw diameter: | 8-10 |
| Beton C20/25 | 80 Kg |
|---|---|
| Vollstein MZ 12 | 70 Kg |
Safety instructions

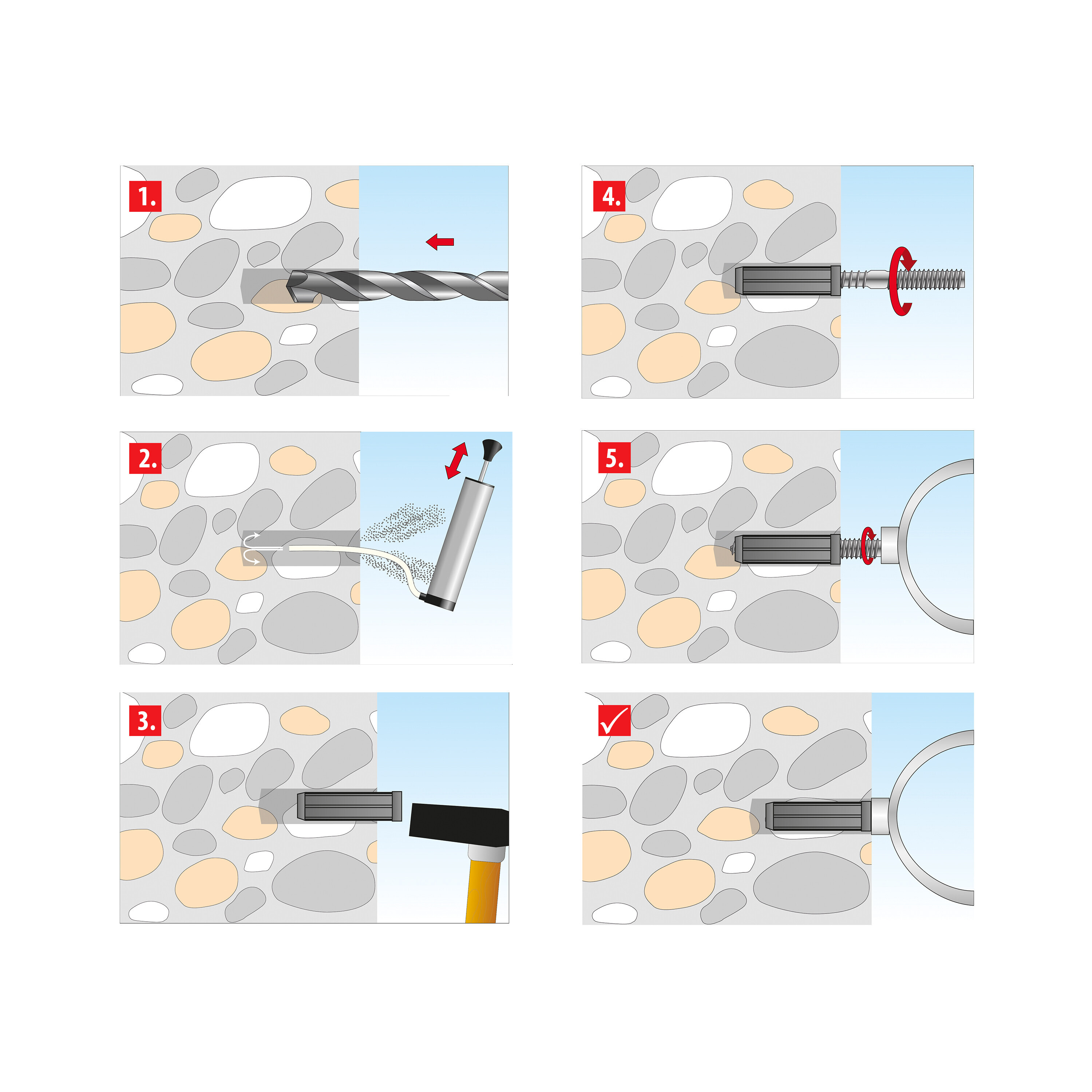

- Drilling method and drill hole cleaning must be adapted to the building material
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
