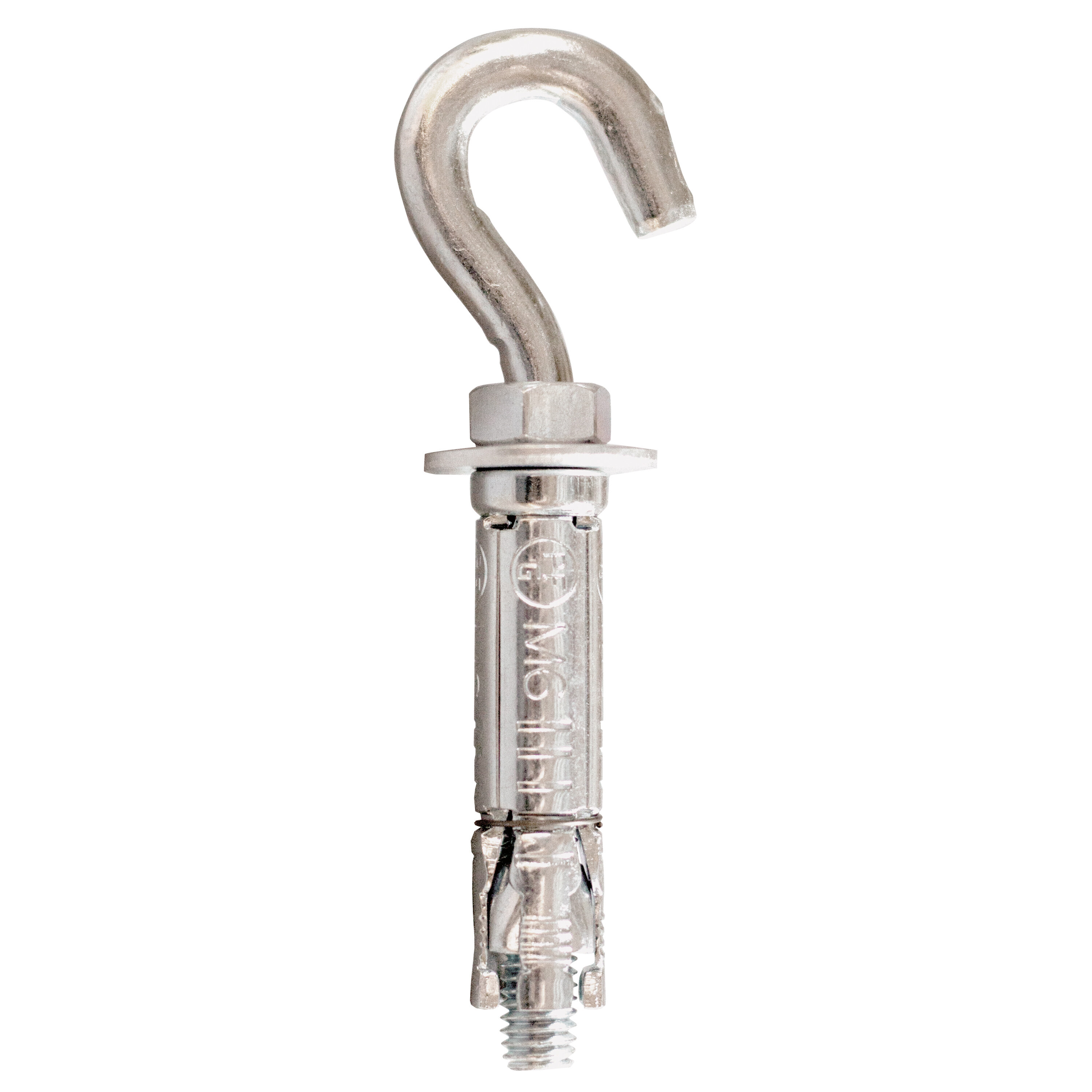

hook plug
Pirat Sven-S
Whether you are a DIY enthusiast or a professional craftsman: TOX Pirat Sven-S shield anchors offer reliable installations in concrete and solid brick with a dense structure. The hook plug with open eye is suitable for temporary and permanent fixings, e.g. for barrier chains or hammocks. The hook screw can be loosened and tightened without having to remove the plug!
The heavy-duty shield anchor offers a stable and sophisticated design and is not only equipped with a robust anchor sleeve made of zinc-plated steel, but also with four integrated expansion wings that provide an extra-strong hold. The shield anchor is suitable for pre-positioned installation and can also be easily removed again for a high degree of flexibility in use.

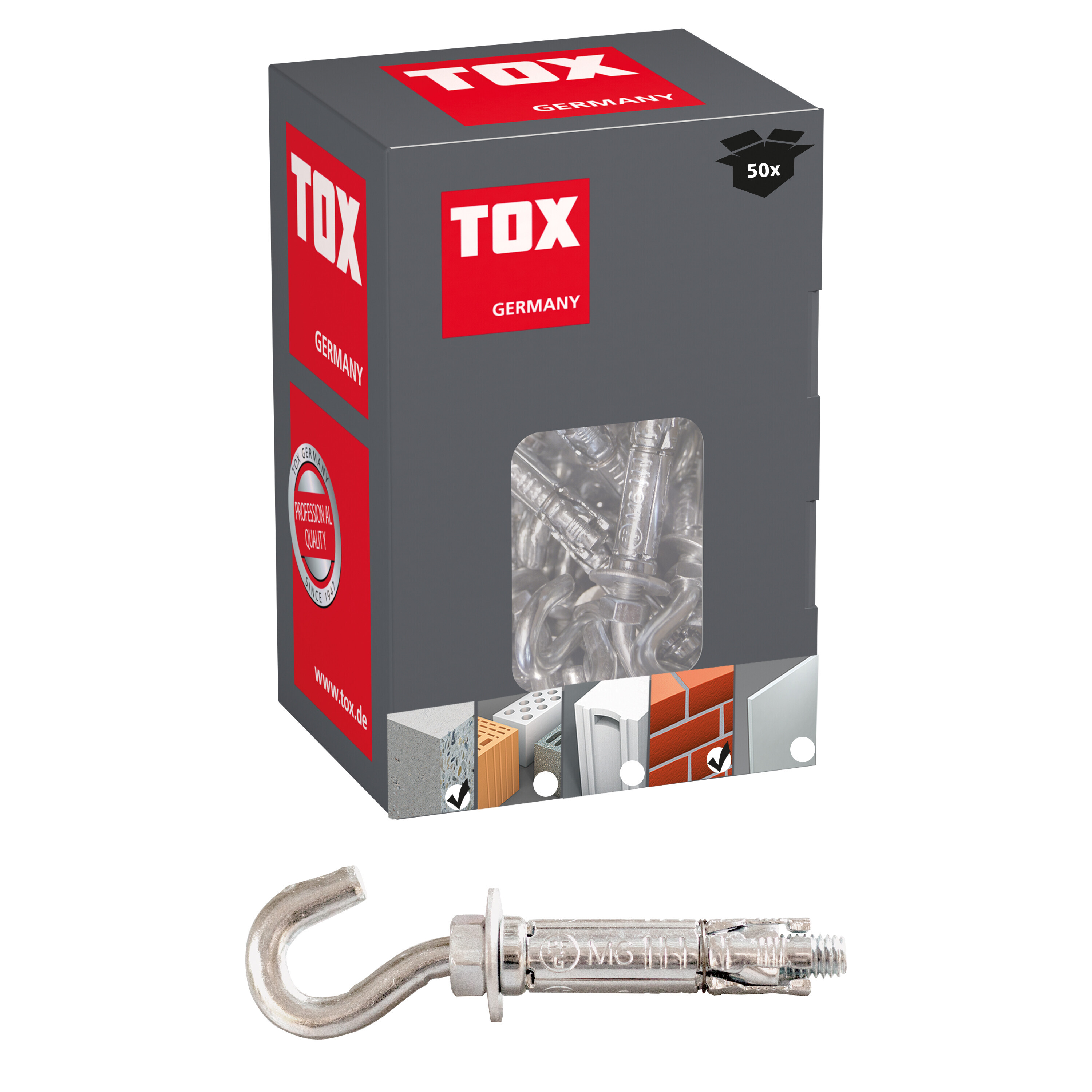

The Pirat Sven-S M6/40 shield anchor, consisting of the HAC heavy-duty anchor and Sven-S hook screw with open eye, is supplied in a handy cardboard box containing 50 pieces: this guarantees that everything is neatly stowed away, can be transported safely and is quickly to hand.
About TOX
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 40 |
|---|---|
| Area of application: | Indoors |
| Diameter: | M6 |
| Drill diameter: | 12 |
| Drill hole depth: | 45 |
| Plug dimension: | M6 x 40 |
| Property: | Hakendübel |
| Tightening torque: | 10 |
| Beton C20/25 | 80 Kg |
|---|
Safety instructions
- The anchoring depth of the wall plug must be observed
- Drilling method and drill hole cleaning must be adapted to the building material
- The recommended loads only apply to installation in the building material, not for installation in joints
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
- *only for solid masonry with dense structure / holding values depend on building material
