hook plug
Pirat Skippi-S

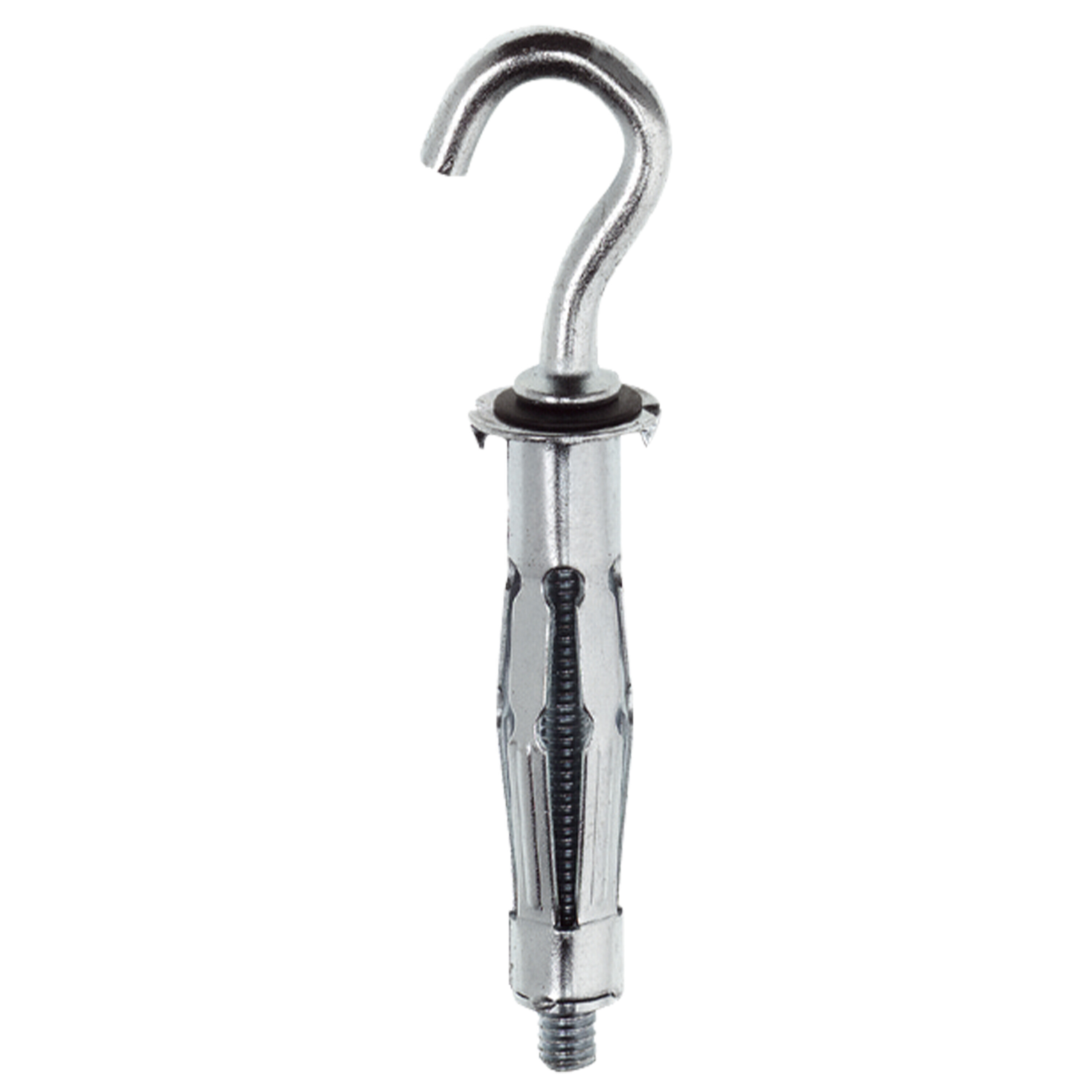

The TOX Pirat Skippi-S M5 x 52 mm metal hook plug with Acrobat cavity plug and metric hook screw with round hook for single-layer plasterboard, gypsum fibre and chipboard with only shallow cavity depths - ideal for securely fixing hanging lamps, hanging baskets or hanging baskets, for example!

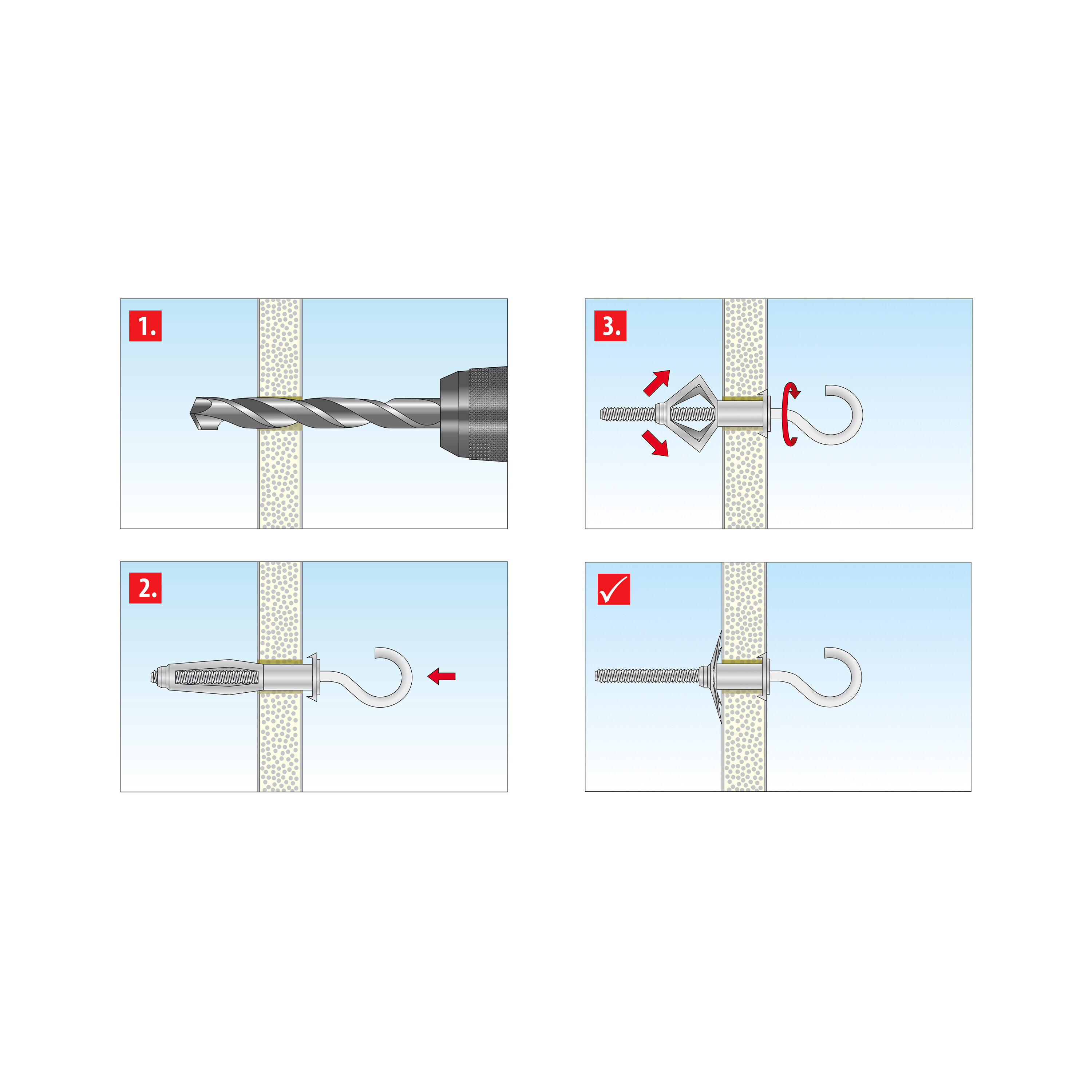

With the Acrobat Speed XL mounting pliers, the zinc-plated metal cavity plug can be tightened particularly quickly (can also be installed without). When setting, the expansion segments cover a large area on the back of the panel and ensure high holding values - these can be pressed back into their original shape if required, e.g. for tiles. The anti-rotation locks on the plug cap prevent rotation in the building material and the hook screw can be loosened and tightened without removing the plug. The cavity plug is suitable for pre-positioned installation and is reliable even under extreme conditions thanks to its fire resistance in accordance with DIN 4102 (class A1).

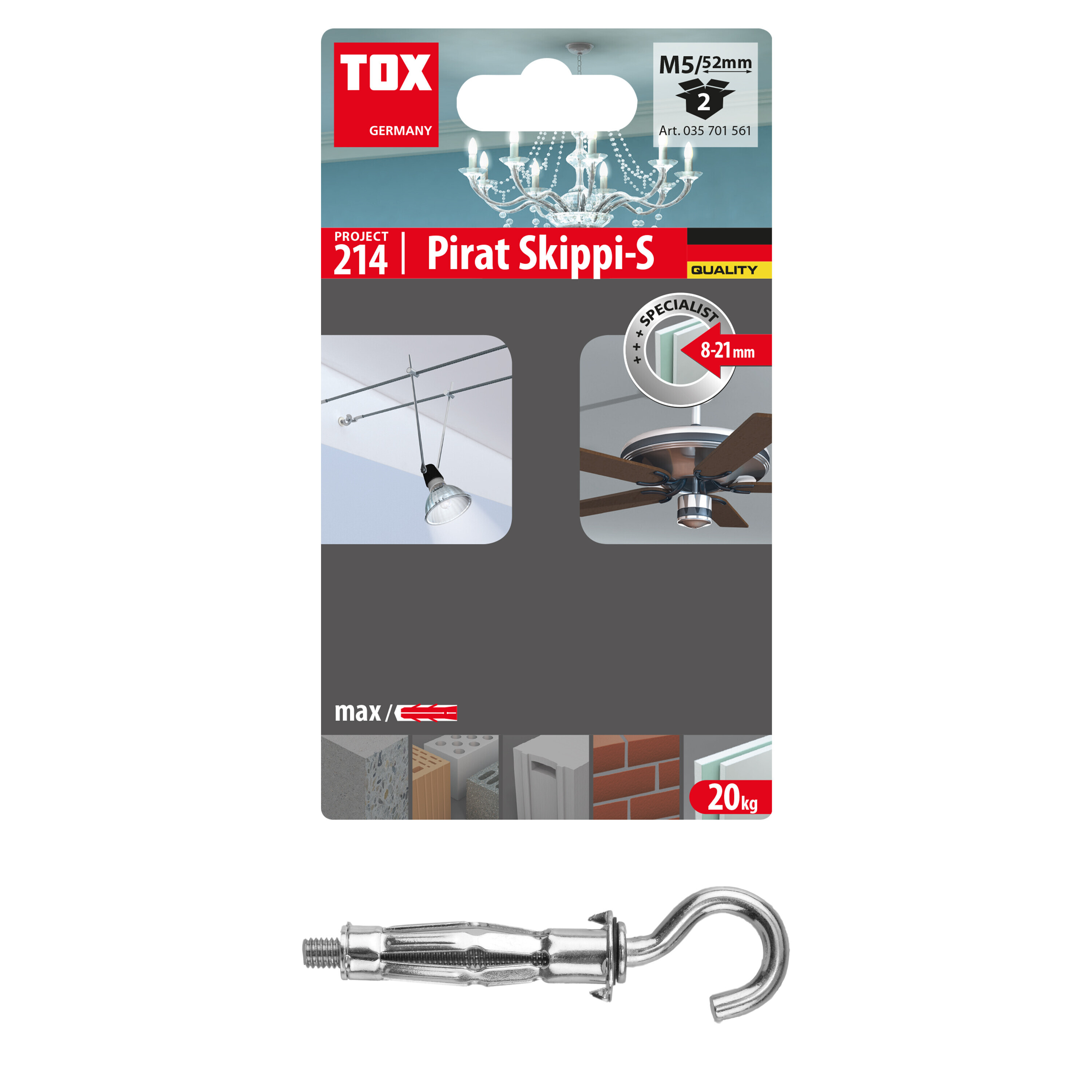

The TOX metal hook anchor Pirat Skippi-S is supplied with 2x metal cavity anchor Acrobat 10 x 52 mm incl. hook screw with angle hook M5 x 89 mm in a blister pack.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Area of application: | Indoors |
|---|---|
| Diameter: | 10 |
| Drill diameter: | 10 |
| Length of included screw: | 68 |
| Minimum cavity depth: | 48 |
| Panel thickness: | 7-18 |
| Plug dimension: | 10 x 52 |
| Property: | Hakendübel |
| Gipskartonplatte 9,5 mm | 15 Kg |
|---|---|
| Gipskartonplatte 12,5 mm | 20 Kg |
| Gipsfaserplatte 12,5 mm | 30 Kg |
| Holzspan/Sperrholzplatte | 30 Kg |
Safety instructions
- For fastenings in gypsum plasterboards, the holding value specifications of the board manufacturer must always be observed
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
