hook plug
Pirat Skippi-L

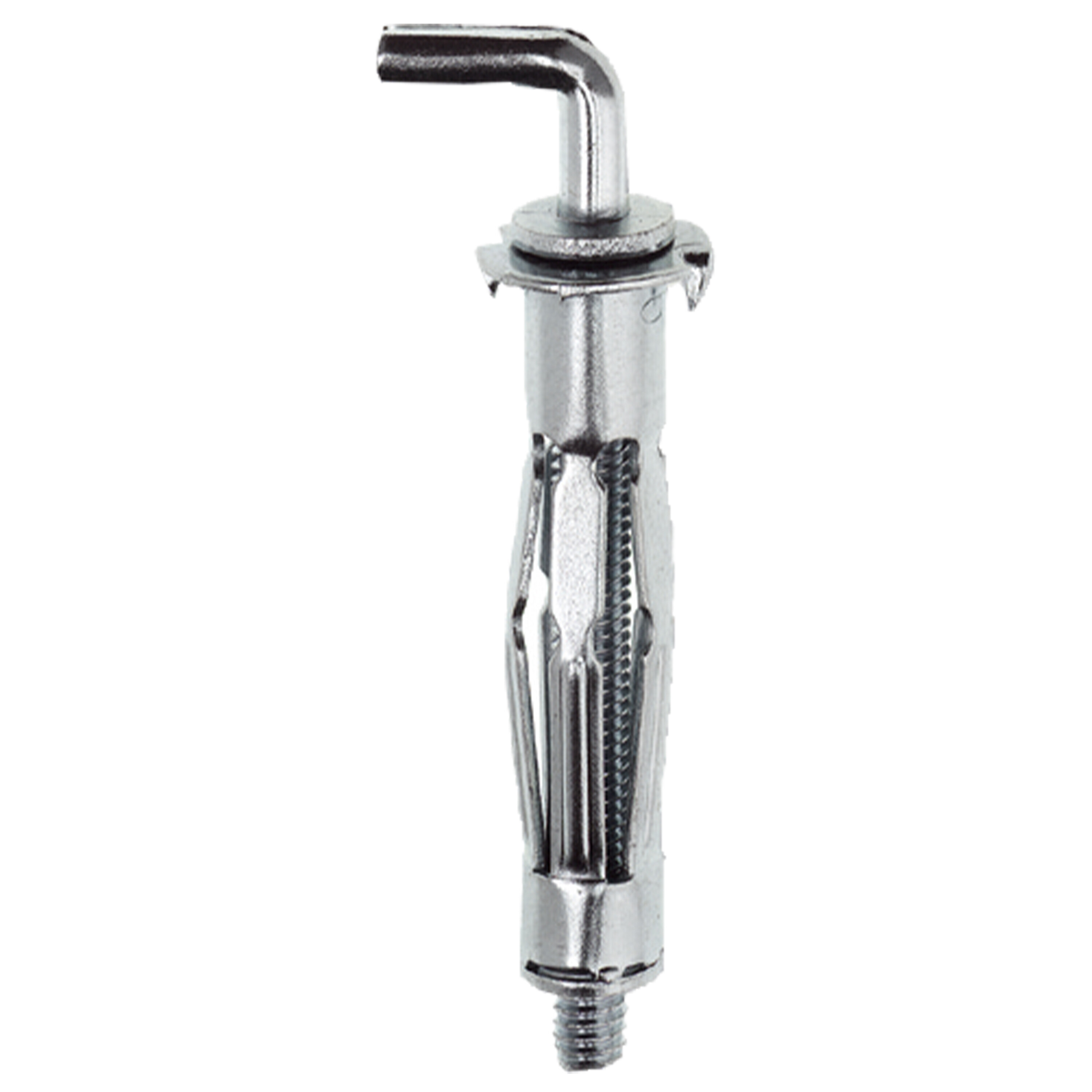

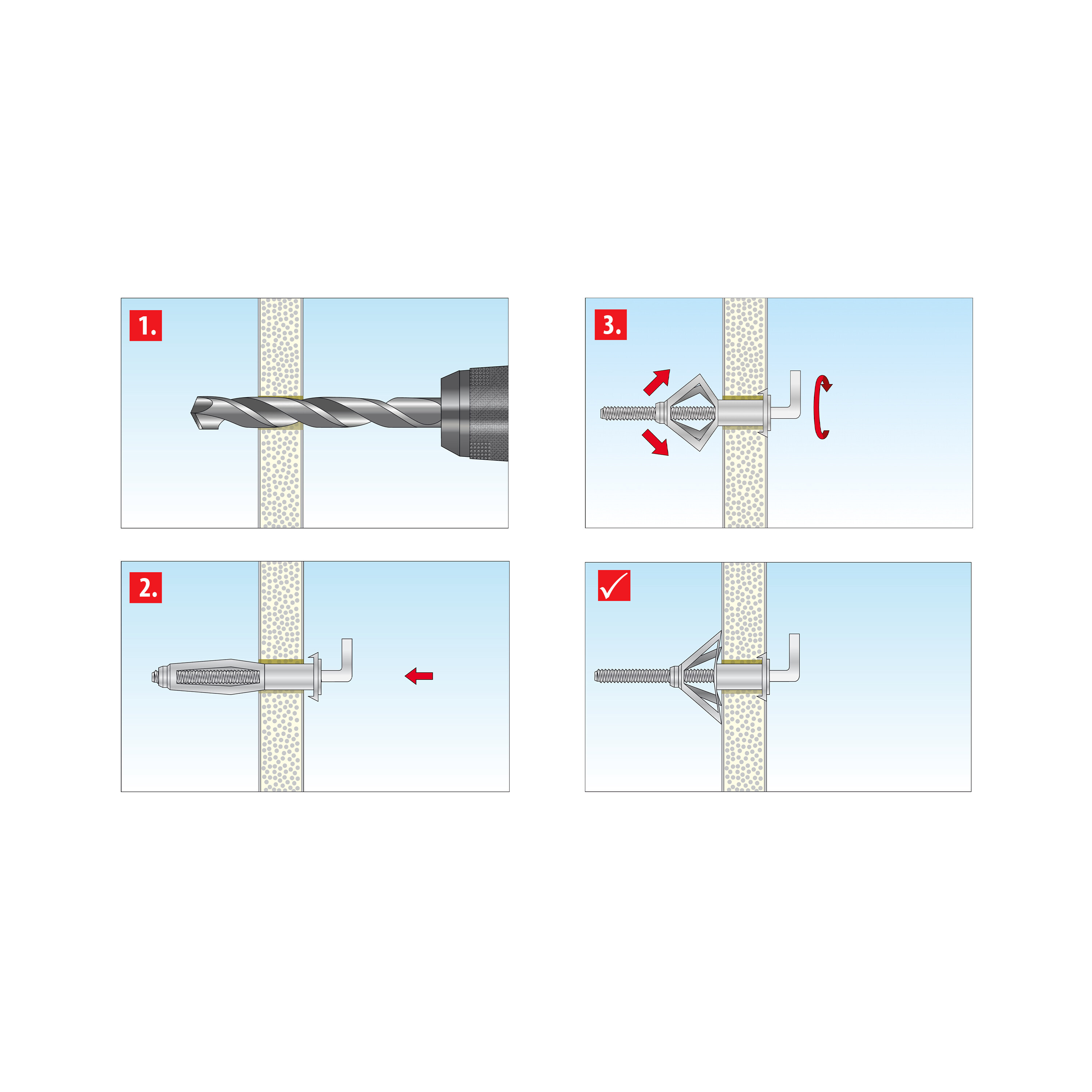

The TOX Acrobat cavity plug with Pirat Skippi-L hook is suitable for the quick and easy installation of wall units, ceiling lights, TV sets etc. with low cavity depths. It can be used with single-layer wall panels and is equipped with a zinc-plated metal cavity plug and a metric hook screw. The plug cap with anti-rotation lock prevents unwanted rotation in the building material. The hook screw can be loosened and tightened without having to remove the plug. When the plug is set, the expansion segments cover a large area on the back of the panel and provide reliable anchorage.
The TOX Acrobat metal cavity plug with hook is supplied in a handy blister with 2x plugs including pre-assembled Pirat Skippi-L M5/37 hook screw
.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Diameter: | M5 |
|---|---|
| Diameter of included screw: | M5 |
| Minimum cavity depth: | 37 |
| Panel thickness: | 6-13 |
| Plug dimension: | M5x52 |
| Property: | Hakendübel |
| Gipskartonplatte 9,5 mm | 15 Kg |
|---|---|
| Gipskartonplatte 12,5 mm | 20 Kg |
| Gipsfaserplatte 12,5 mm | 30 Kg |
| Holzspan/Sperrholzplatte | 30 Kg |
Safety instructions
- For fastenings in gypsum plasterboards, the holding value specifications of the board manufacturer must always be observed
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
The TOX Acrobat cavity plug with Pirat Skippi-L hook is suitable for the quick and easy installation of wall units, ceiling lights, TV sets etc. with low cavity depths. It can be used with single-layer wall panels and is equipped with a zinc-plated metal cavity plug and a metric hook screw. The plug cap with anti-rotation lock prevents unwanted rotation in the building material. The hook screw can be loosened and tightened without having to remove the plug. When the plug is set, the expansion segments cover a large area on the back of the panel and provide reliable anchorage.
The TOX Acrobat metal cavity plug with hook is supplied in a handy blister with 2x plugs including pre-assembled Pirat Skippi-L M5/37 hook screw
.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Diameter: | M5 |
|---|---|
| Diameter of included screw: | M5 |
| Minimum cavity depth: | 37 |
| Panel thickness: | 6-13 |
| Plug dimension: | M5x52 |
| Property: | Hakendübel |
| Gipskartonplatte 9,5 mm | 15 Kg |
|---|---|
| Gipskartonplatte 12,5 mm | 20 Kg |
| Gipsfaserplatte 12,5 mm | 30 Kg |
| Holzspan/Sperrholzplatte | 30 Kg |
Safety instructions
- For fastenings in gypsum plasterboards, the holding value specifications of the board manufacturer must always be observed
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
