hook plug
Pirat Longbird-S

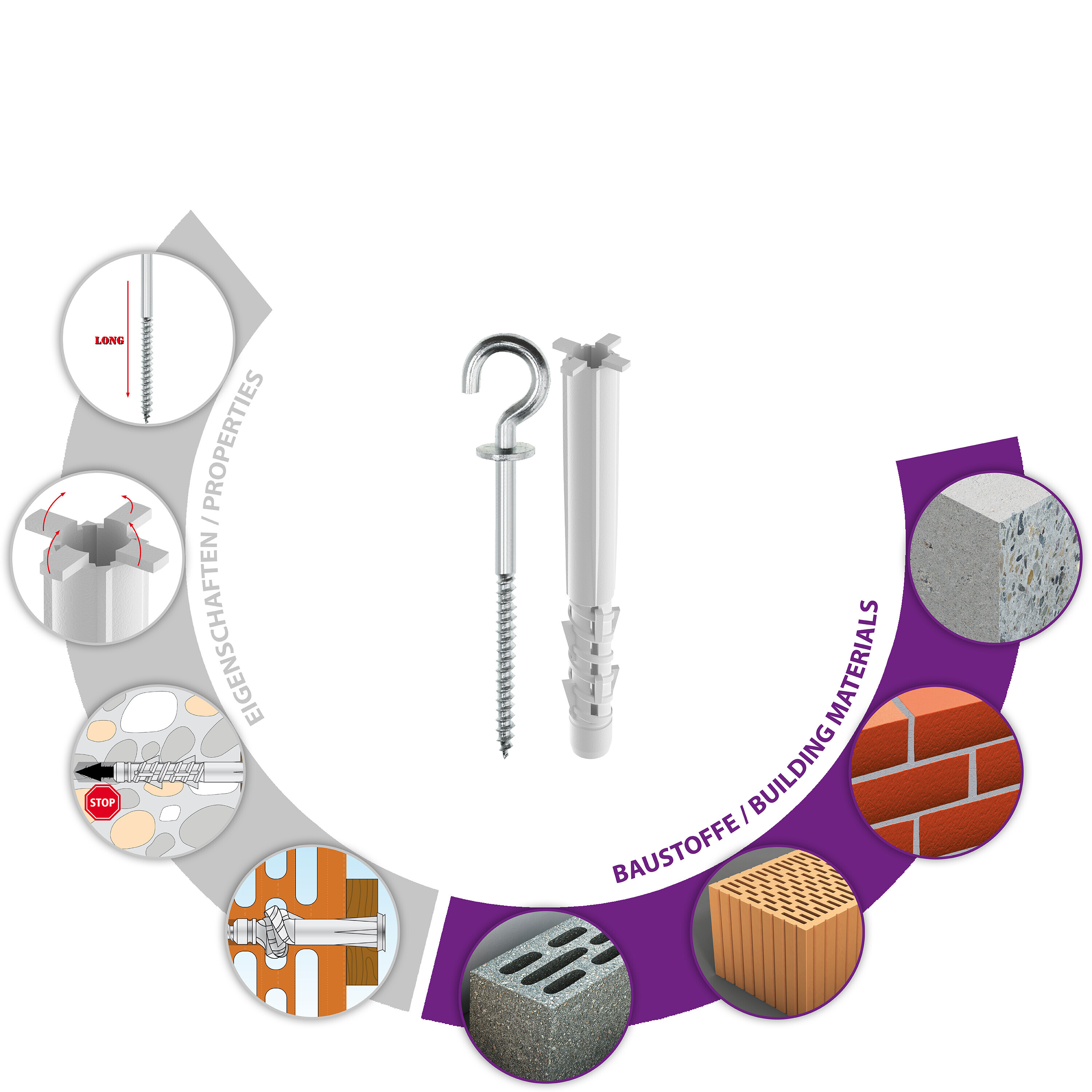

Whether you are a DIY enthusiast or a professional craftsman: TOX Pirat Longbird-S hook plugs offer reliable fixings in almost all building materials such as aerated concrete, solid brick, concrete, vertically perforated brick and hollow brick. The hook plug can be used for attaching hanging lamps, hanging baskets or hanging baskets, for example, thanks to the hook screw with open eyelet and the fixing for securing the function of the all-purpose plug.
The Tetrafix XL reliably and safely combines the properties of an all-purpose and frame plug - it can be used in almost all building materials and can easily bridge thick, non-load-bearing layers. It is also very suitable for deep-set anchorages in aerated concrete. The all-purpose frame plug knots or expands automatically in the building material. The reversible plug cap prevents it from slipping deeper into the drill hole and the spiral shape enables high holding values. In addition, anti-rotation locks on the plug neck ensure that the plug does not rotate in the building material.

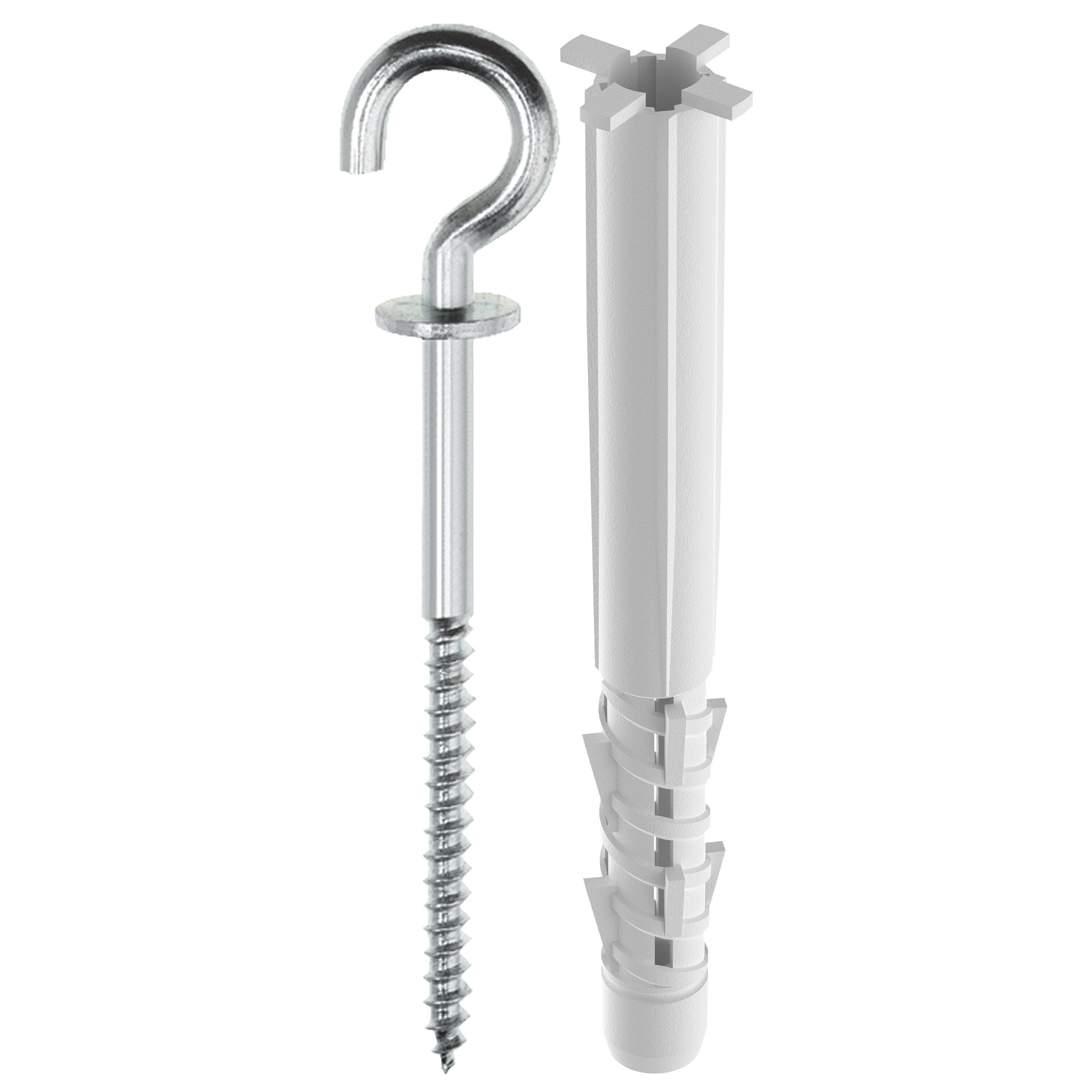

The Pirat Longbird-S hook plug is supplied with 2x Tetrafix XL 8/80 all-purpose frame plug and Longbird-S hook screw with open eye each in a handy blister pack.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 50 {70} |
|---|---|
| Area of application: | Indoors |
| Diameter: | 8 |
| Diameter of included screw: | 6 |
| Drill diameter: | 8 |
| Drill hole depth: | 90 |
| Length of included screw: | 115 |
| Plug dimension: | 8 x 80 |
| Property: | Hakendübel |
| Beton C20/25 | 20 Kg |
|---|---|
| Vollstein MZ 12 | 20 Kg |
| Hochlochziegel ≥ Hlz12 Rohdichte 1 kg/dm³ | 20 Kg |
| Porenbeton ≥ PB2, PP2 | 15 Kg |
Safety instructions

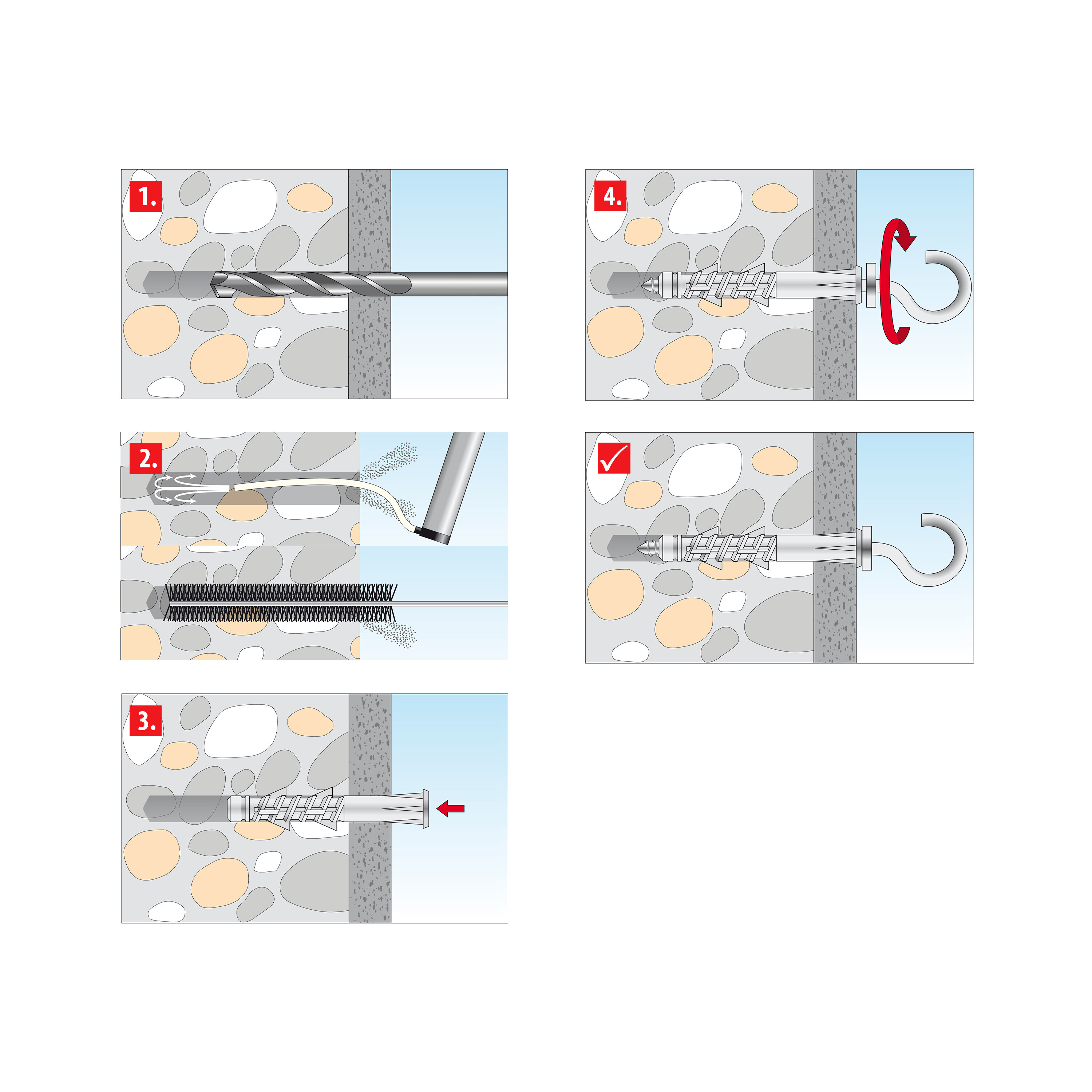

- The anchoring depth of the wall plug must be observed
- Drilling method and drill hole cleaning must be adapted to the building material
- The recommended loads only apply to installation in the building material, not for installation in joints
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
