hook plug
Pirat Leslie-L
Product information "Pirat Leslie-L"

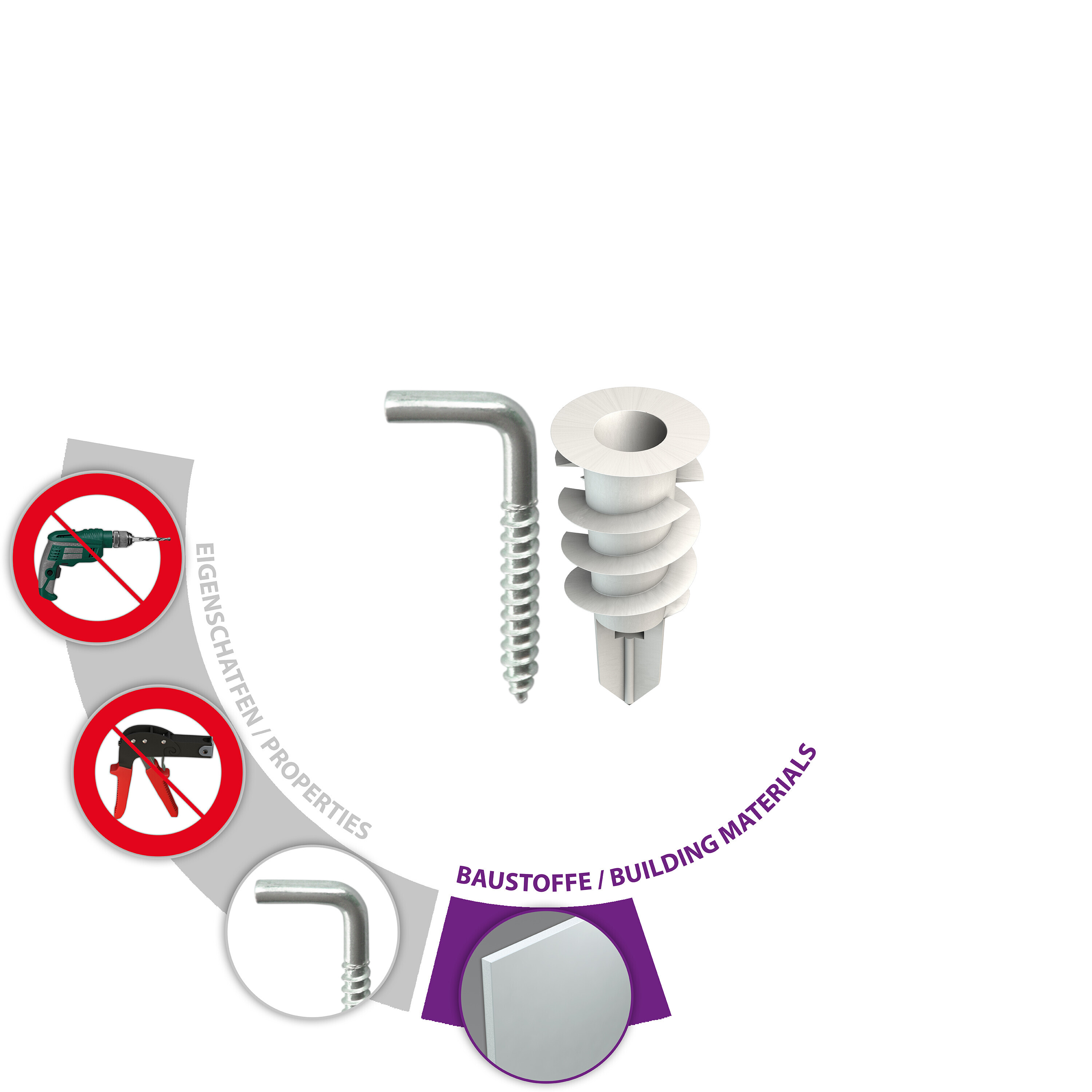

Properties
- Without pre-drilling: In single-layer gypsum plasterboard
- No special tools required
- Screw in directly
- High holding values of up to 8 kg per fixing point in gypsum plasterboard
- Anti-rotation lock

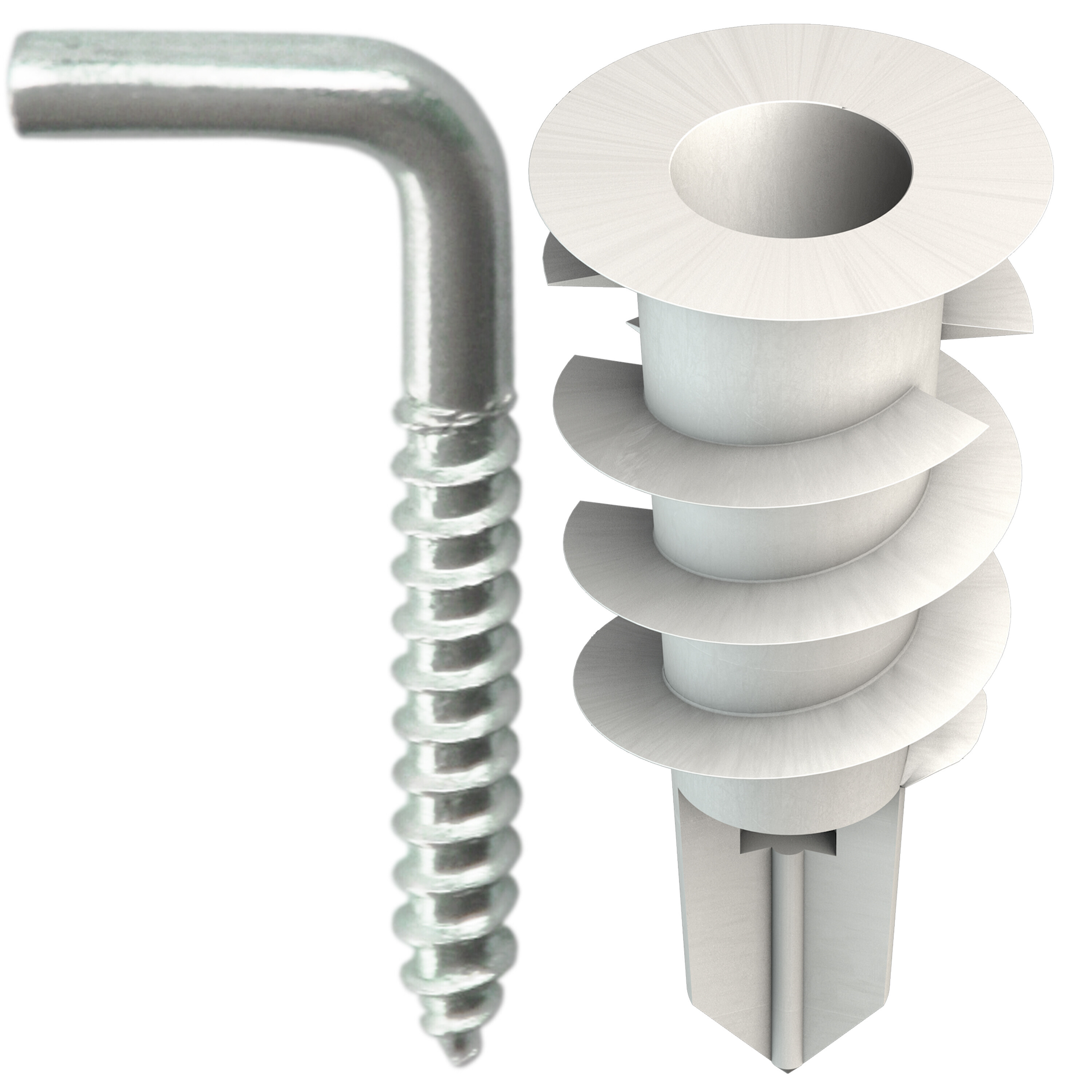

- With hook screw
Description and area of application
- Glass fiber reinforced plasterboard plug
- Reinforced centering tip for easy installation without additional setting tools
- For single-layer gypsum plasterboard
- Not suitable for gypsum plasterboard and tiled gypsum plasterboard
- Low space requirement behind the panel due to short plug length
- PZ2 drive for easy installation

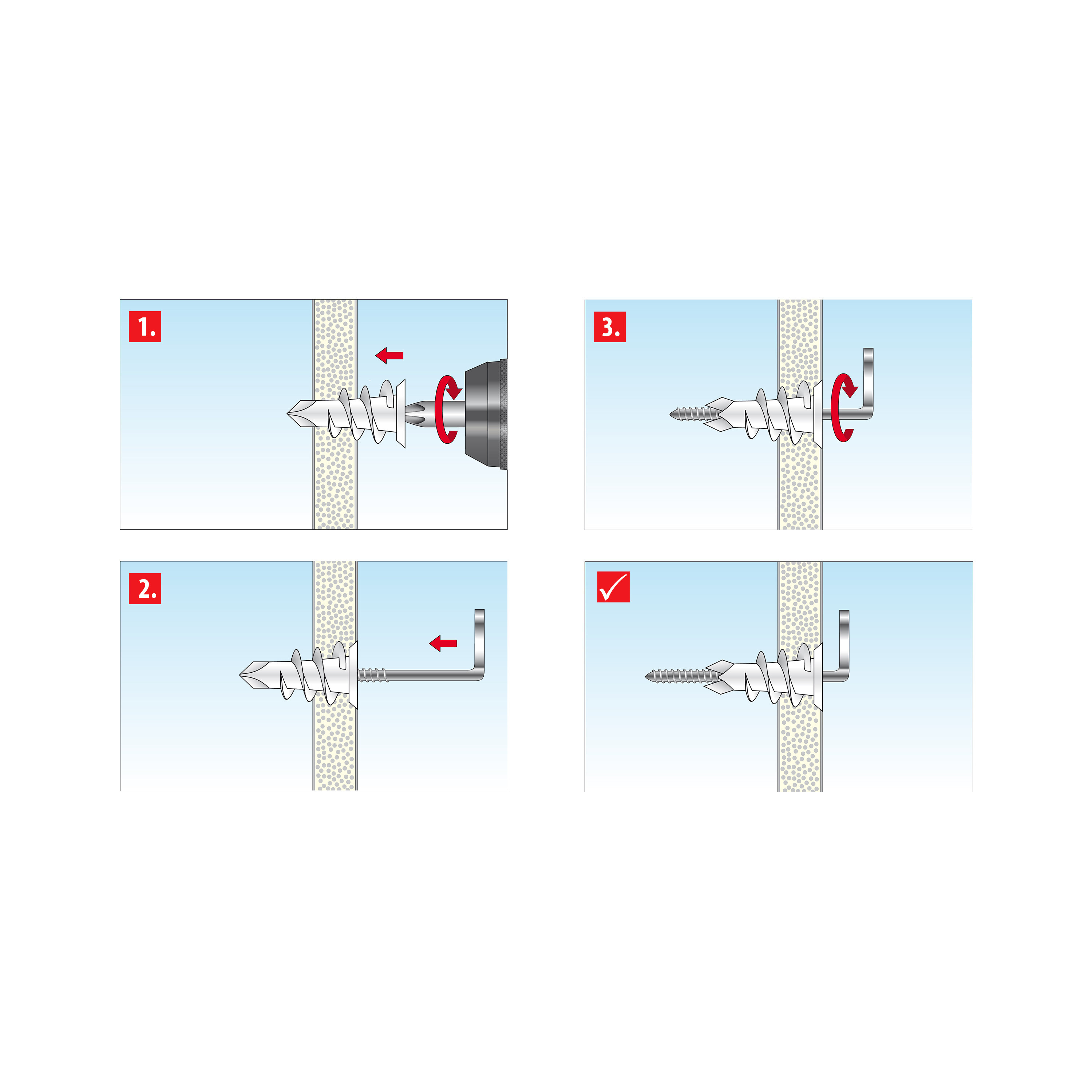

Processing and installation
- Punch the gypsum plasterboard with the drill tip before screwing in
- Pre-positioned installation
Building materials
- Gypsum plasterboard
| Area of application: | Indoors |
|---|---|
| Diameter of included screw: | 4 |
| Length of included screw: | 35 |
| Minimum cavity depth: | 23 |
| Panel thickness: | 20 |
| Plug dimension: | 32 |
| Property: | Hakendübel |
| Gipskartonplatte 9,5 mm | 7 Kg |
|---|---|
| Gipskartonplatte 12,5 mm | 8 Kg |
Safety instructions
- For fastenings in gypsum plasterboards, the holding value specifications of the board manufacturer must always be observed
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
