Hook wall plug
Pirat Eddi-S
Product information "Pirat Eddi-S"
Properties
- Automatic toggle wall plug
- With open round hook
- For bridging large wall thicknesses
- For single and double sheet wall boards
- Self-expanding
Description and field of application

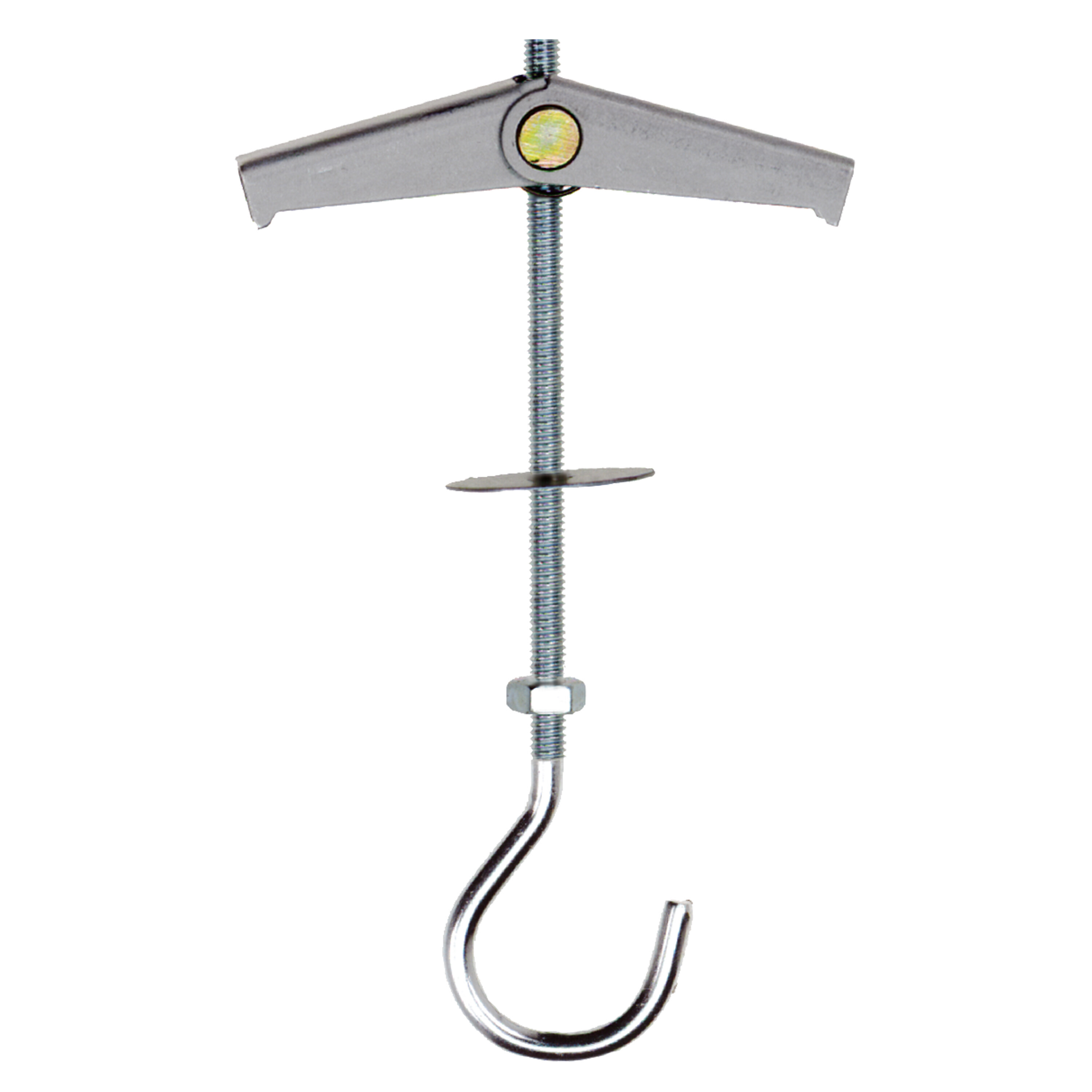

- Galvanised metal cavity toggle with two folding wings, metric thread hook, metal washer and hexagon nut

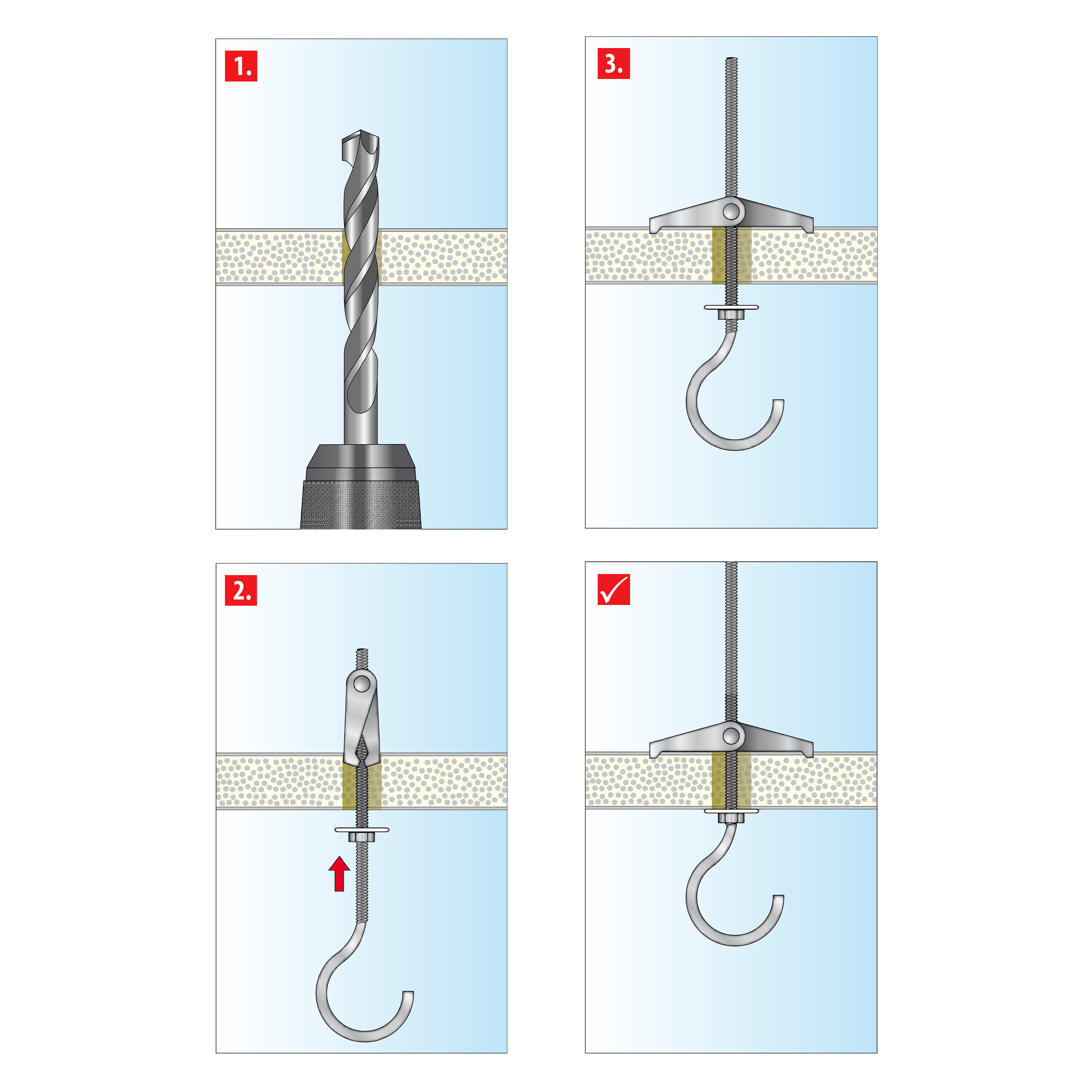

Processing and assembly
- Observe the minimum cavity depth, board thickness and drill Ø (see table on the left)
- Observe the vertical installation position for wall installations
- Pre-positioned installation
Area of application: | Indoors |
---|---|
Diameter: | M3 |
Panel thickness: | 25 |
Screw type: | Lifting eyebolt |
TOXBeschreibung2: | Hakendübel |
Safety instructions
- For fastenings in gypsum plasterboards, the holding value specifications of the board manufacturer must always be observed
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
