hook plug
Pirat Bill-XL

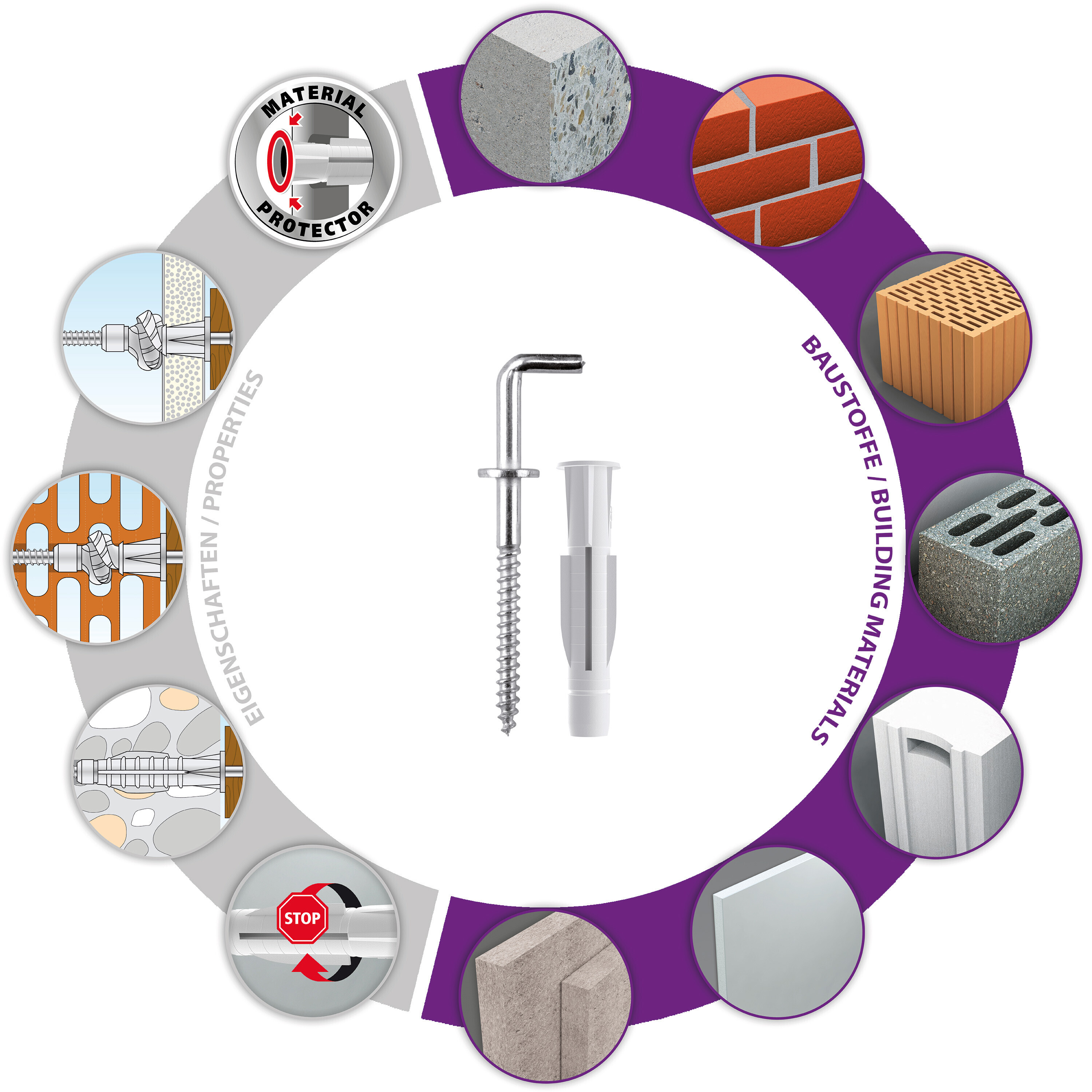

Whether you are a DIY enthusiast or a professional craftsman: TOX hook plug Pirat Bill-XL offers reliable fixings in almost all building materials such as plasterboard, aerated concrete, concrete, solid brick, sand-lime brick and other materials. The hook plug can be used for attaching bathroom cabinets, picture frames or wall clocks, for example, thanks to the hook screw with a long angle hook and a beffe to secure the function of the all-purpose plug.
The TRIKA all-purpose plug offers a high load-bearing capacity, stability and is very easy to install, which saves time. Thanks to its triple-split plug body and special plastic, the all-purpose plug TRIKA knots or expands reliably depending on requirements, making it suitable for a wide variety of fixing projects. The plug cap enables easy pre-positioned installation as it protects the surface and also prevents it from slipping deeper into the drill hole. This makes installation of the plug quick and easy. The anti-rotation locks on the plug neck and plug body also prevent unwanted rotation in the drill hole.

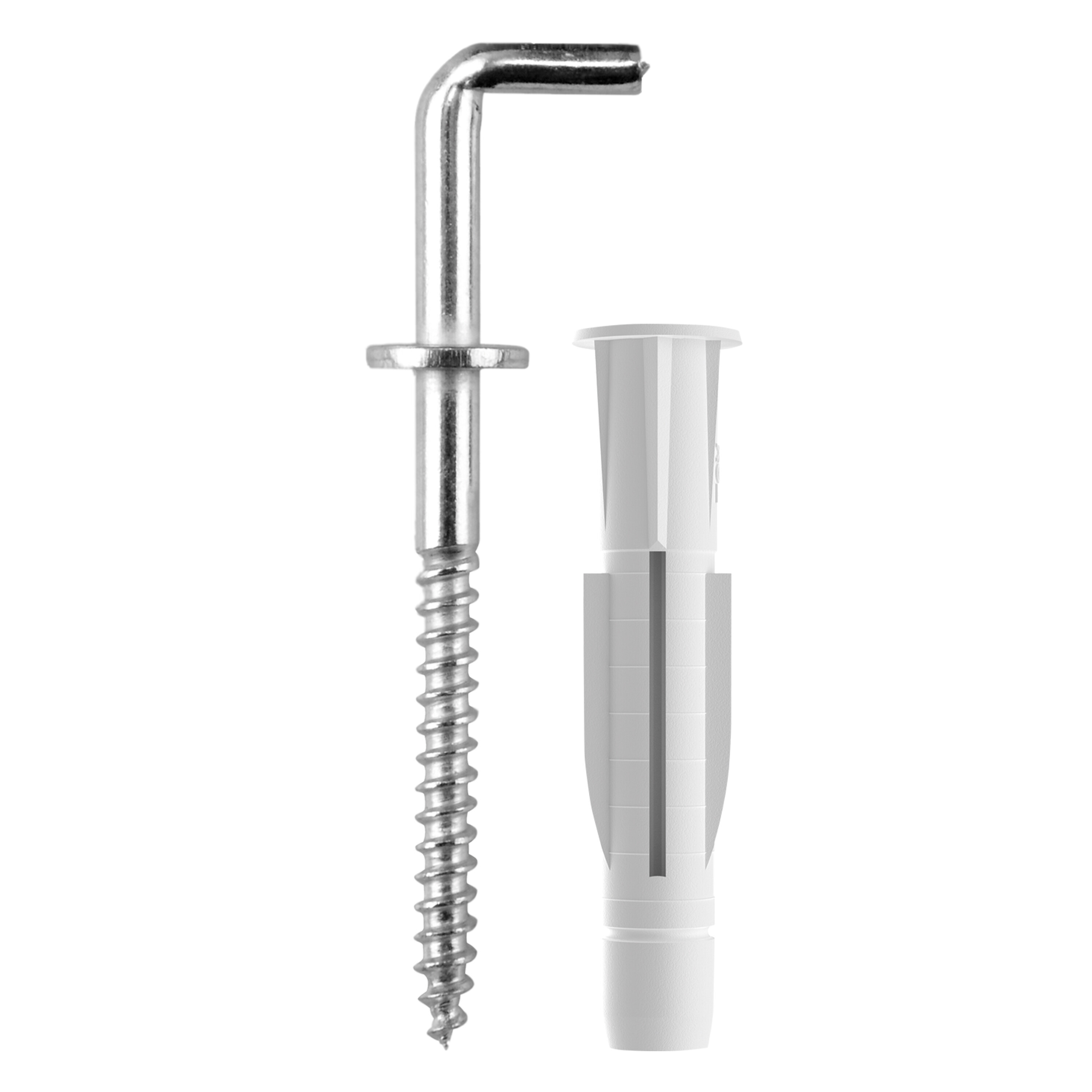

The Pirat Bill-XL hook plug is supplied with 4x TRIKA all-purpose plugs and hook screws with long Bill-XL angle hooks in a handy blister pack.
The Pirat Bill-XL hook plug is supplied in a handy blister pack.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 51 |
|---|---|
| Area of application: | Indoors |
| Diameter: | 8 |
| Diameter of included screw: | 5 |
| Drill diameter: | 8 |
| Drill hole depth: | 70 |
| Length of included screw: | 80 |
| Plug dimension: | 8 x 51 |
| Property: | Hakendübel |
| Beton C20/25 | 15 Kg |
|---|---|
| Vollstein MZ 12 | 15 Kg |
| Hochlochziegel ≥ Hlz12 Rohdichte 1 kg/dm³ | 15 Kg |
| Hohlblockstein ≥ Hbl2 | 15 Kg |
| Porenbeton ≥ PB2, PP2 | 15 Kg |
| Gipskartonplatte 12,5 mm | 10 Kg |
| Gipsfaserplatte 12,5 mm | 15 Kg |

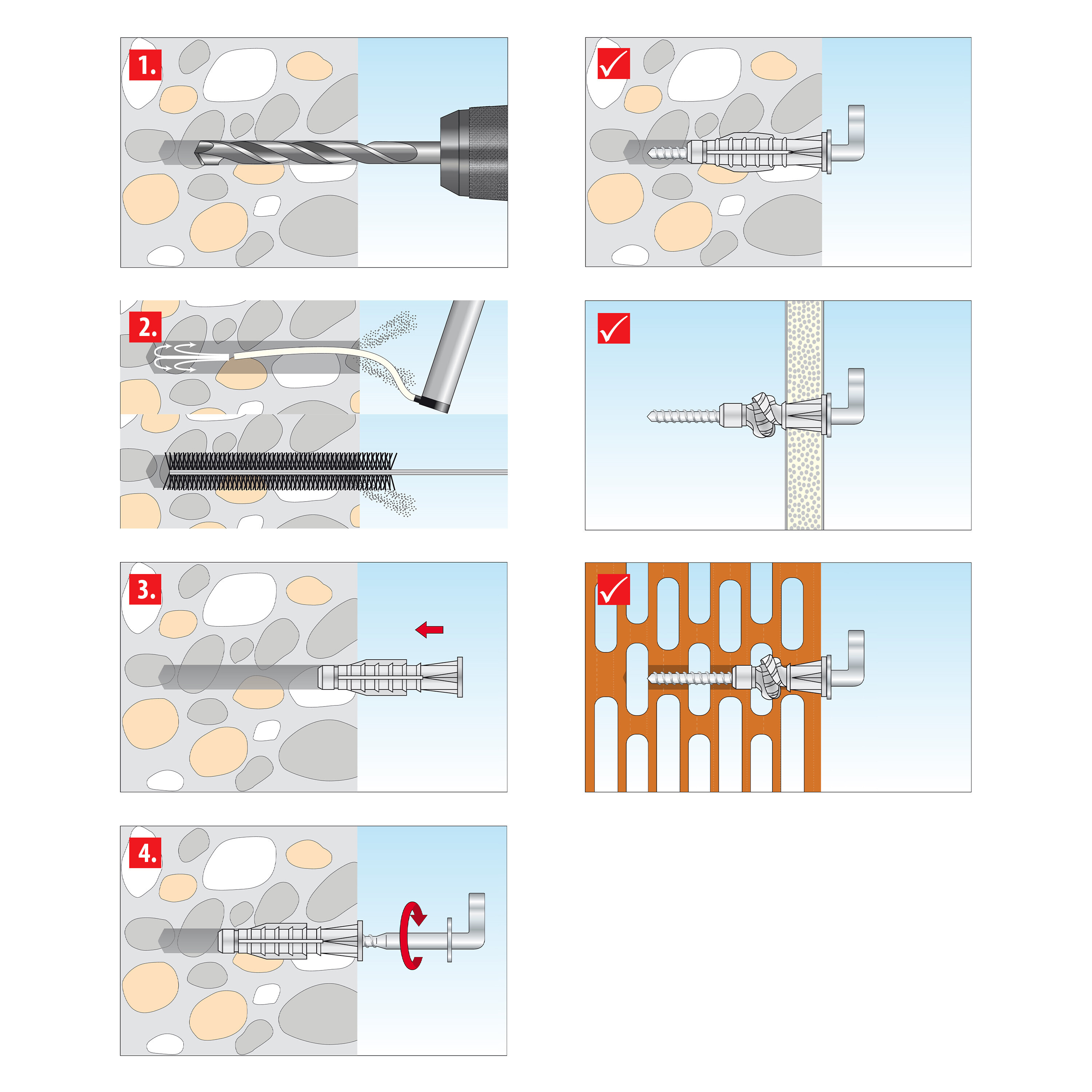

Safety instructions
- The anchoring depth of the wall plug must be observed
- Drilling method and drill hole cleaning must be adapted to the building material
- The recommended loads only apply to installation in the building material, not for installation in joints
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
