Spring-toggle
Oase Spagat Pro
Product information "Oase Spagat Pro"
Properties
- Bridges large boards and fixing thicknesses
Description and field of application

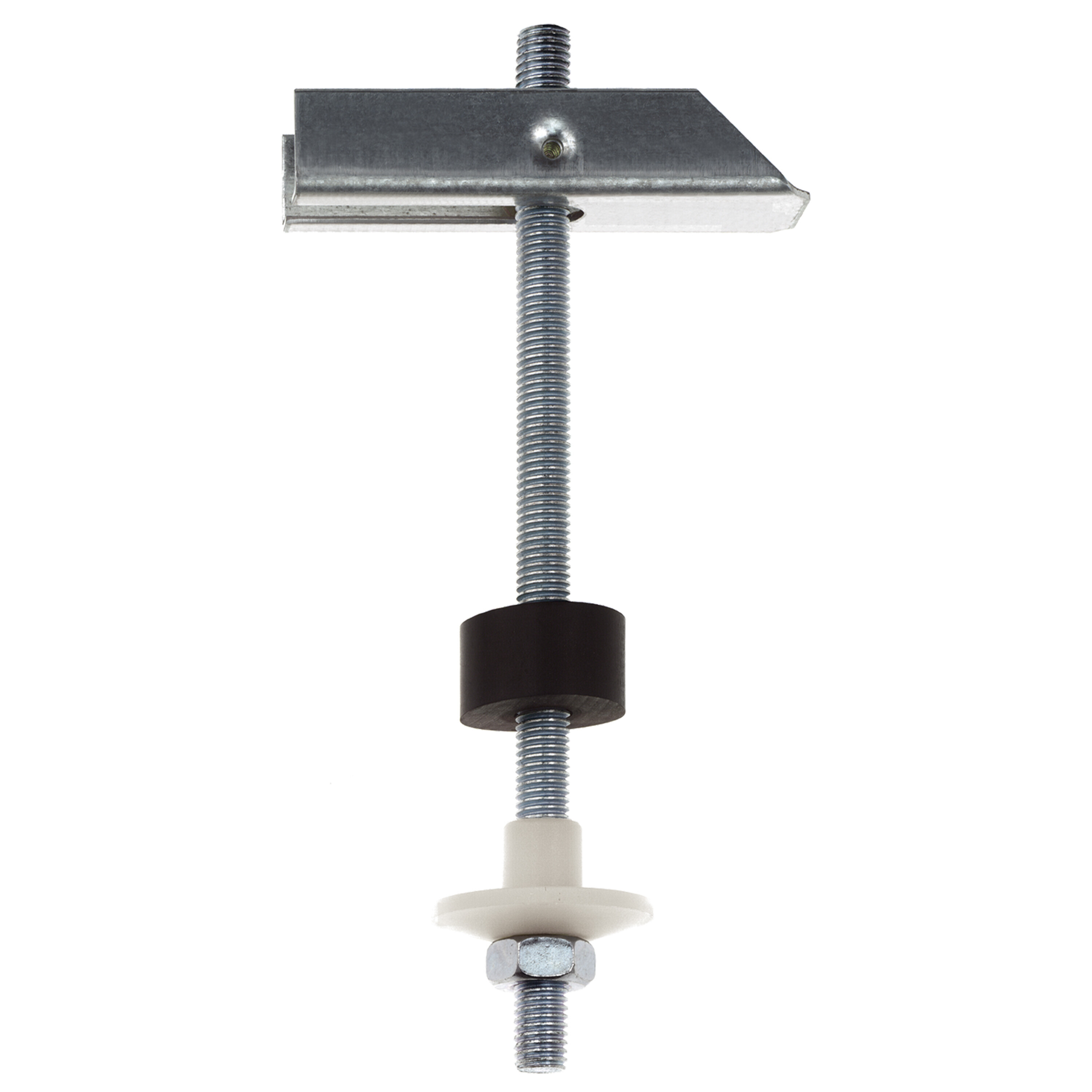

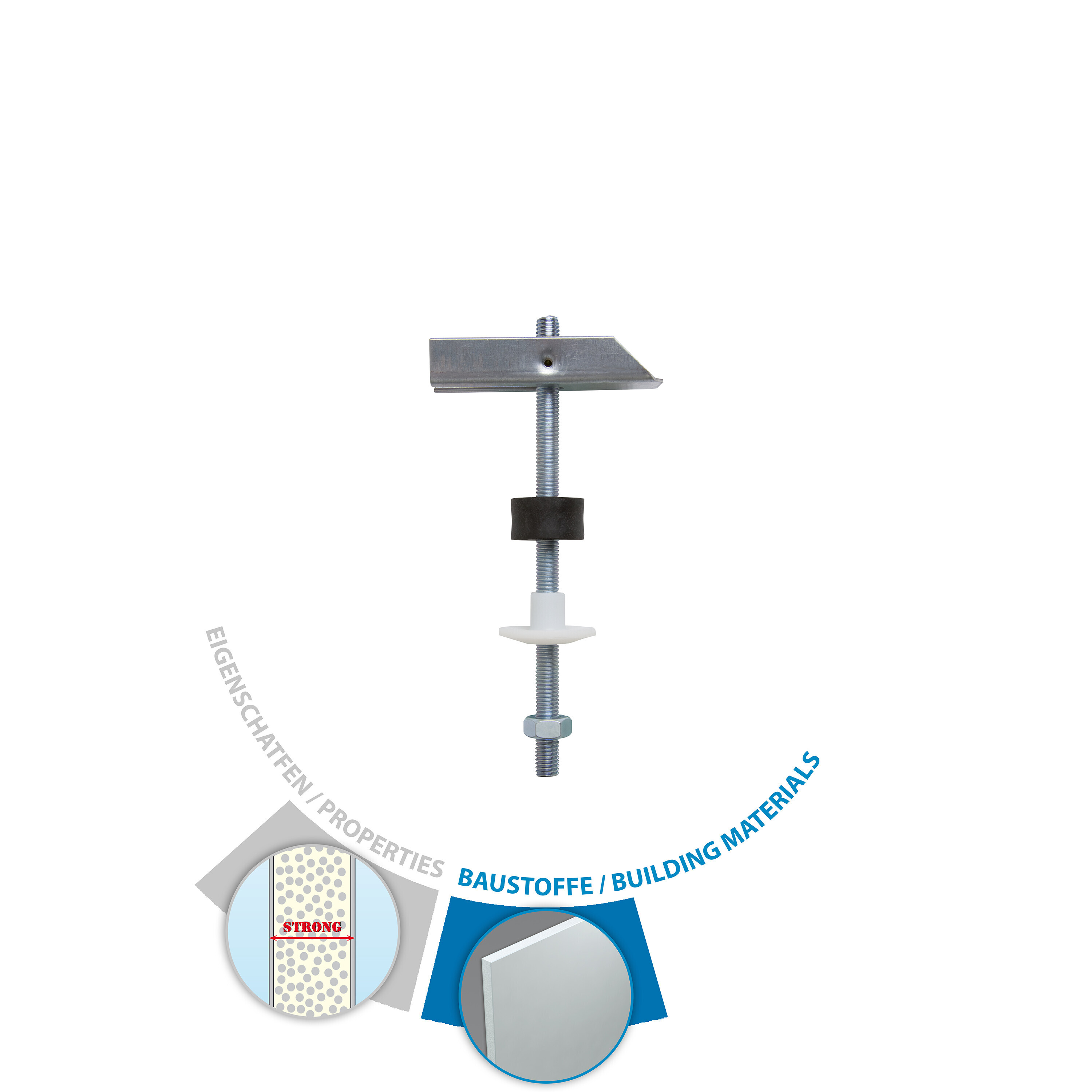

- Galvanised zinc-plated metal cavity wall plug with a tilting wing, plastic flange disk, hexagonal nut (SW 17) and M10 threaded rod
- For wall boards up to 100 mm in size
- For gypsum plasterboard and gypsum fibre board with a minimum size of 18 mm

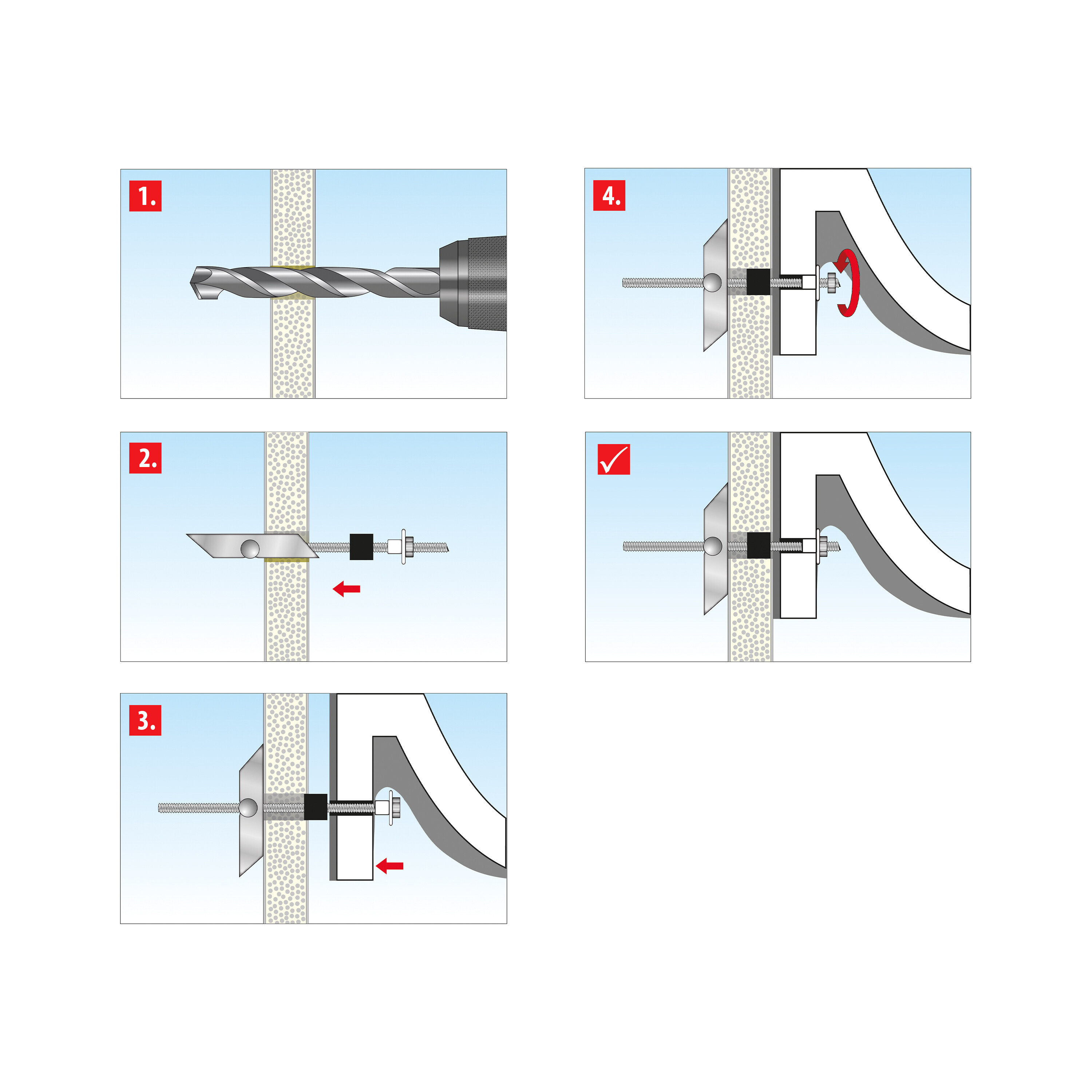

Processing and assembly
- Observe the minimum cavity depth, board thickness and drill Ø
- Observe the vertical installation position of the wing for wall installations
- DIN 18183 must be observed when installing washbasins on plasterboard walls, and DIN 4103-2 must be observed for gypsum wall boards
- Pre-positioned installation
Area of application: | Indoors |
---|---|
Diameter: | M10 |
Plug length: | 180 |
Screw type: | Threaded rod |
TOXBeschreibung2: | Federklappdübel |
Safety instructions
- The anchoring depth of the wall plug must be observed
- Drilling method and drill hole cleaning must be adapted to the building material
- The recommended loads only apply to installation in the building material, not for installation in joints
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
