Insulation holder
Keeper Metal
Product information "Keeper Metal"
Properties
- Quick and easy thanks to impact installation
- Fire resistant in accordance with DIN 4102 (class A1)
- Also suitable for the underside of ceilings
- Little effort required thanks to impact installation
Description and field of application

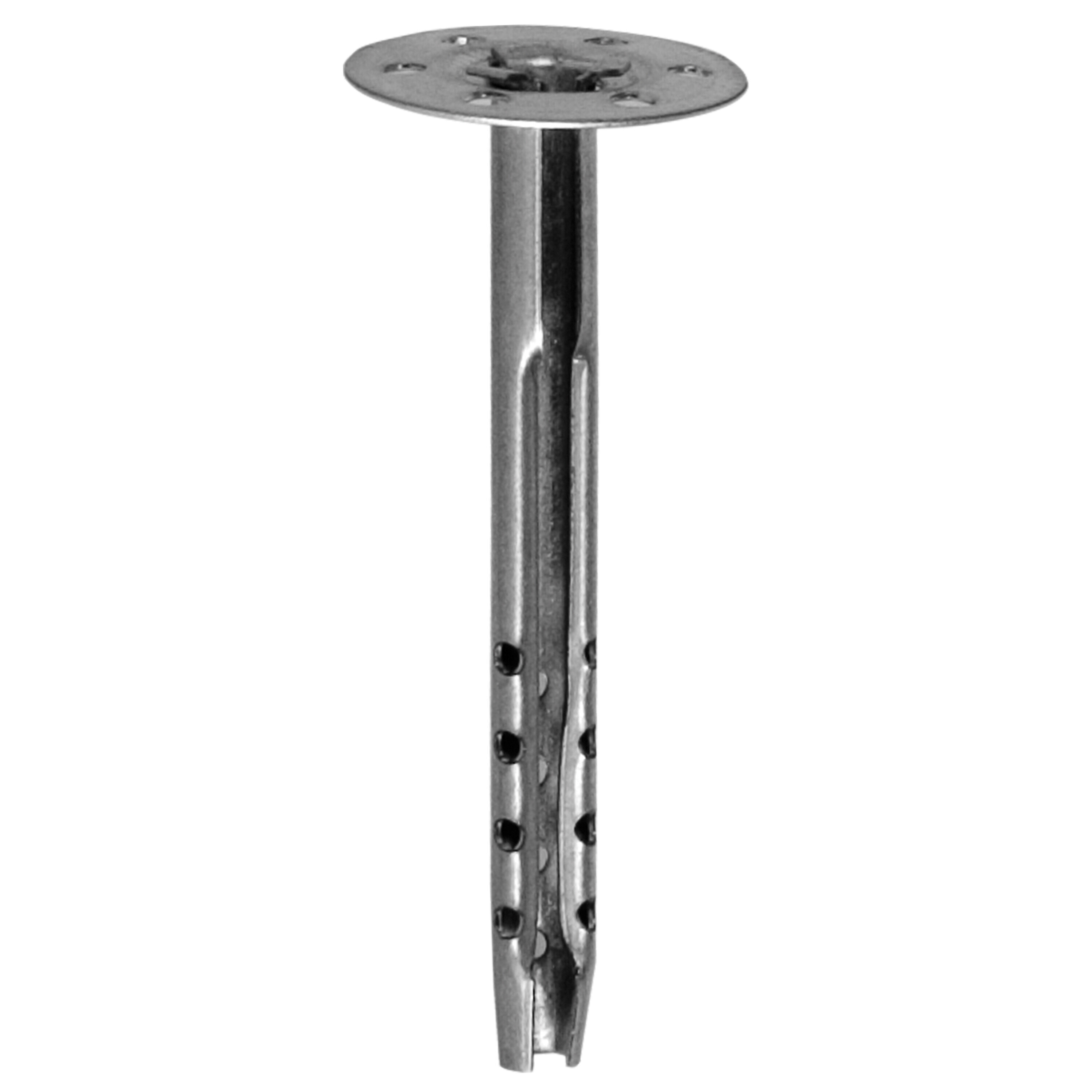

- Spring steel clamping sleeve and zinc-plated flanged plate (ø 35 mm) made of sheet steel

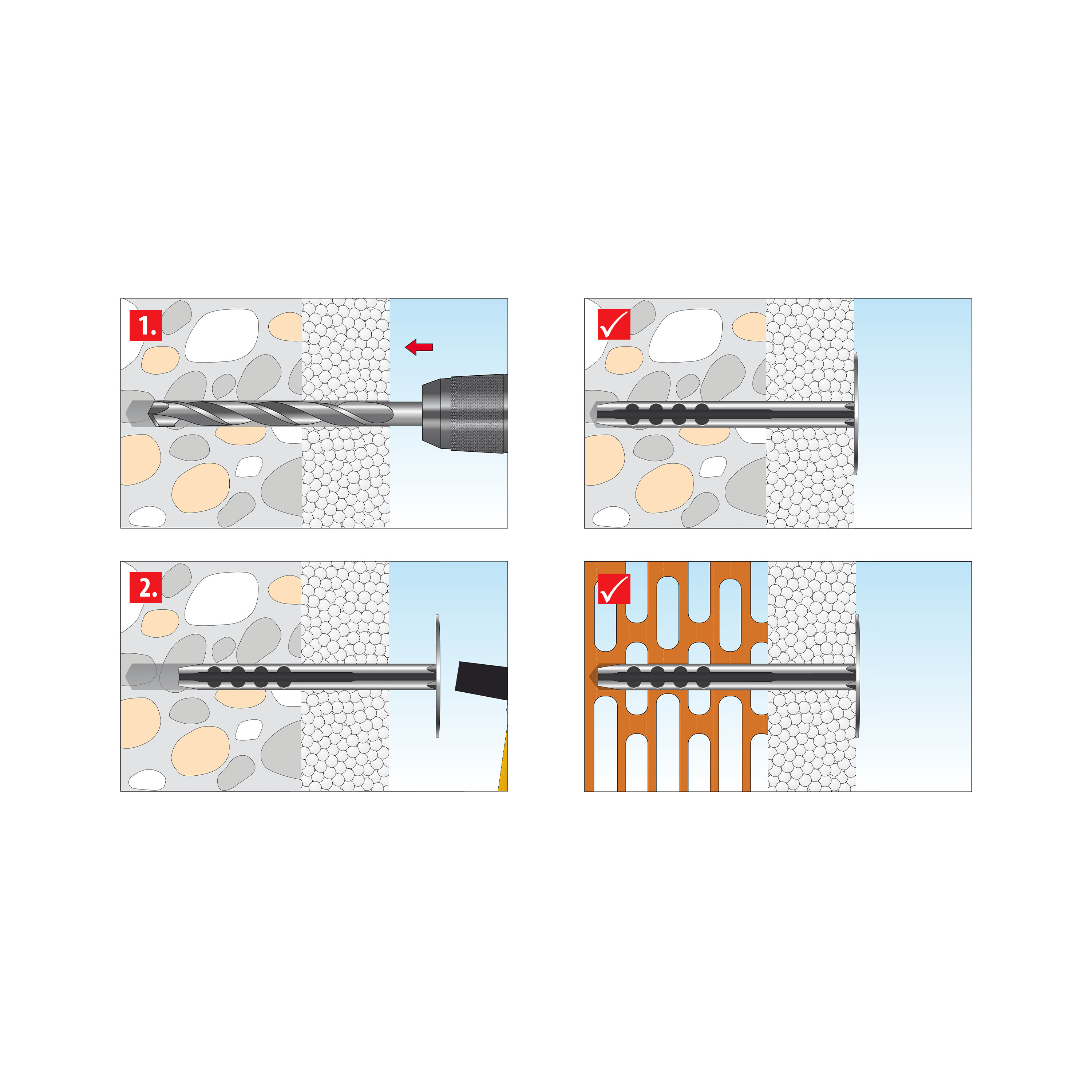

Processing and assembly
- Make a drill hole the size of the wall plug diameter
- Drill into perforated brick without impact to prevent webs from breaking away
- Drill into concrete and solid brick with impact
- Through installation
| Area of application: | Indoors and outdoors |
|---|---|
| Diameter: | 8 |
| Eigenschaft: | Dämmstoffhalter |
| Insulation thickness: | 90 |
| Plug length: | 140 |
Safety instructions
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
