Pipe clamp M8 zinc-plated incl. plug + screw
Clamp-Set
The TOX Clamp-Set with pipe clamp 32-35 mm (1 inch), all-purpose plug and hanger bolt is the ideal fastening solution for indoor piping and industrial construction - suitable for almost all building materials and quick to install!

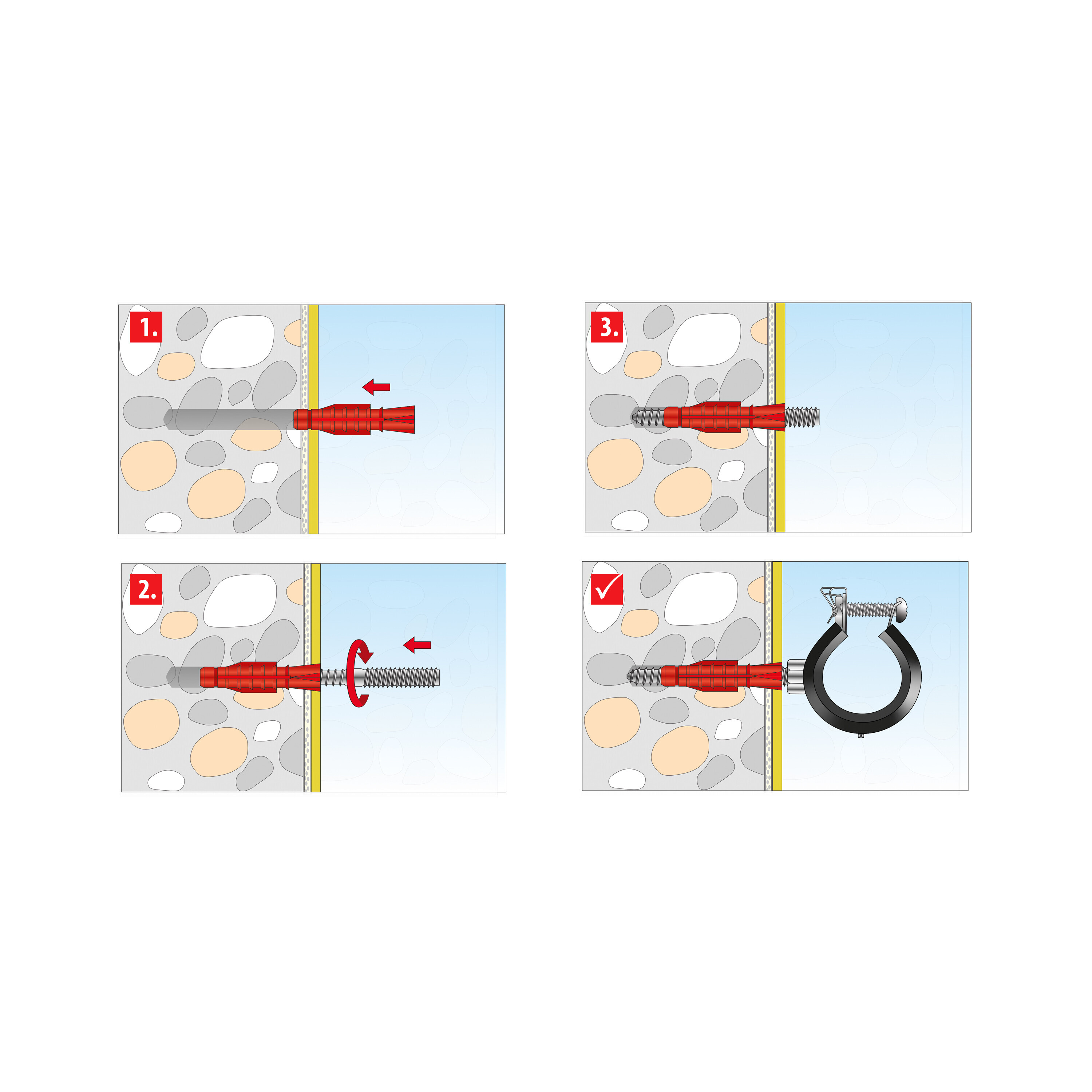

The pipe clamps made of zinc-plated steel are equipped with a highly elastic, vibration-absorbing sound insulation insert. The reduced transmission of vibrations to the building structure results in an average sound level improvement of 17 dB(A). The practical quick-release fastener with just one locking screw enables one-handed installation and the screw of the articulated pipe clamp is secured against falling out - making it easy to install drinking water and heating pipes. The pipe also remains free to rotate during installation. The TRI all-purpose plug knots or expands automatically depending on the building material, but the hanger bolt can also be fixed in timber constructions without a plug. The pipe clamp set is available with different diameter clamping ranges for fixing the most common pipe sizes!

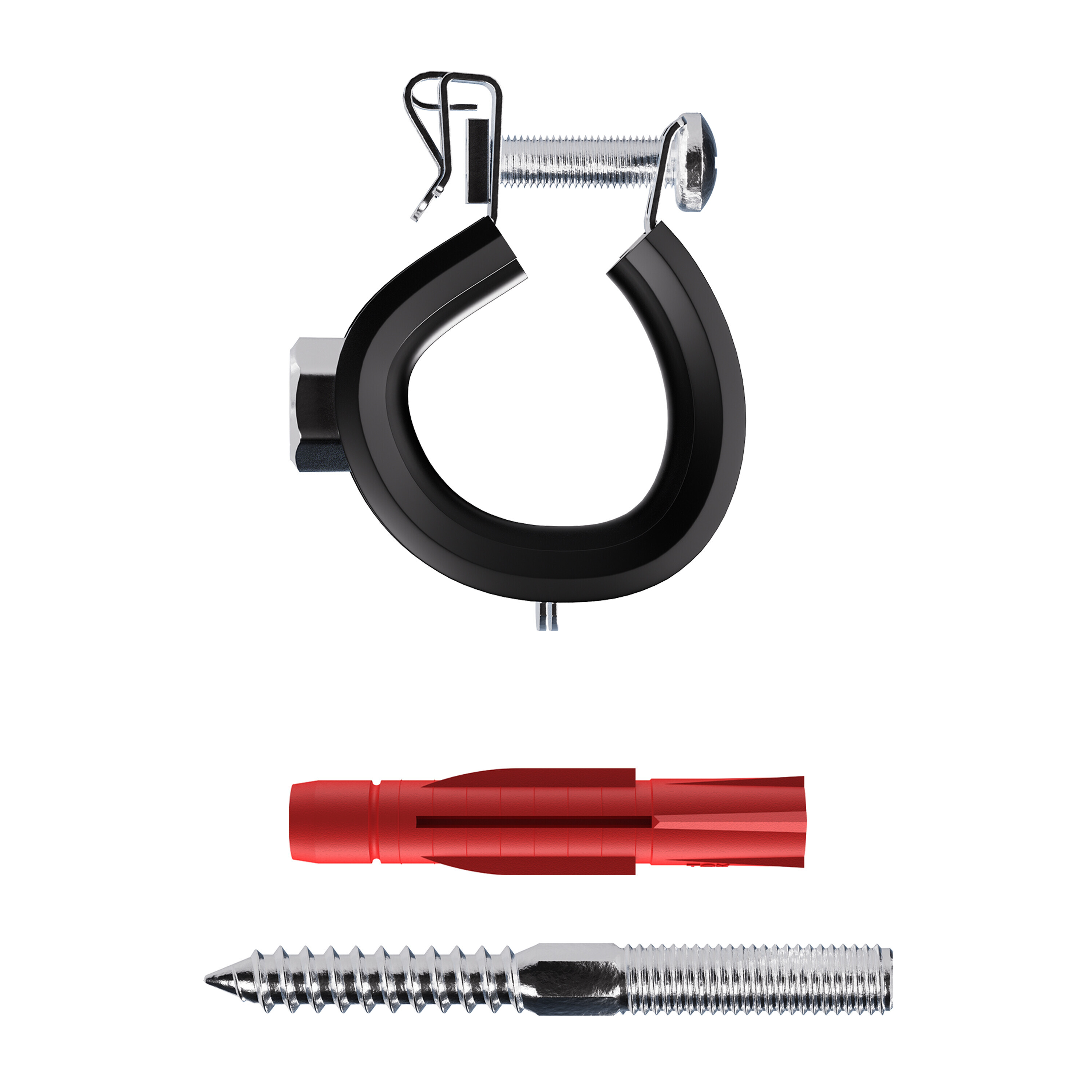

Supplied with 1x TOX Clamp-Set with 10x pipe clamps 32-35 mm each (1 inch and M8 connection), all-purpose plug TRI 10/61 and hanger bolt M8x80 with TX drive in a cardboard box.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 61 |
|---|---|
| Area of application: | Indoors |
| Diameter: | 10 |
| Diameter of included screw: | 8 |
| Drill diameter: | 10 |
| Drill hole depth: | 85 |
| Length of included screw: | 80 |
| Plug dimension: | 10 x 61 |
| Property: | Rohrschelle M8 verzinkt inkl. Dübel + Schraube |
| Beton C20/25 | Ja Kg |
|---|---|
| Vollstein MZ 12 | Ja Kg |
| Porenbeton ≥ PB2, PP2 | Ja Kg |
The TOX Clamp-Set with pipe clamp 32-35 mm (1 inch), all-purpose plug and hanger bolt is the ideal fastening solution for indoor piping and industrial construction - suitable for almost all building materials and quick to install!
The pipe clamps made of zinc-plated steel are equipped with a highly elastic, vibration-absorbing sound insulation insert. The reduced transmission of vibrations to the building structure results in an average sound level improvement of 17 dB(A). The practical quick-release fastener with just one locking screw enables one-handed installation and the screw of the articulated pipe clamp is secured against falling out - making it easy to install drinking water and heating pipes. The pipe also remains free to rotate during installation. The TRI all-purpose plug knots or expands automatically depending on the building material, but the hanger bolt can also be fixed in timber constructions without a plug. The pipe clamp set is available with different diameter clamping ranges for fixing the most common pipe sizes!
Supplied with 1x TOX Clamp-Set with 10x pipe clamps 32-35 mm each (1 inch and M8 connection), all-purpose plug TRI 10/61 and hanger bolt M8x80 with TX drive in a cardboard box.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 61 |
|---|---|
| Area of application: | Indoors |
| Diameter: | 10 |
| Diameter of included screw: | 8 |
| Drill diameter: | 10 |
| Drill hole depth: | 85 |
| Length of included screw: | 80 |
| Plug dimension: | 10 x 61 |
| Property: | Rohrschelle M8 verzinkt inkl. Dübel + Schraube |
| Beton C20/25 | Ja Kg |
|---|---|
| Vollstein MZ 12 | Ja Kg |
| Porenbeton ≥ PB2, PP2 | Ja Kg |
