Parallel expansion plug
Bizeps

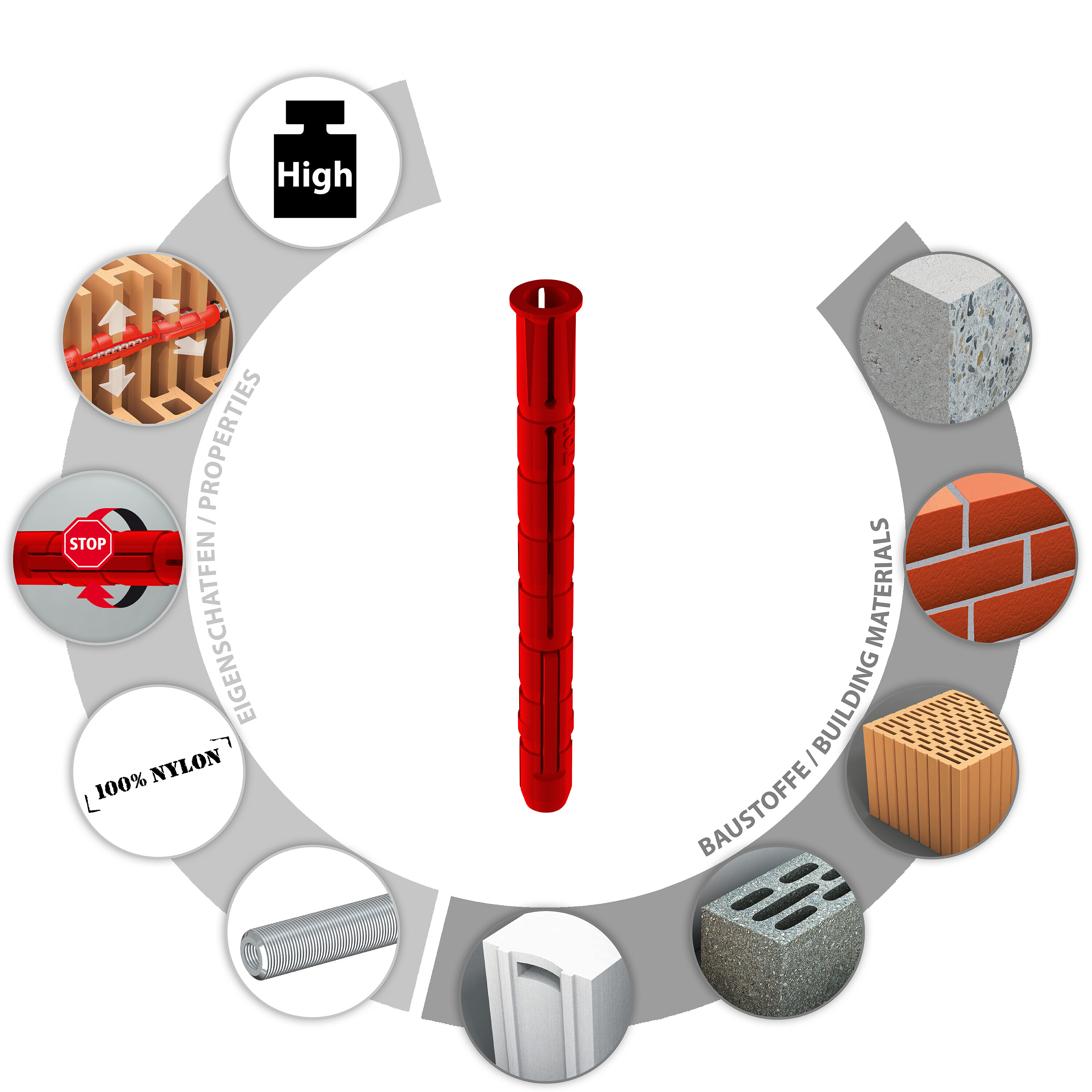

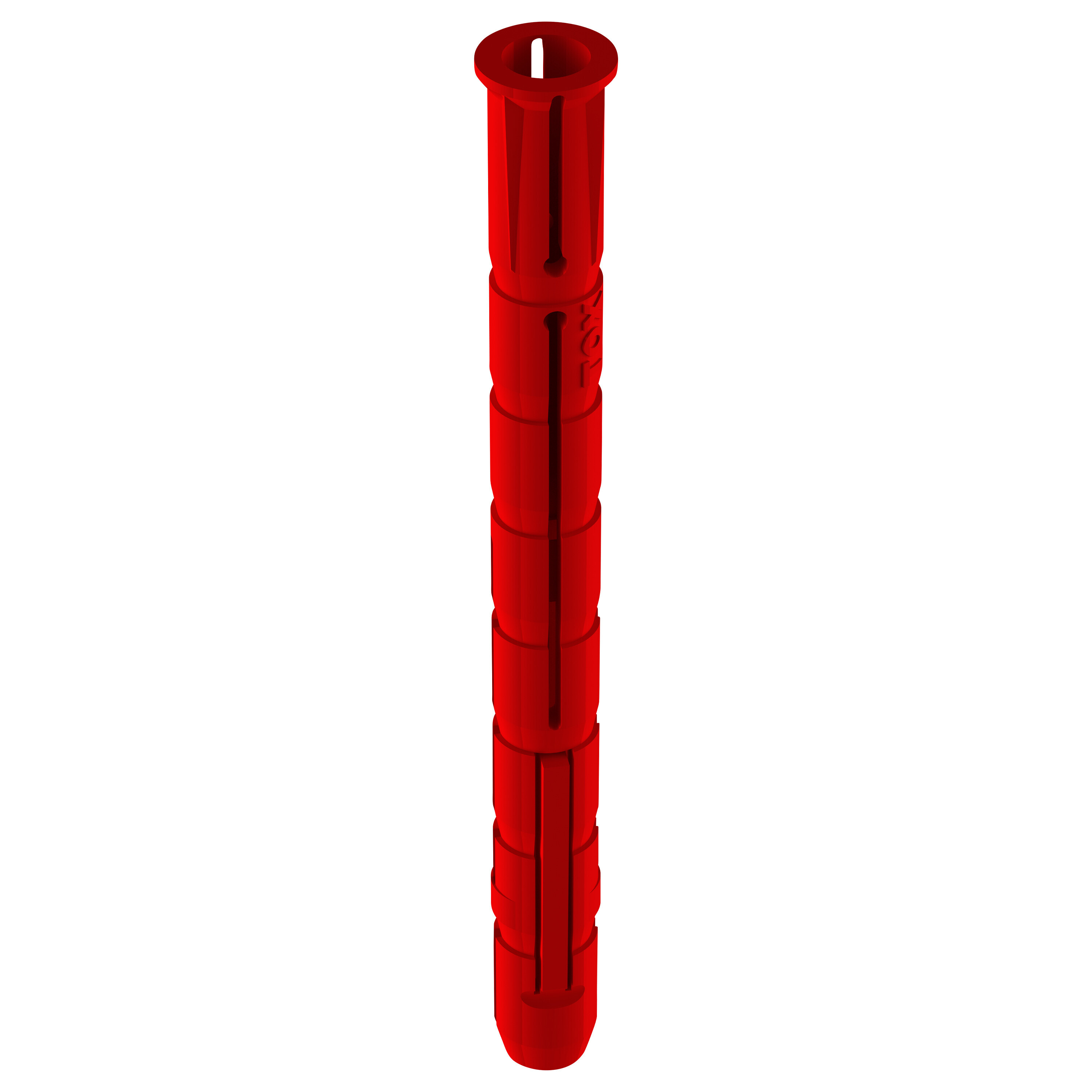

The TOX Bizeps parallel expansion plug is the ideal fixing solution for perforated brick (Poroton) and aerated concrete (Ytong), but is also suitable for concrete and solid brick. With a long expansion area and extremely high holding values, the Bizeps offers secure and reliable anchorage. The optimum force distribution in the stone is even and gentle in four directions. The multiple expansion is made possible by two expansion bodies with movable rotating wings and a flexible dowel neck that are split in two and offset at 90 degrees to each other. The plug neck enables easy bridging of plaster, tiles, screed, etc., which makes this expansion plug particularly versatile. The rotating wings also prevent rotation in the drill hole. The expansion plug is also suitable for metric threaded rods.

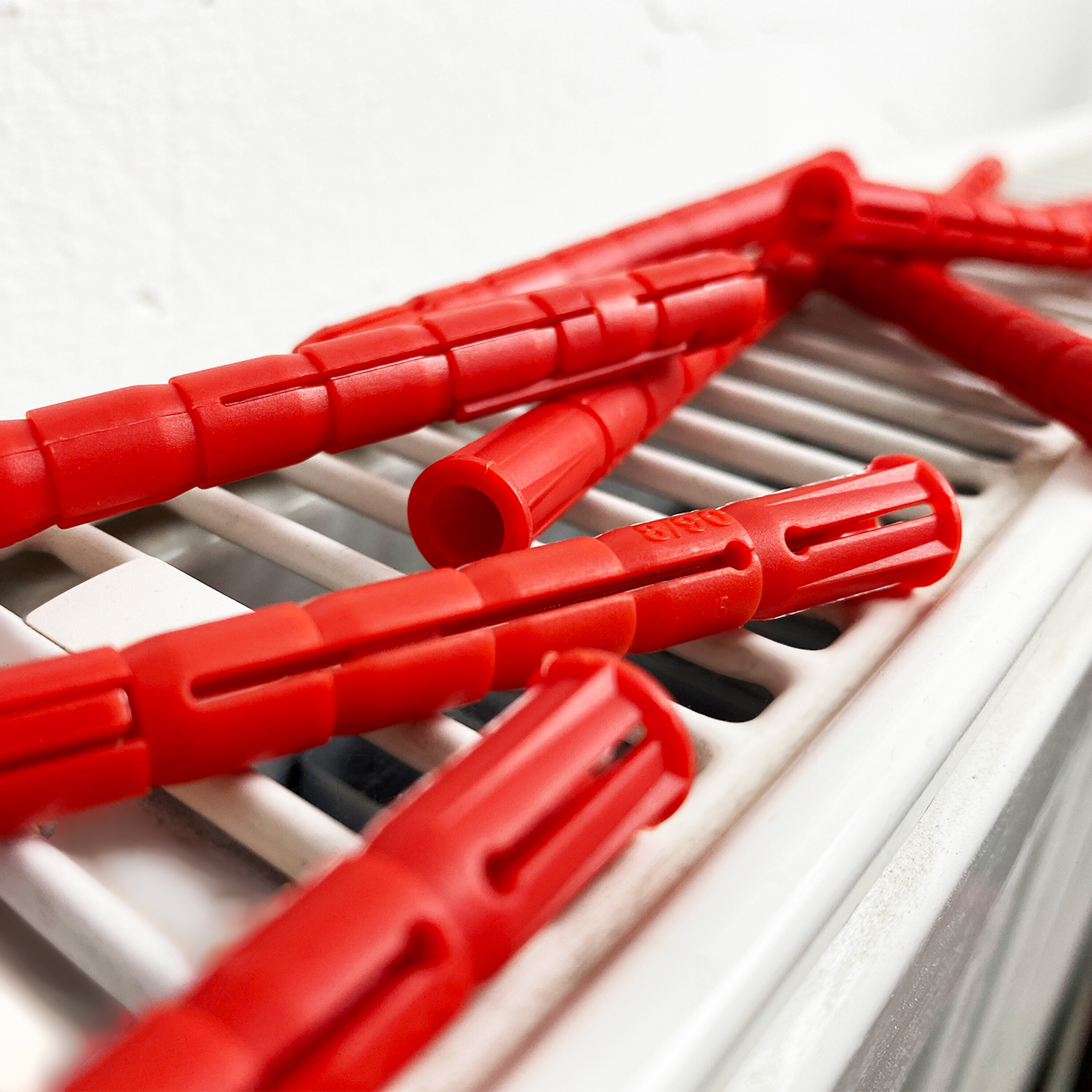

Supplied with 4 Bizeps 12/90 parallel expansion plugs in a blister pack.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 90 |
|---|---|
| Area of application: | Indoors and outdoors |
| Diameter: | 12 |
| Drill diameter: | 12 |
| Drill hole depth: | 100 |
| Plug dimension: | 12 x 90 |
| Property: | Parallel-Spreizdübel |
| Suitable screw diameter: | 8,0-10,0/M8 |
| Beton C20/25 | 300 Kg |
|---|---|
| Vollstein MZ 12 | 160 Kg |
| Hochlochziegel ≥ Hlz12 Rohdichte 1 kg/dm³ | 85 Kg |
| Hohlblockstein ≥ Hbl2 | 40 Kg |
| Porenbeton ≥ PB2, PP2 | 25 Kg |
Safety instructions
- The specified holding values refer to screws with the largest screw diameter
- The anchoring depth of the wall plug must be observed

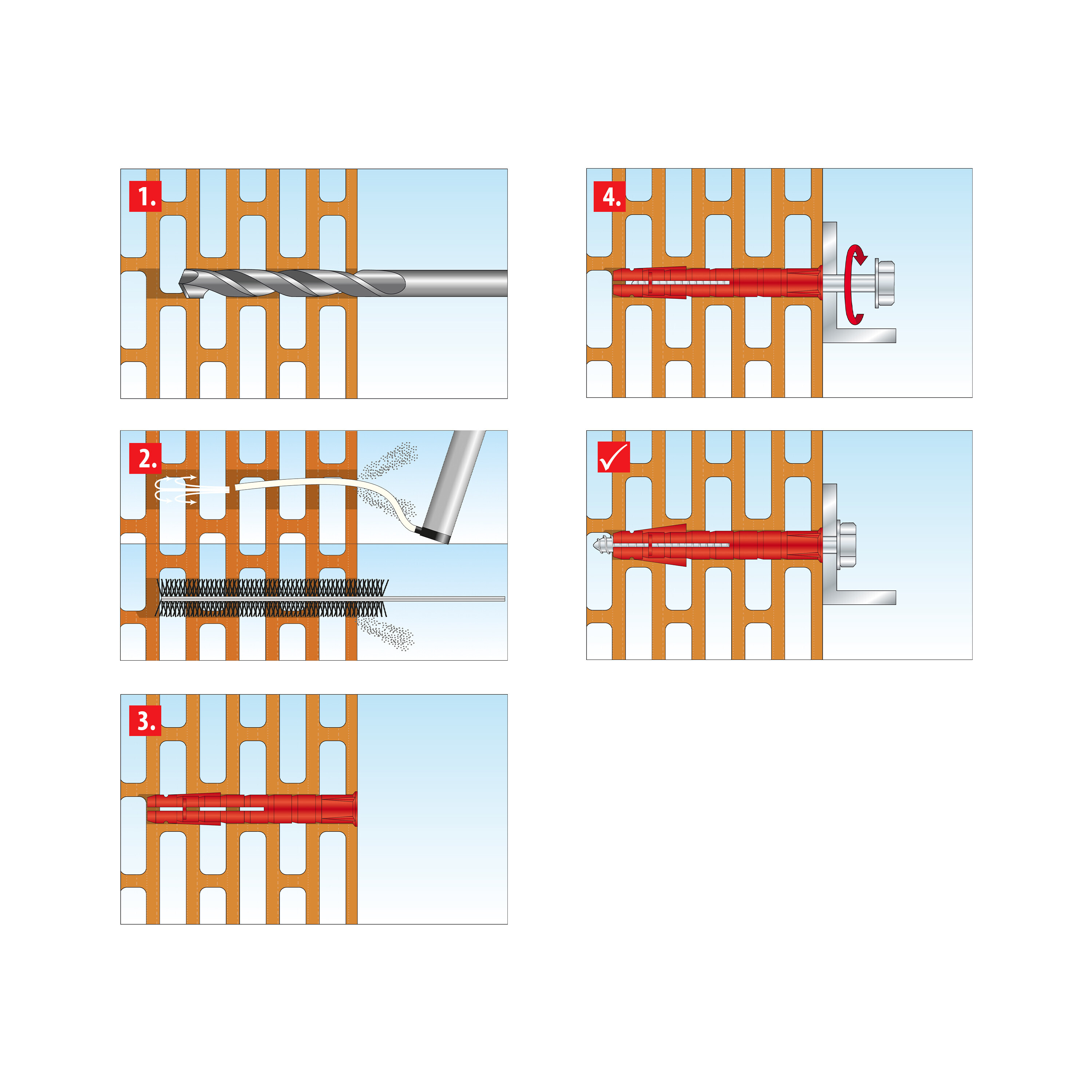

- Drilling method and drill hole cleaning must be adapted to the building material
- The recommended loads only apply to installation in the building material, not for installation in joints
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
