expansion plug
Barracuda

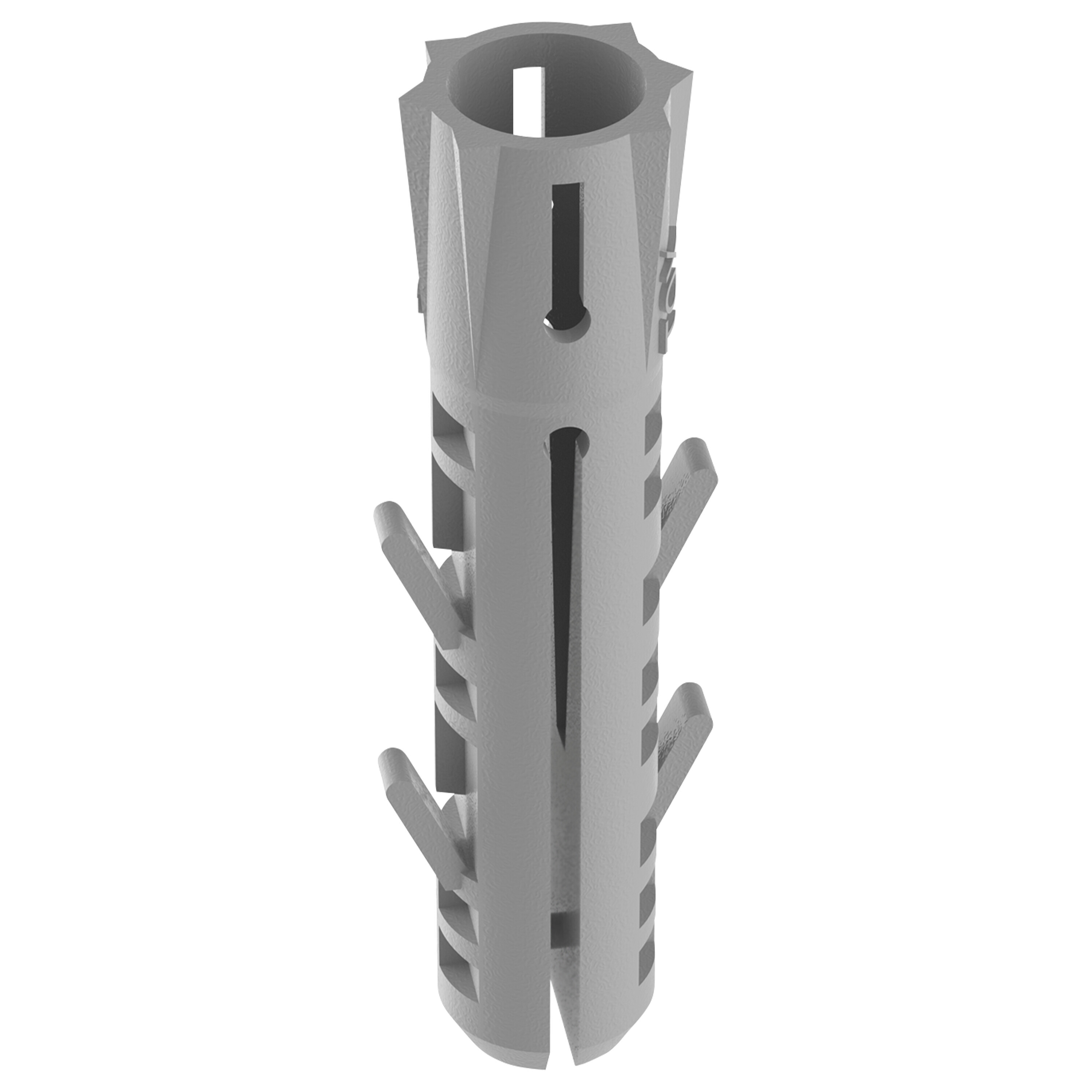

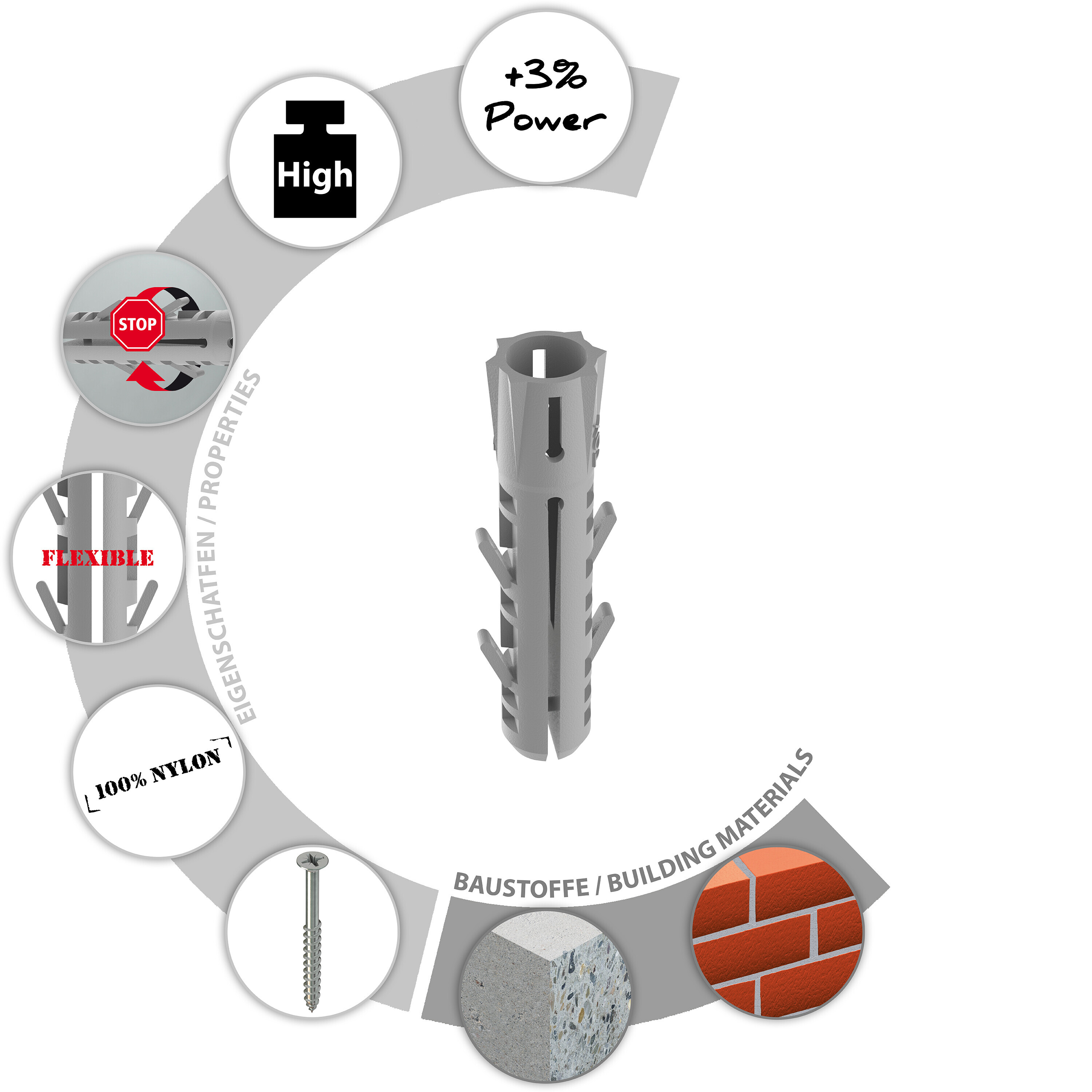

With its outstanding properties, the Barracuda expansion plug offers extremely high holding values in solid building materials such as concrete and solid brick - it outperforms other expansion plugs by up to 30 percent. This is made possible by its high material content and a 2-fold split expansion body. The Barracuda is also characterized by its secure screw guidance. With a flexible plug neck that adapts perfectly to the drill hole, installation is child's play. This expansion plug can be used not only with conventional screws, but also with wood, chipboard and hanger bolts. Several active anti-rotation locks ensure that the plug does not rotate during installation. Whether you are a professional or a DIY enthusiast, this plug makes installation easy and enjoyable.

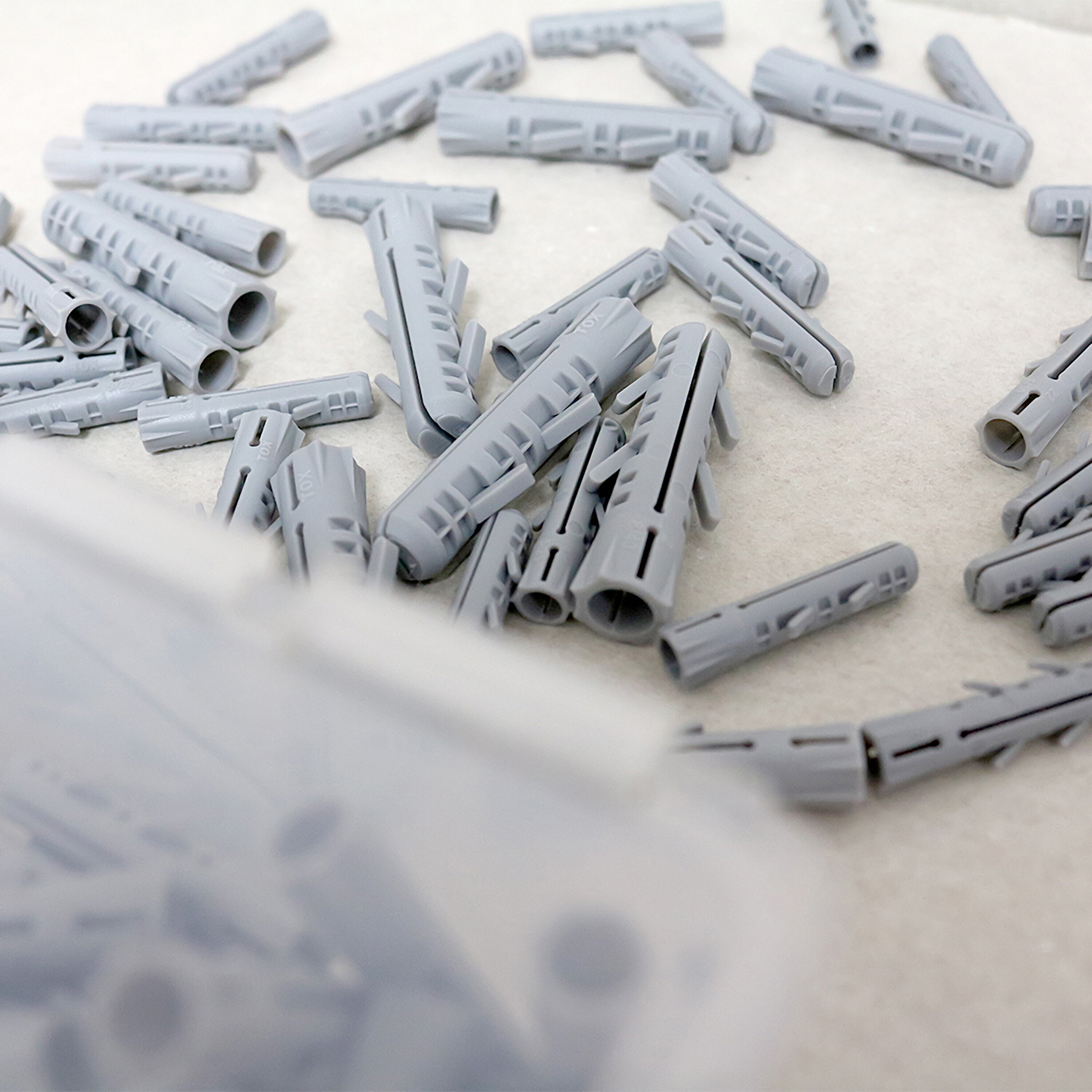

The Barracuda 6/30 expansion plug is supplied in a handy cardboard box containing 100 pieces: this guarantees that everything is neatly stowed away, safely transportable and quickly to hand.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 30 |
|---|---|
| Area of application: | Indoors and outdoors |
| Diameter: | 6 |
| Drill diameter: | 6 |
| Drill hole depth: | 45 |
| Plug dimension: | 6/30 |
| Property: | Spreizdübel |
| Suitable screw diameter: | 3,5-5,0 |
| Beton C20/25 | 70 Kg |
|---|---|
| Vollstein MZ 12 | 35 Kg |

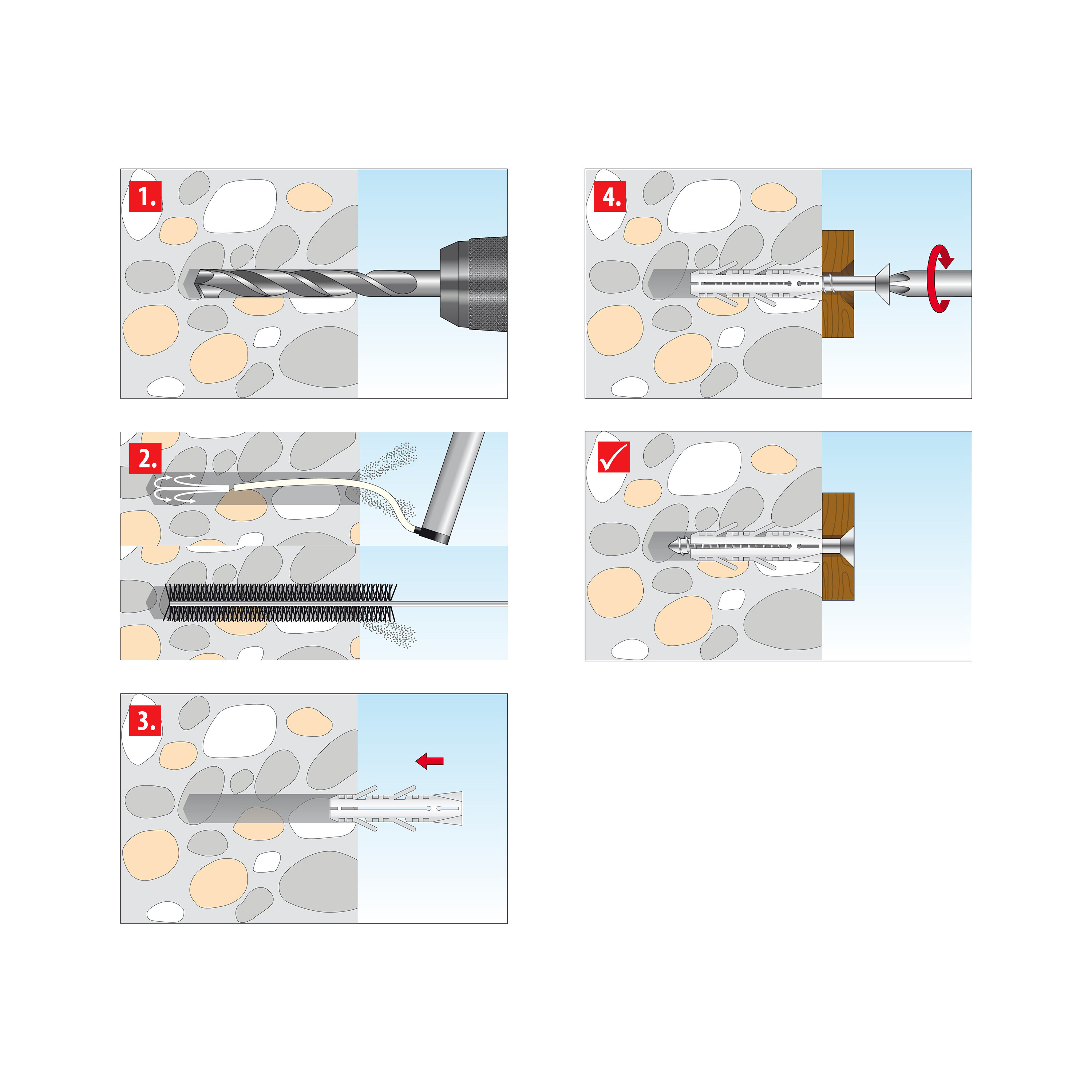

Safety instructions
- The specified holding values refer to screws with the largest screw diameter
- The anchoring depth of the wall plug must be observed
- Drilling method and drill hole cleaning must be adapted to the building material
- The recommended loads only apply to installation in the building material, not for installation in joints
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
