Chemical heavy-duty fixing set, composite mortar
Liquix Set (24 Stk.)
- In addition to the composite mortar, this complete set contains everything you need for processing

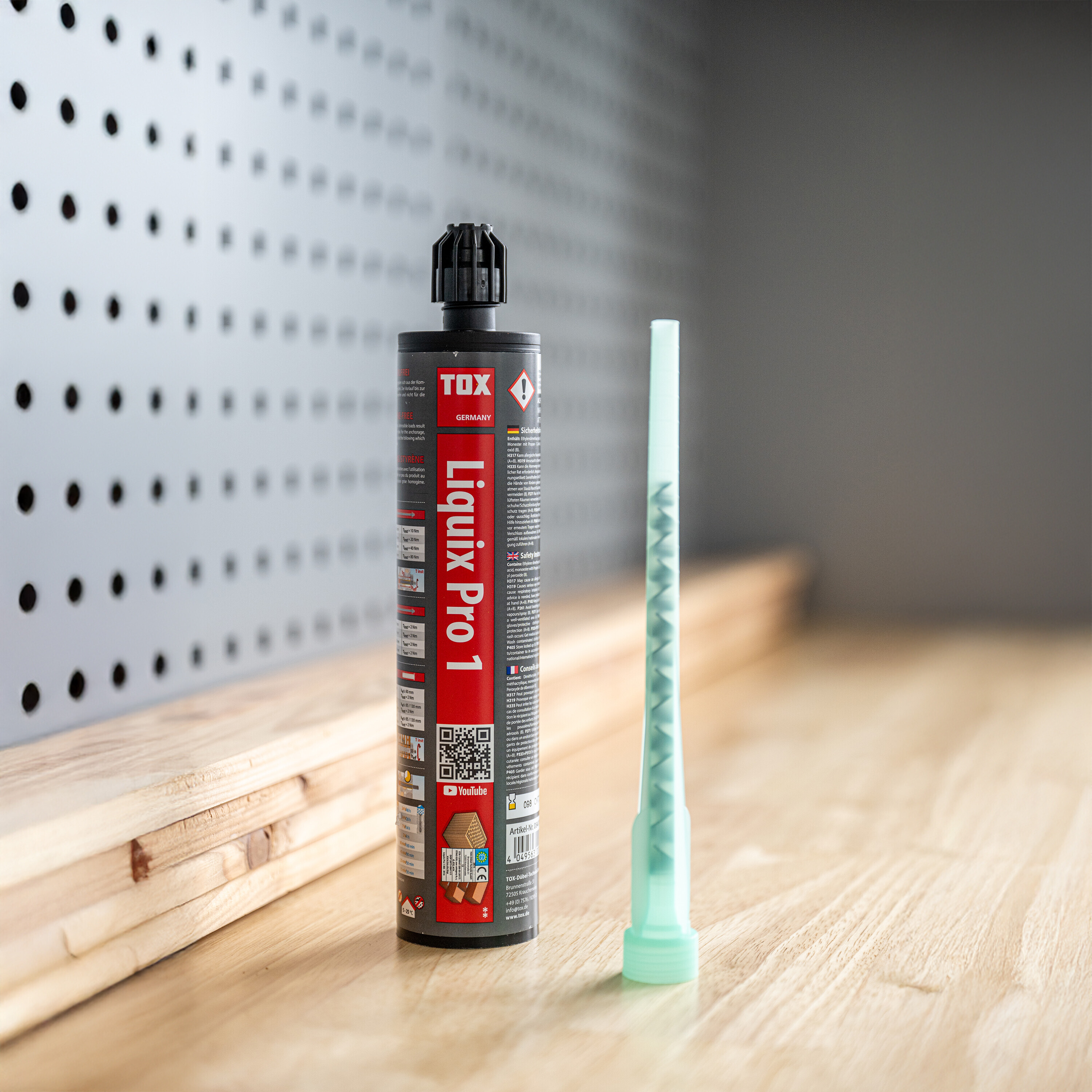

- Liquix Pro 1 composite mortar
- Liquix Blaster cartridge gun
- Liquix Sleeve
- Blow-out pump Taifun
- Cleaning brush Brush
- Mixing tubes for Liquix Mix composite mortar cartridges
This product has been discontinued
084909251 084909255
Successor product
Liquix Pro V1

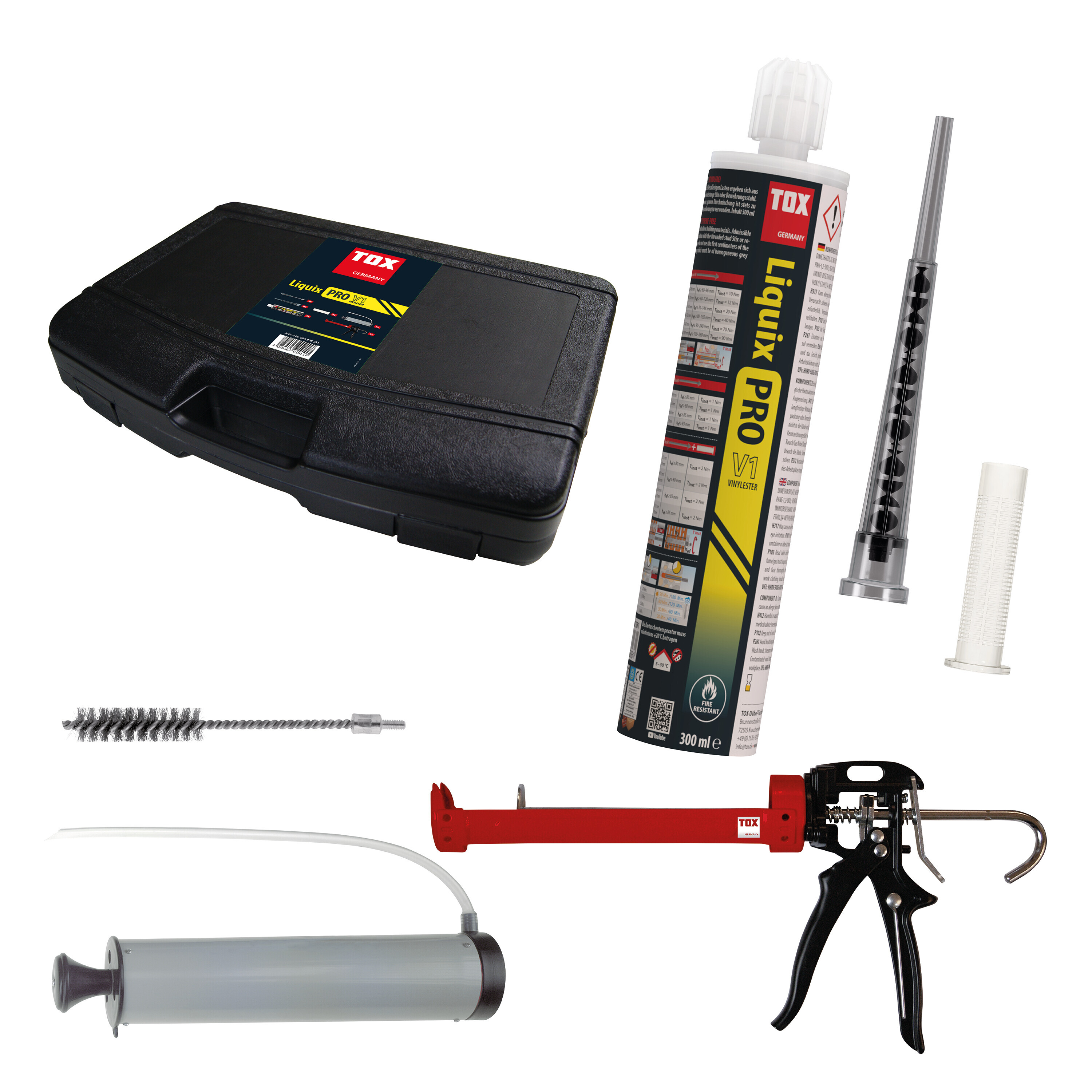

Liquix Pro V1 Set styrolfrei 300ml (24 tlg.)
Product number: 084909255
- Benefit: No cutting open required thanks to Chub Seal closure
- A single solution for everything: Building authority approval for cracked & non-cracked concrete, perforated and solid brick and post-installed rebar connections
- LEED and emission tested
The TOX Chemie Liquix Set heavy-duty assortment with Liquix Pro 1 280 ml composite mortar and complete accessories for processing in a practical assortment case is ideal for secure fixing of heavy-duty loads of up to 13.3 tons!

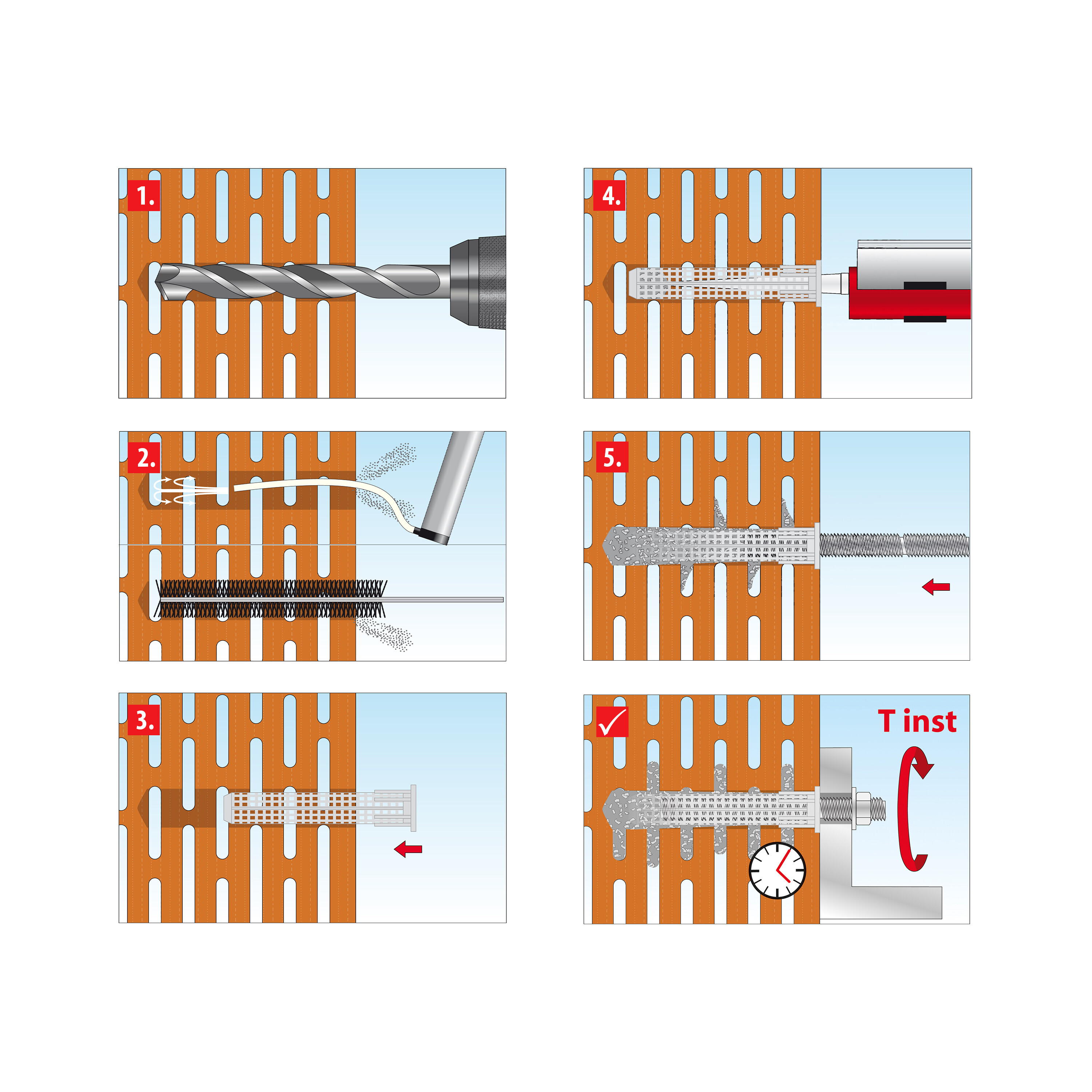

The Liquix Set contains everything you need for secure fixing: The composite mortar is suitable for dry and wet concrete as well as water-filled drill holes and the Liquix Sleeve sieve sleeves enable secure fixing in perforated and chambered stone. The Liquix Blaster cartridge gun with its energy-saving transmission ratio of 1:18 ensures convenient processing of coaxial cartridges - Liquix Mix mixing tubes for composite mortar cartridges included. With the Taifun blow-out pump and Brush cleaning brushes, you can achieve optimum holding values through thorough drill hole cleaning for reliable fixings. Cleaning is prescribed in many building inspectorate approvals.

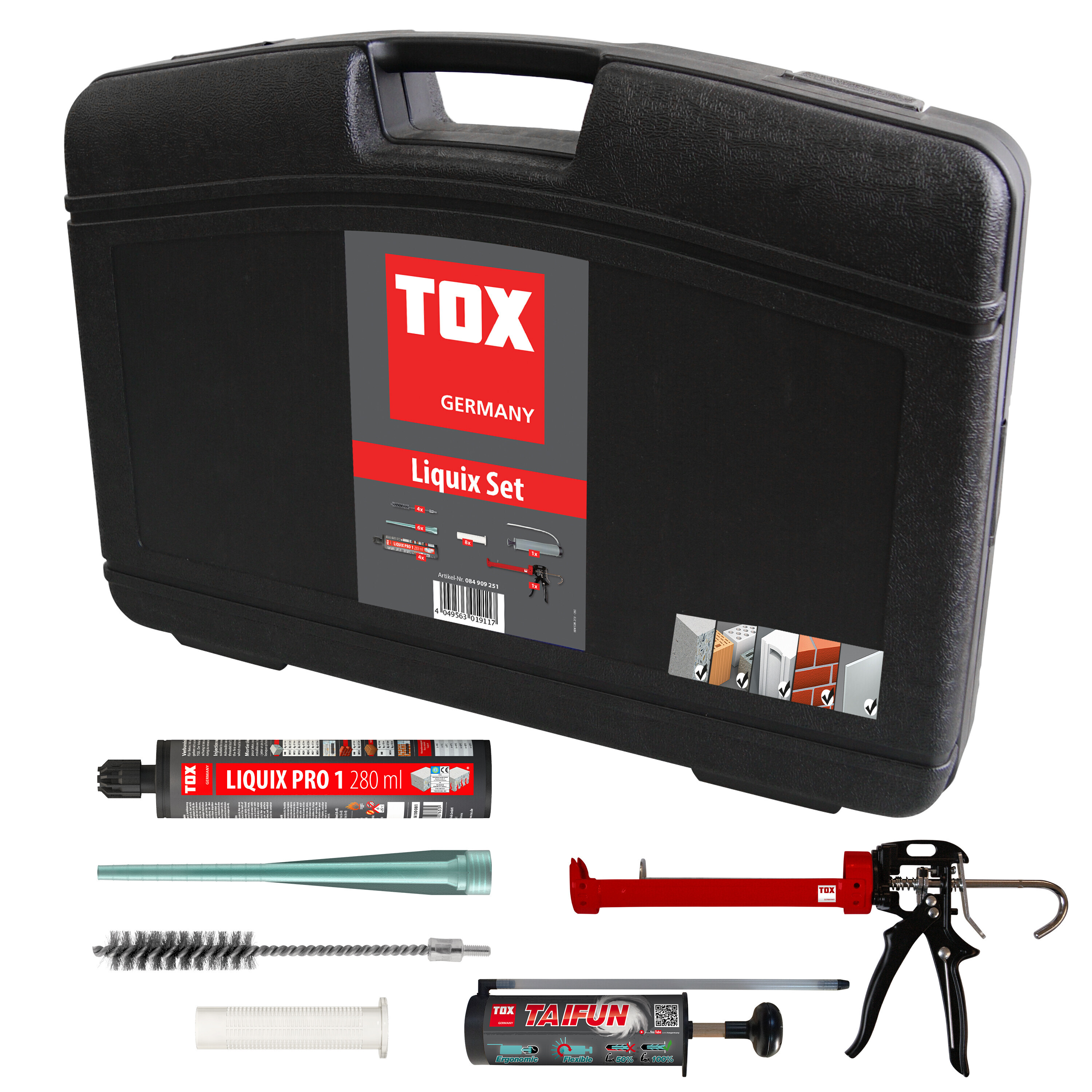

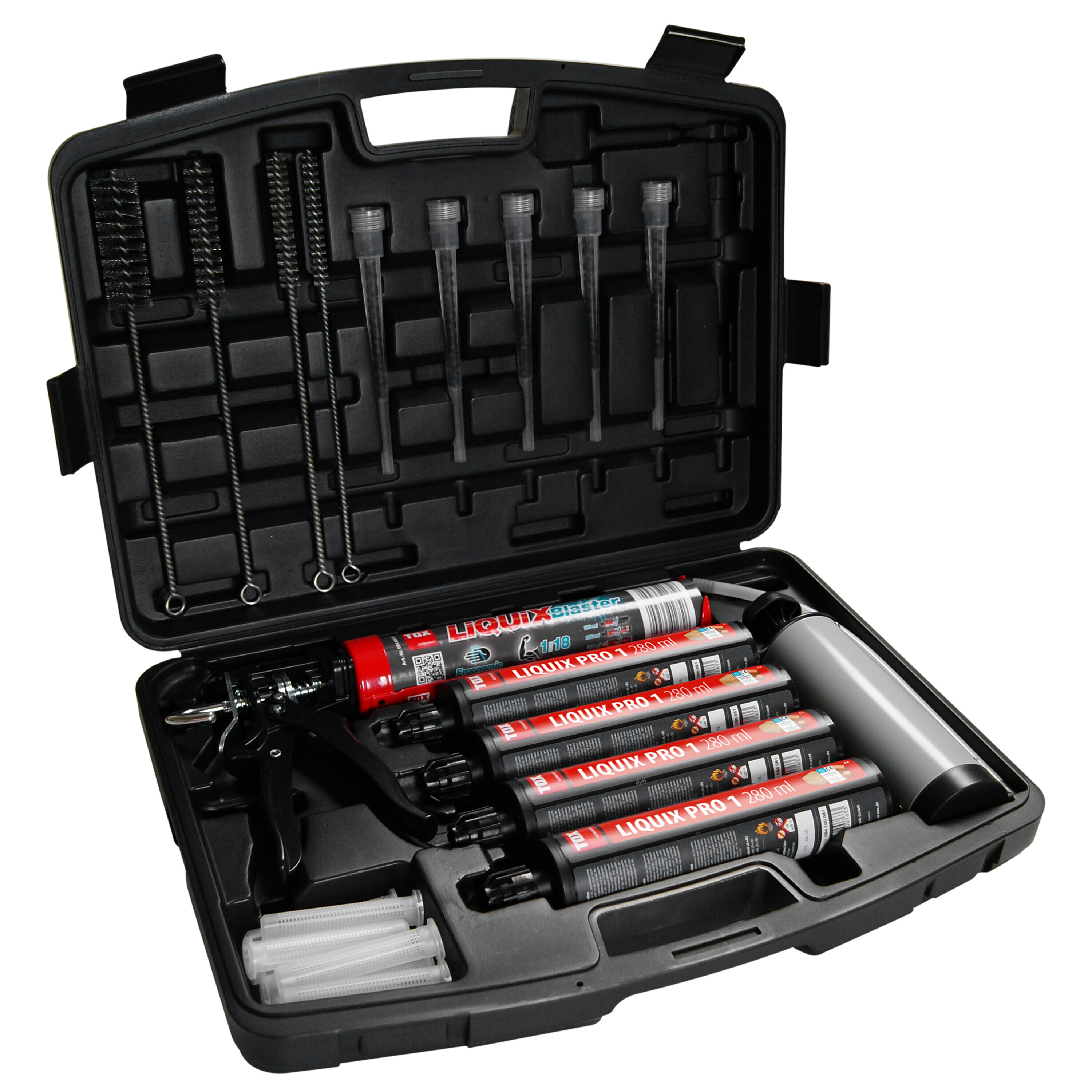

The chemical heavy-duty assortment Liquix Set is supplied as a complete set with 4x composite mortar 280 ml, 8x sieve sleeve 16x85 mm, 6x mixing tubes, 4x cleaning brush 10/13/18/28 mm, 1x blow-out pump, 1x cartridge gun in a handy and robust assortment case.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Approval number: | ETA-09/0258;ETA-13/0047;ETA-17/0338 |
|---|---|
| Area of application: | Indoors and outdoors |
| Property: | Chemie-Schwerlast-Sortiment, Verbundmörtel |
Safety instructions
- The specified loads refer to anchorings of single anchors in wet and dry concrete as well as for anchorings from -40° C to +24° C (or briefly up to +40° C)
- When sizing, the entire declaration of performance of the Liquix Pro 1 must be observed
- The partial safety factors of the resistances specified in the approval and a partial safety factor of γF = 1.4 are to be considered
- 1 The anchoring depth hef can be freely selected between the values hef min und hef max
TOXZulassungDeutsch
Liquix_Pro_1_Beton_ETA_09-0258_DE_20190809.pdfLiquix_Pro_1_Mauerwerk_ETA_13-0047_DE_2025_10_31.pdf
Liquix_Pro_1_Bewehrung_ETA_17-0338_DE_2025_10_31.pdf
Leistungserklärung
Liquix_Pro_1_Beton_2873-08410-1_DE_04012021.pdfLiquix_Pro_1_Bewehrung_2873-08412-1_DE_04012021.pdf
Liquix_Pro_1_Mauerwerk_2873-08411-1_DE_04012021.pdf
TOXSicherheitsdatenblattDeutschland
230411_Liquix_Pro_1_DE_SDS_RPT.pdfThe TOX Chemie Liquix Set heavy-duty assortment with Liquix Pro 1 280 ml composite mortar and complete accessories for processing in a practical assortment case is ideal for secure fixing of heavy-duty loads of up to 13.3 tons!
