nail plug
Attack Plus

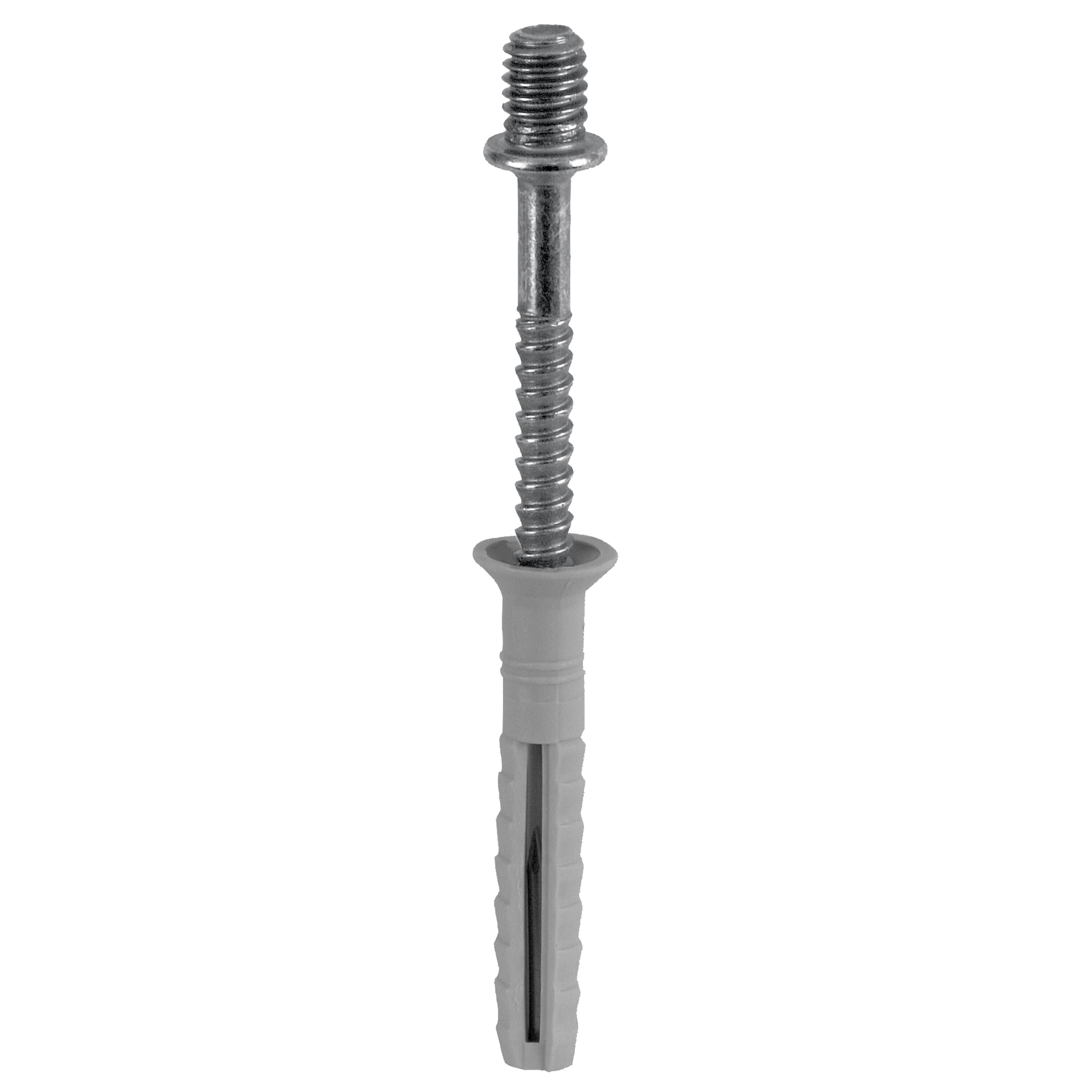

The TOX Attack Plus nail plug, including pre-assembled nail screw with saw-tooth thread and countersunk head with M6 connection thread, is ideal for fast, surface-flush fixing of wooden components, whether in concrete, solid and perforated brick or aerated concrete - simply drive it in!
The double-split expansion body of the hammer-in anchor ensures a strong hold and the hammer-in lock prevents premature expansion during hammering for a secure installation. The nail screw can then be easily screwed in and out as required. The Attack Plus nail plug is ideal for time-saving and economical push-through installations, for example when fixing cable ducts as a series installation.
Supplied with 50x Attack Plus nail plugs with 6/40 plug incl. pre-assembled 4 x 52 mm nail screw with saw-tooth thread and countersunk head with M6 connection thread in cardboard box.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 40 |
|---|---|
| Area of application: | Indoors |
| Clearance hole diameter: | 6 |
| Diameter: | 6 |
| Diameter of included screw: | 4 |
| Drill diameter: | 6 |
| Drill hole depth: | 50 |
| Length of included screw: | 52 |
| Plug dimension: | 6 x 40 |
| Property: | Nageldübel |
| Beton C20/25 | 25 Kg |
|---|---|
| Vollstein MZ 12 | 20 Kg |
| Porenbeton ≥ PB4, PP4 | 10 Kg |
Safety instructions
- The anchoring depth of the wall plug must be observed
- Drilling method and drill hole cleaning must be adapted to the building material
- The recommended loads only apply to installation in the building material, not for installation in joints
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
- * In perforated brick, the expansion element must expand in at least one internal web
