Floor-standing WC fixing
Toilet XL Cap

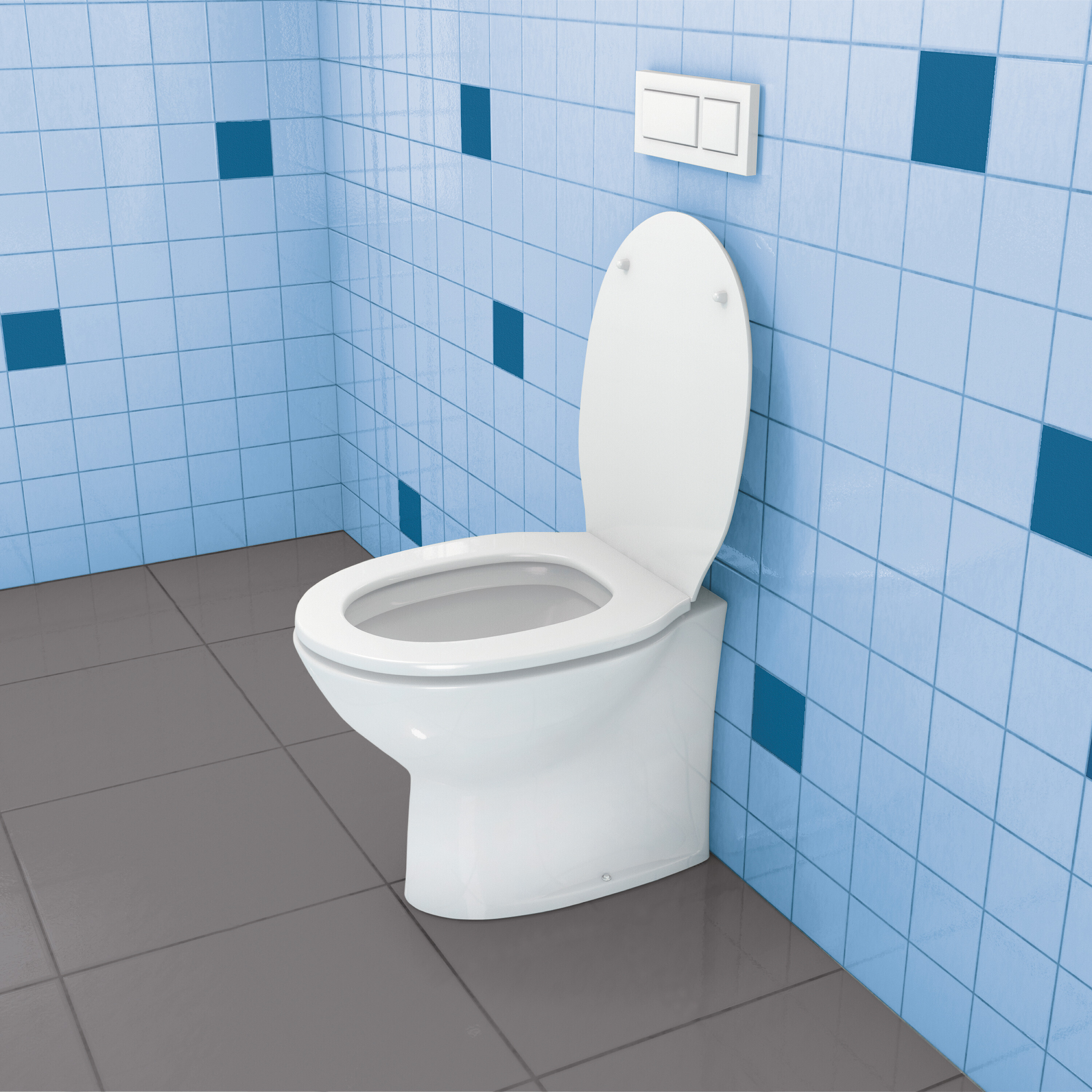

The TOX floor-standing Toilet XL Cap fixing, with red expansion plugs, brass screws and cover caps in whiteß, is ideal for fixing floor-standing toilets, shelves and much more. Thanks to the optimally coordinated components, the Toilet XL Cap achieves an extreme hold in concrete and solid brick. The plug's special holder ensures that the cover caps are held securely in place and enables a visually appealing installation. The plug shaft with collar protects the ceramic object from damage during installation and also serves as a receptacle for the cover cap. The Toilet XL Cap fixing is used in push-through installation

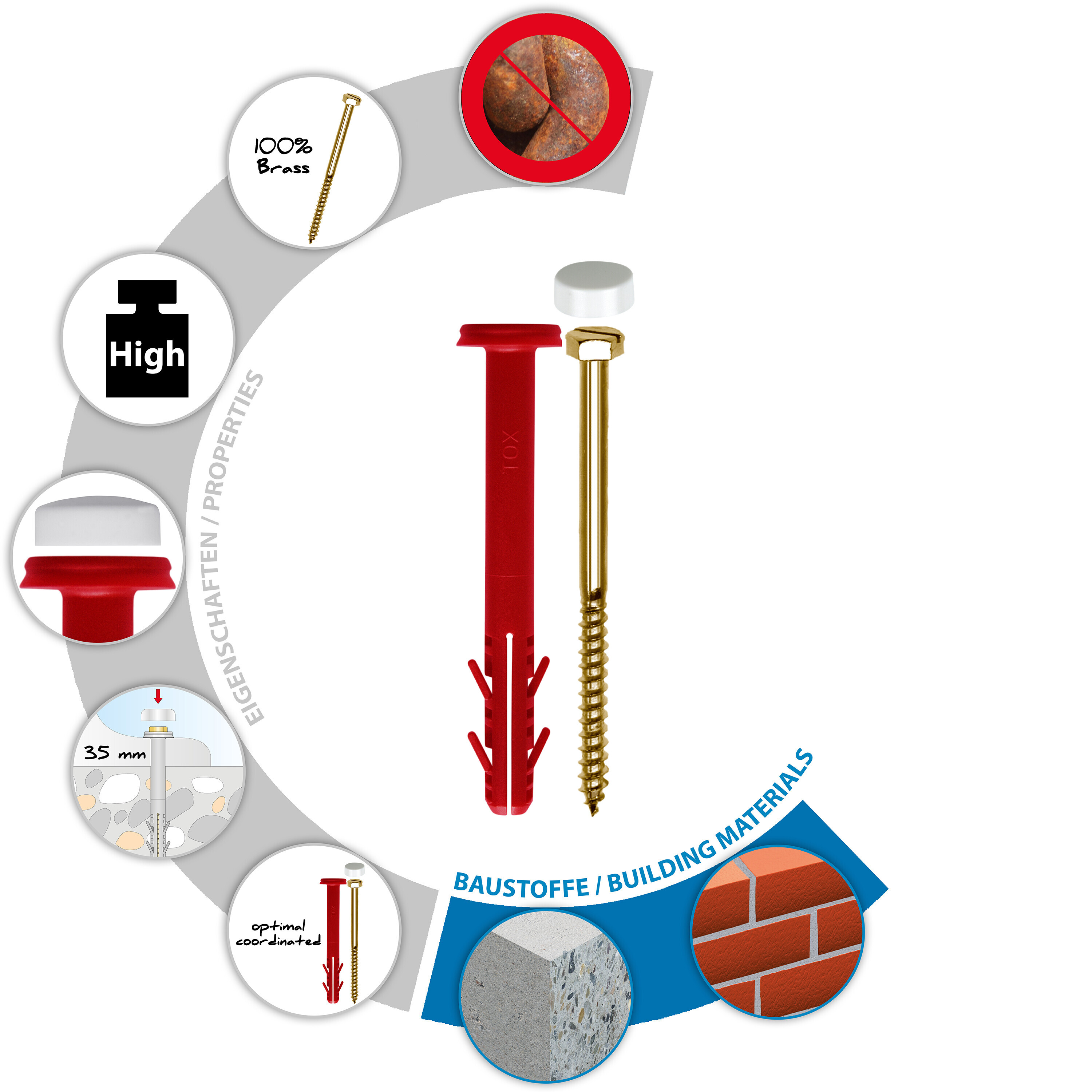

- Extreme hold in concrete and solid brick
- Up to 35 mm attachment thickness
- Plugs with special holder for secure hold of the cover caps
- Optimally coordinated components

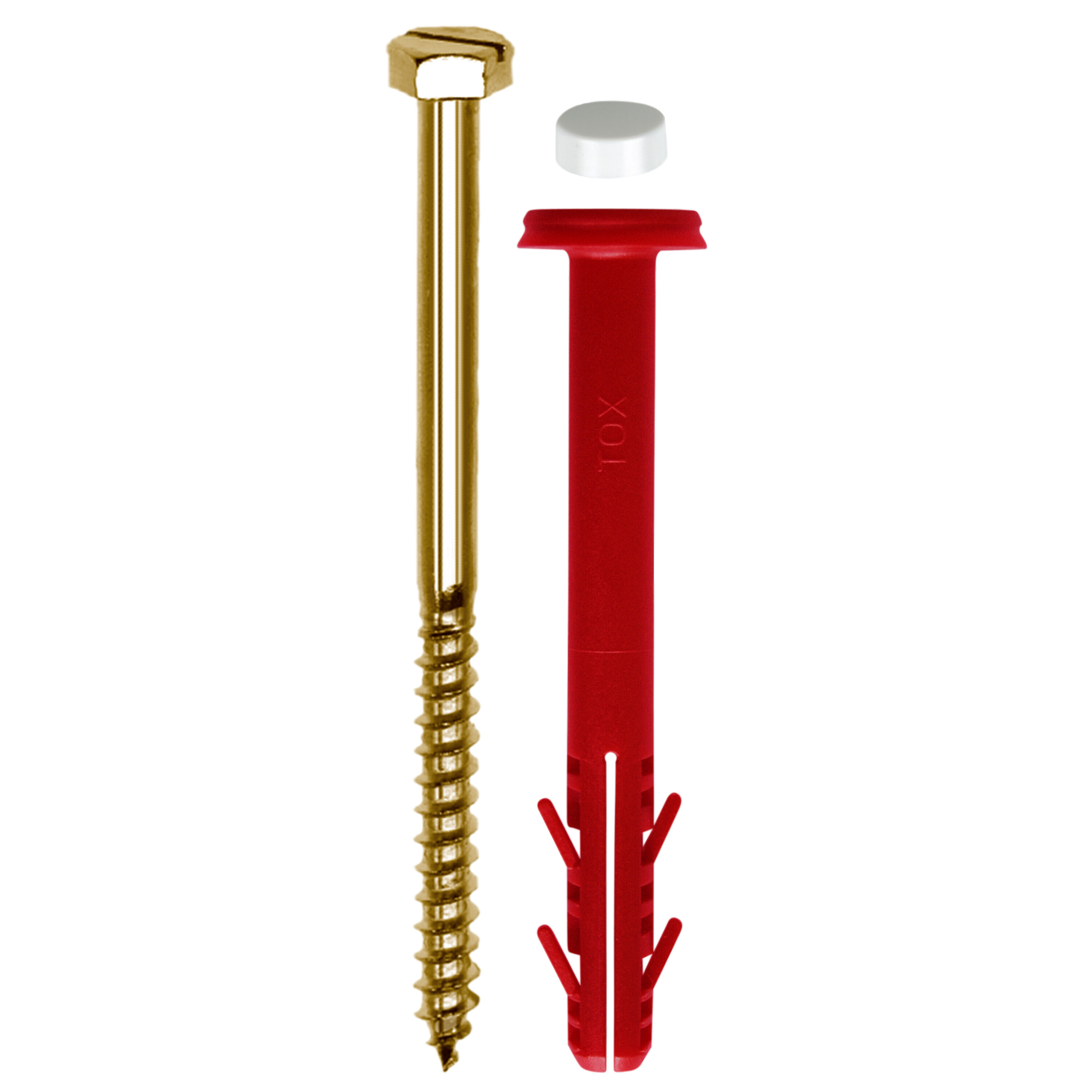

The TOX Toilet XL Cap floor-standing toilet fixing set is supplied in a practical bag with 2x red plugs with shank, brass screws and white cover caps: this guarantees that everything is neatly stowed away, can be transported safely and is quickly to hand.
The TOX Toilet XL Cap floor-standing toilet fixing set is supplied in a practical bag with 2x red plugs with shank, brass screws and white cover caps.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 40 |
|---|---|
| Area of application: | Indoors |
| Diameter: | 8 |
| Diameter of included screw: | 6 |
| Drill diameter: | 8 |
| Drill hole depth: | 90 |
| Length of included screw: | 85 |
| Plug dimension: | 8 x 80 |
| Property: | Stand-WC-Befestigung |
| Beton C20/25 | 80 Kg |
|---|---|
| Vollstein MZ 12 | 70 Kg |

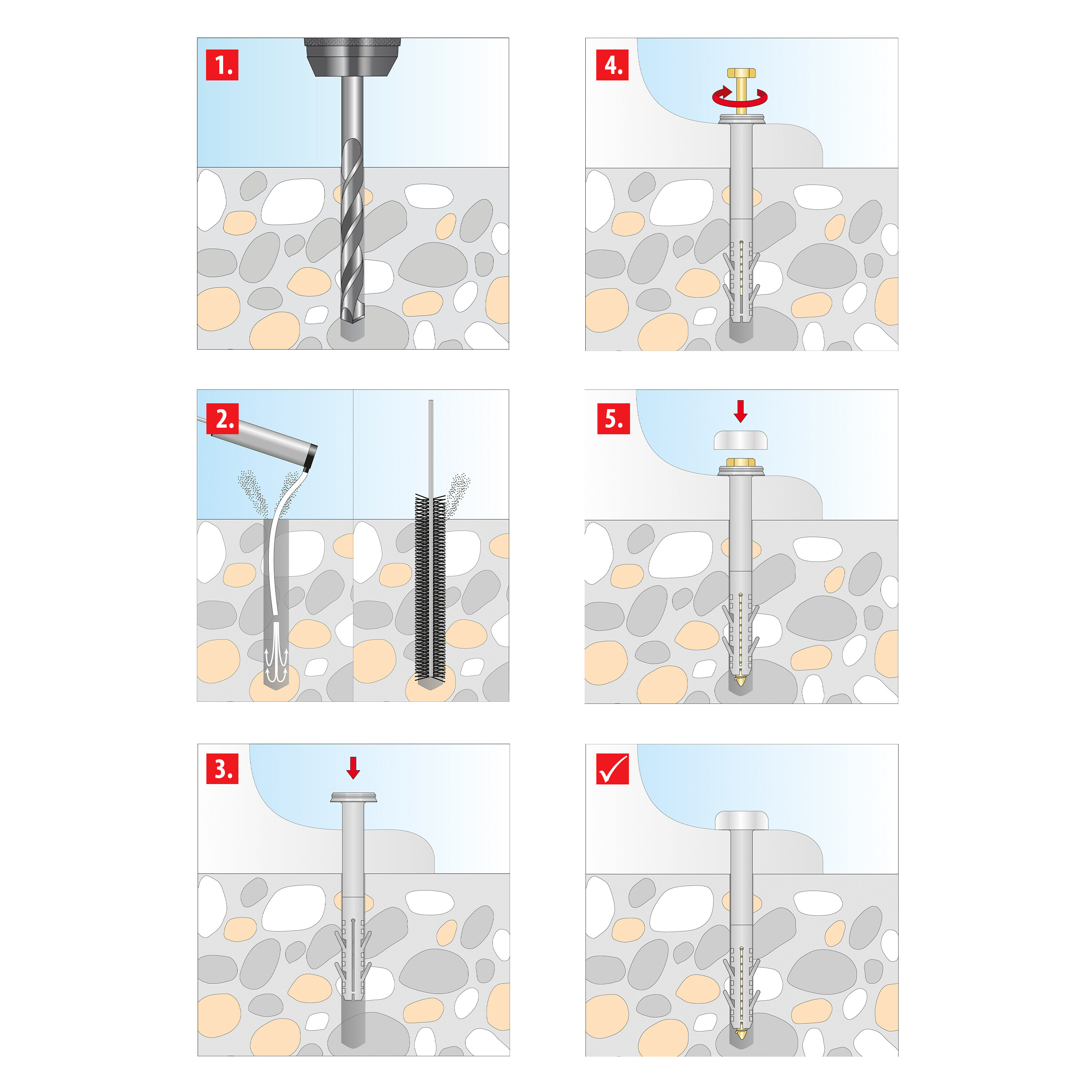

Safety instructions
- The anchoring depth of the wall plug must be observed
- Drilling method and drill hole cleaning must be adapted to the building material
- The recommended loads only apply to installation in the building material, not for installation in joints
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
