composite mortar

Liquix Pro 1

Product number: 084600041
  • One for all: Building authority approval for cracked & non-cracked concrete, perforated and solid brick and post-installed reinforcement connections
  • LEED and emission-tested: for ecological and healthy living
  • Commercially available threaded rods can be used (according to approval)
  • Earthquake-tested C1
  • Processing even possible at extremely low temperatures (down to -10 degrees C)
  • Can be used in wet and water-filled drill holes
  • Low center and edge distances due to expansion-free anchorage
  • Fixing heavy loads weighing up to 13.3 tons
  • Can also be processed overhead
  • Reuse the opened cartridge by changing the static mixer
  • Variable anchorage depth - saves time and material
Product information "Liquix Pro 1"

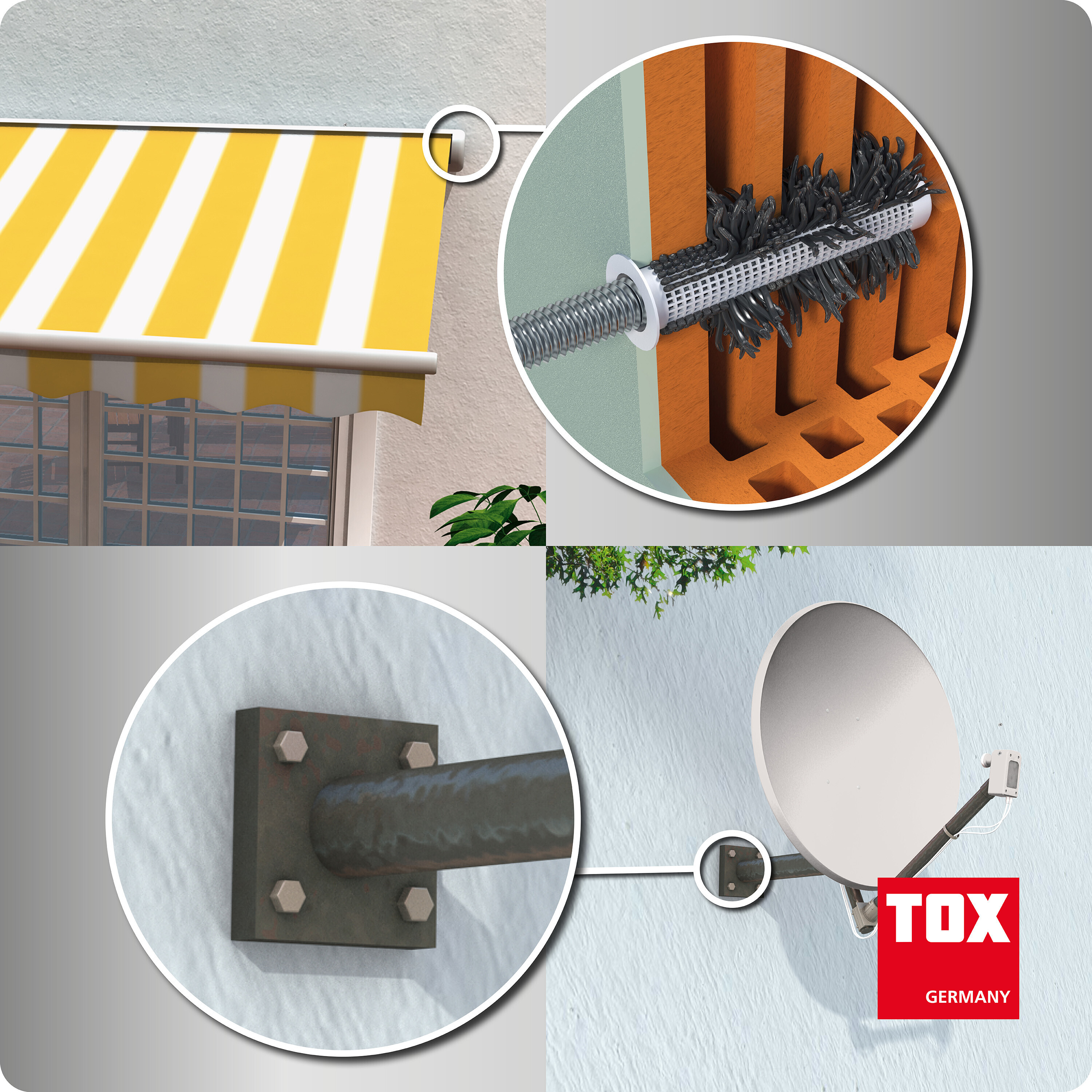

The styrene-free, vinyl ester composite mortar Liquix Pro 1 is a real all-rounder for approval-relevant fixings in cracked and non-cracked concrete and masonry - even subsequent reinforcement connections are possible! Thanks to the expansion pressure-free anchorage, the Liquix Pro 1 offers low axial and edge distances and the variable anchorage depth saves time and material. With a load capacity of up to 13.3 tons, you can also fix extremely high loads. The ability to work at extremely low temperatures down to -10 degrees Celsius is also a great advantage. It can also be used in wet and water-filled drill holes. The waterproof fixing has been tested in accordance with DIN EN 12390-8 and it is LEED-certified and emission-tested, so you can ensure ecological and healthy living. Whether overhead or in other difficult places, the Liquix Pro 1 mortar can be applied effortlessly. The injection mortar can be used with standard threaded rods or the TOX Stix threaded rod - for flexibility and versatility on the construction site! If you have an opened cartridge, you can simply change the static mixer and reuse the leftovers.

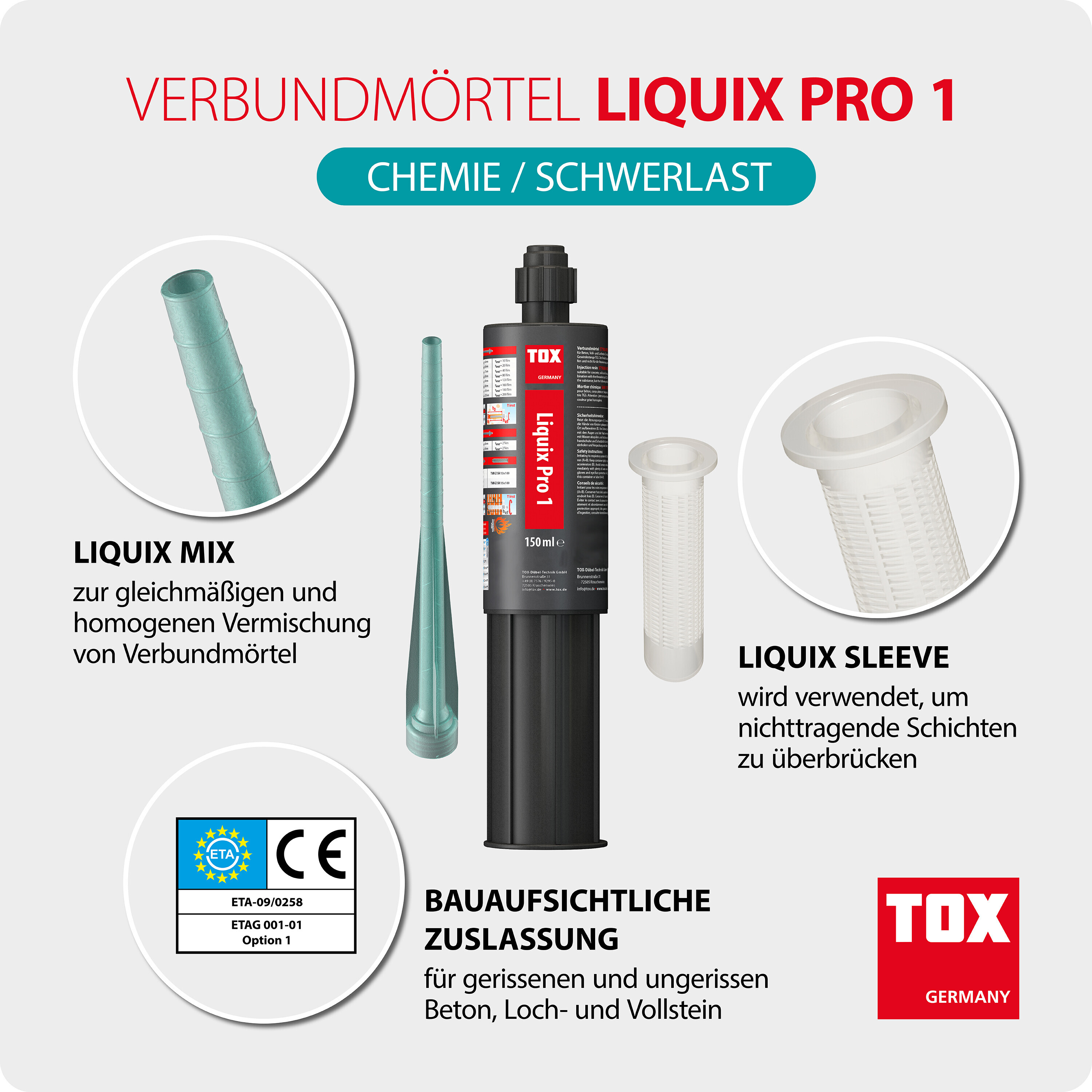

Supplied with 1x Liquix Pro 1 styrene-free composite mortar 150 ml, together with 2x Liquix Mix static mixer and 4x Liquix Sleeve Pro sieve sleeve in a hangable box.

The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.

Approval number: ETA-09/0258;ETA-13/0047;ETA-17/0338
Area of application: Indoors and outdoors
Property: Verbundmörtel

Safety instructions

  • The specified loads refer to anchorings of single anchors in wet and dry concrete as well as for anchorings from -40° C to +24° C (or briefly up to +40° C)
  • When sizing, the entire declaration of performance of the Liquix Pro 1 must be observed
  • The partial safety factors of the resistances specified in the approval and a partial safety factor of γF = 1.4 are to be considered
  • Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
  • 1 The anchoring depth hef can be freely selected between the values hef min und hef max
  • The specified loads refer to anchorings of a single anchor without environmental effects as well as for anchorings from -40° C to +24° C (or briefly up to +40° C)
  • The partial safety factors of the resistances and a partial safety factor of γF = 1.4 are to be considered
  • For other masonry types see approval ETA-13/0047
Product information "Liquix Pro 1"

The styrene-free, vinyl ester composite mortar Liquix Pro 1 is a real all-rounder for approval-relevant fixings in cracked and non-cracked concrete and masonry - even subsequent reinforcement connections are possible! Thanks to the expansion pressure-free anchorage, the Liquix Pro 1 offers low axial and edge distances and the variable anchorage depth saves time and material. With a load capacity of up to 13.3 tons, you can also fix extremely high loads. The ability to work at extremely low temperatures down to -10 degrees Celsius is also a great advantage. It can also be used in wet and water-filled drill holes. The waterproof fixing has been tested in accordance with DIN EN 12390-8 and it is LEED-certified and emission-tested, so you can ensure ecological and healthy living. Whether overhead or in other difficult places, the Liquix Pro 1 mortar can be applied effortlessly. The injection mortar can be used with standard threaded rods or the TOX Stix threaded rod - for flexibility and versatility on the construction site! If you have an opened cartridge, you can simply change the static mixer and reuse the leftovers.

Supplied with 1x Liquix Pro 1 styrene-free composite mortar 150 ml, together with 2x Liquix Mix static mixer and 4x Liquix Sleeve Pro sieve sleeve in a hangable box.

The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.

Approval number: ETA-09/0258;ETA-13/0047;ETA-17/0338
Area of application: Indoors and outdoors
Property: Verbundmörtel

Safety instructions

  • The specified loads refer to anchorings of single anchors in wet and dry concrete as well as for anchorings from -40° C to +24° C (or briefly up to +40° C)
  • When sizing, the entire declaration of performance of the Liquix Pro 1 must be observed
  • The partial safety factors of the resistances specified in the approval and a partial safety factor of γF = 1.4 are to be considered
  • Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
  • 1 The anchoring depth hef can be freely selected between the values hef min und hef max
  • The specified loads refer to anchorings of a single anchor without environmental effects as well as for anchorings from -40° C to +24° C (or briefly up to +40° C)
  • The partial safety factors of the resistances and a partial safety factor of γF = 1.4 are to be considered
  • For other masonry types see approval ETA-13/0047
