downpipe fixing
Thermo Vario

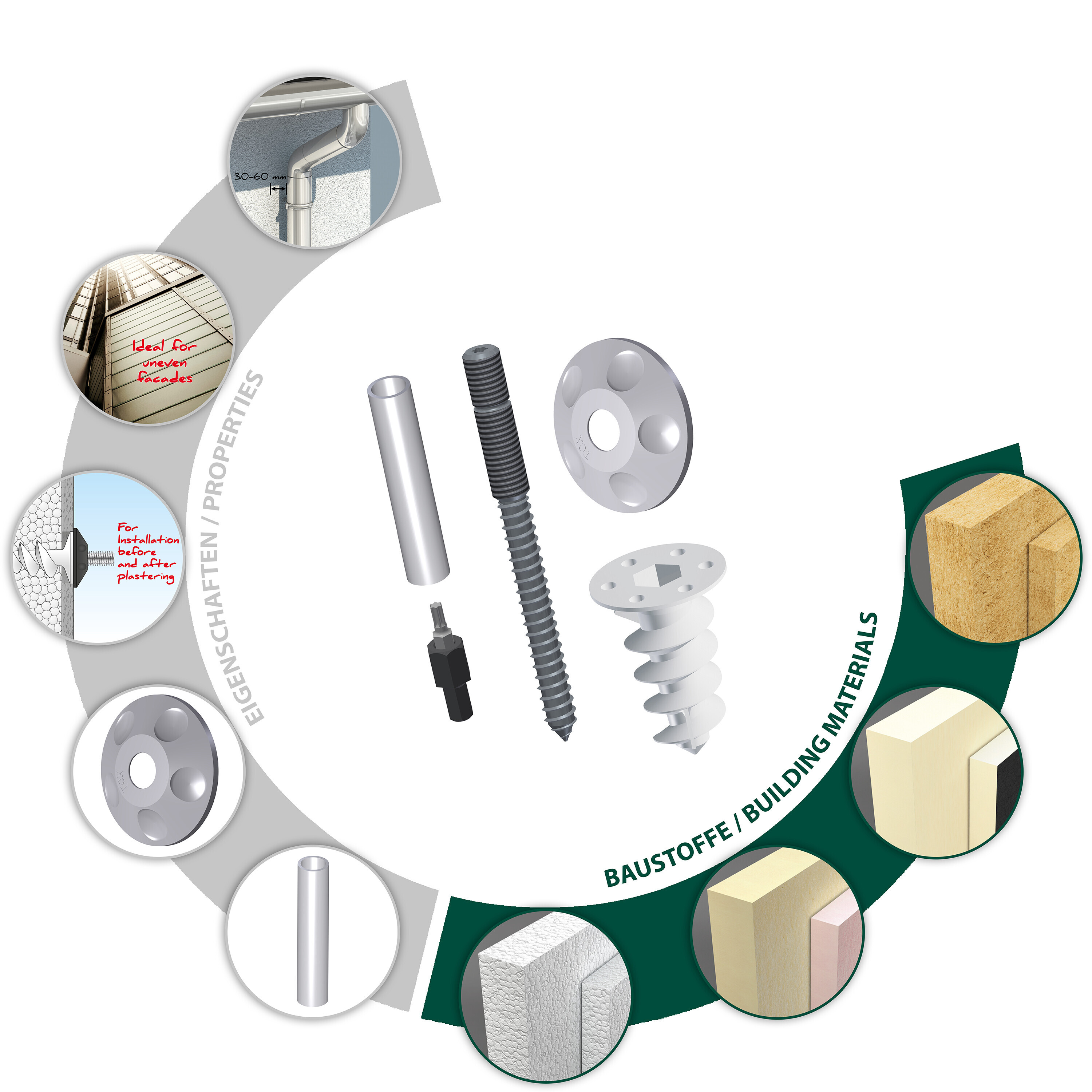

The TOX Thermo Vario downpipe fixing set is the ideal solution for fixing downpipes, flower grilles, etc. in ETICS systems. The variable downpipe fixing is ideal for uneven facades and allows installation before and after plastering. The set includes an adjustable hanger bolt, a Thermo Plus insulation plug, a flexible cover cap to protect against rain and splash water and a protective sleeve to prevent soiling of the thread during plastering.
- Variable downpipe fixing for downpipe spacing 30 - 60 mm
- Ideal for uneven facades thanks to adjustable hanger bolt
- For installation before and after plastering
- Flexible Flexi Cap cover cap protects against rain and spray water
- Protective cover prevents soiling of the thread during plastering

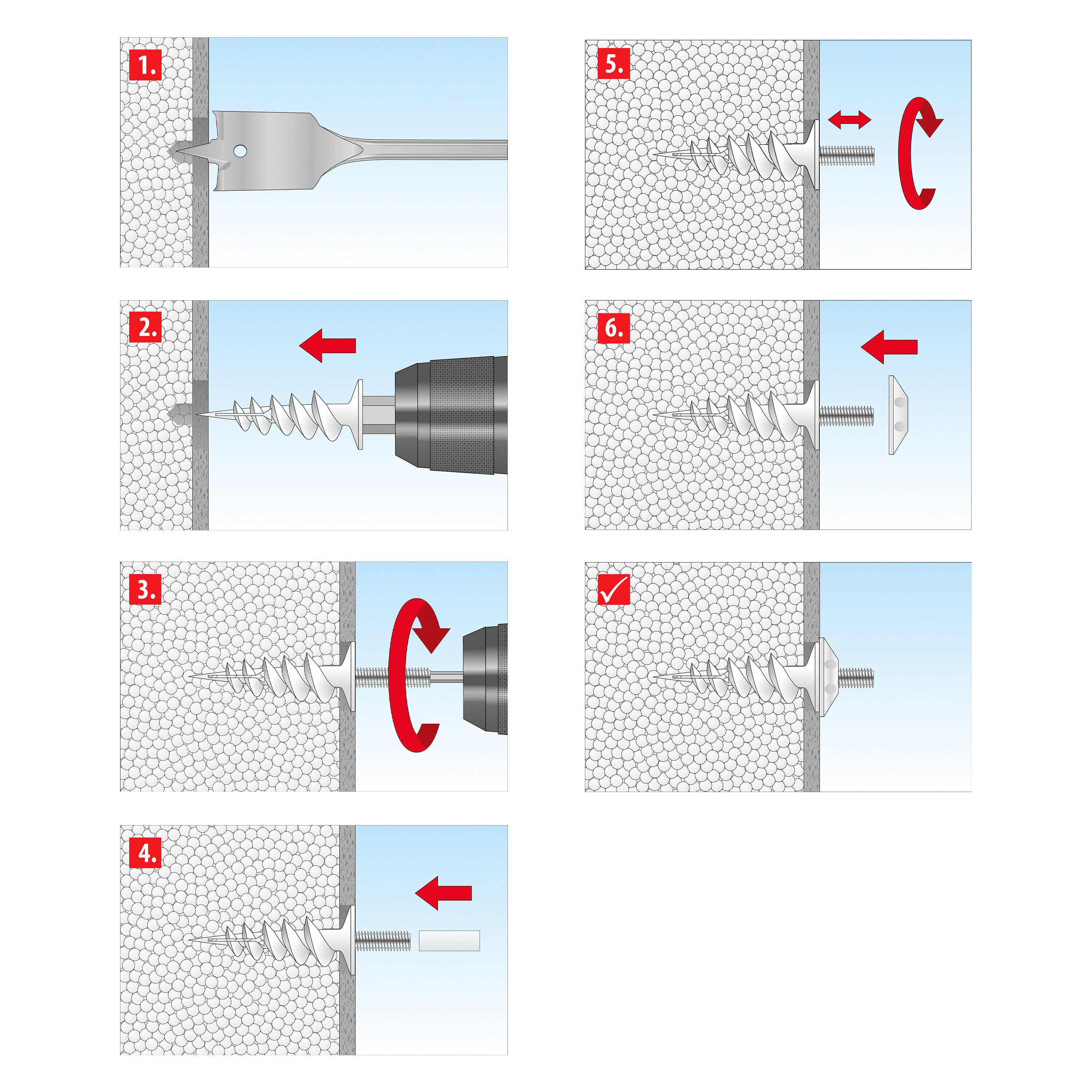

- Installation with setting tool without changing tools
- Thermal separation with Thermo Plus insulation plug

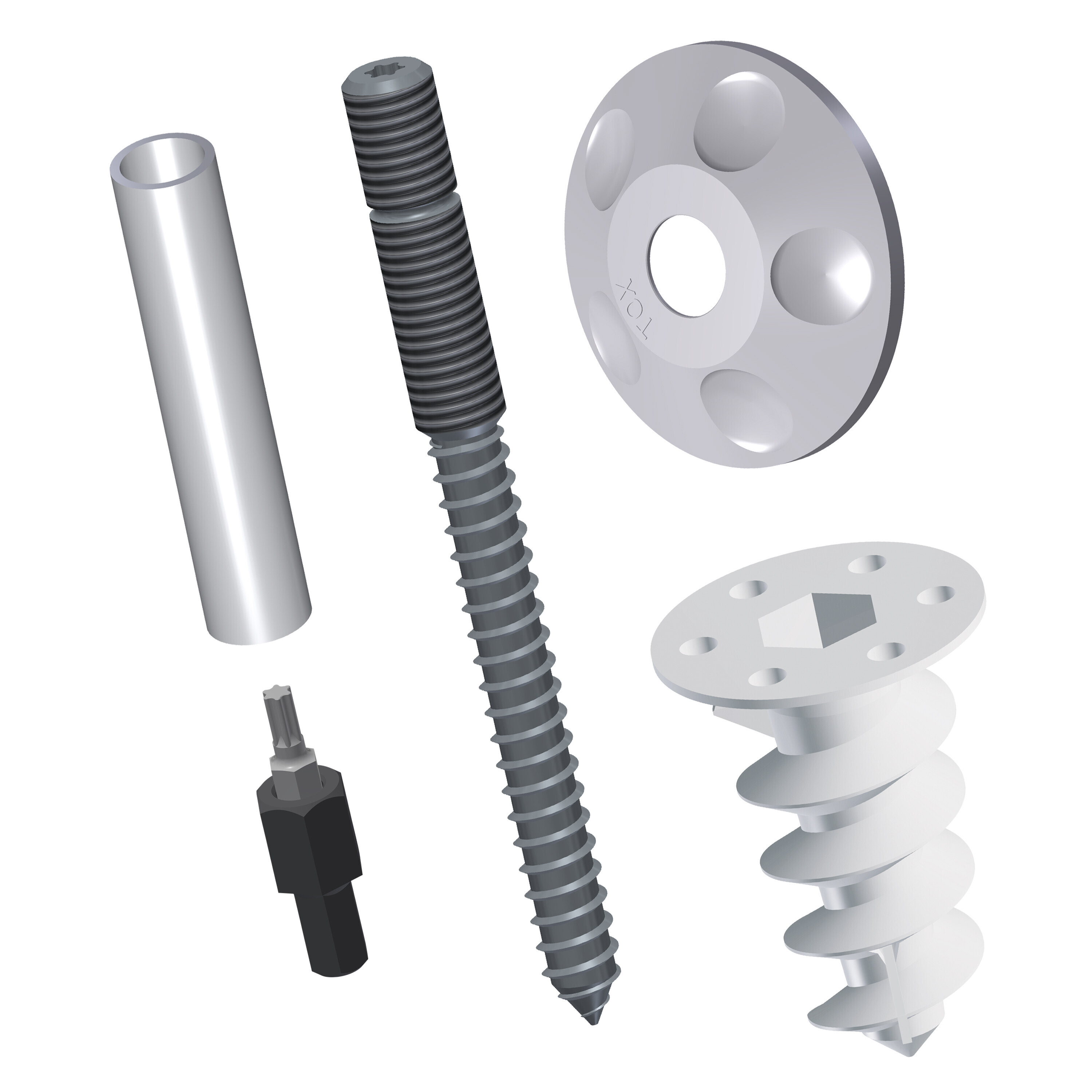

The TOX Thermo Vario downpipe fixing is supplied in a practical bag with 4x plugs, hanger bolts, protective sleeves, cover caps and a setting tool: This guarantees that everything is neatly stowed away, can be transported safely and is quickly to hand.
The Thermo Vario downpipe fixing is supplied in a practical bag with 4x plugs, hanger bolts, protective sleeves, cover caps and a setting tool.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 85 |
|---|---|
| Area of application: | Indoors and outdoors |
| Diameter of included screw: | 10 |
| Length of included screw: | 110 |
| Plug dimension: | 85 |
| Property: | Fallrohrbefestigung |
| EPS 20 mm | 8 Kg |
|---|---|
| XPS 20 mm | 10 Kg |
| PUR | 8 Kg |
| Holzfaserdämmplatte | 10 Kg |
Safety instructions
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
