composite mortar
Liquix Base P7
Liquix Base P7 is a styrene-free polyester composite mortar for all standard heavy-duty applications. The injection mortar is suitable for code-compliant fastenings in non-cracked concrete as well as in masonry made of solid and perforated brick, and is available in various cartridge types and sizes with the Liquix Fusion static mixer.
The composite mortar can be used with standard threaded rods (as per approval) as well as the TOX Stix threaded rod. It can be applied overhead and is suitable for use in both dry and water-filled drill holes. The variable anchorage depth saves time and material.
Liquix Base P7 is LEED-certified and emission-tested. The transparent cartridge with a readable scale facilitates dosing and provides greater control over the fill volume in the drill hole. Thanks to the new foil pouch system with a patented closure, there is no need to cut open the pouch. Partially used cartridges can be reused by replacing the static mixer. The patented Liquix Fusion static mixer reduces effort, waste, and unused mortar in the nozzle; the mixer can be shortened and is suitable for hard-to-reach areas. Storeable at 0–30 degrees C.

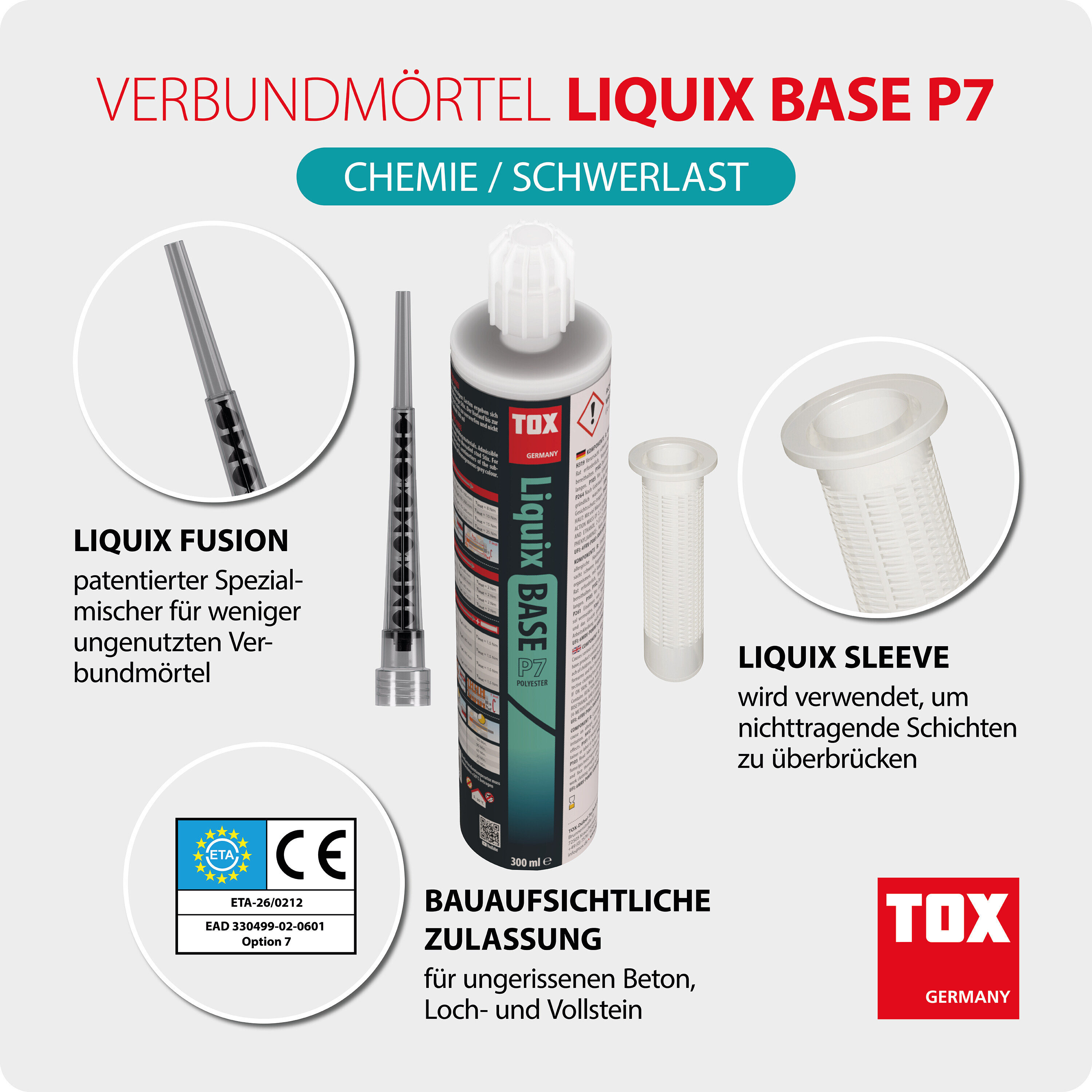

The package includes 1 x Liquix Base P7 styrene-free composite mortar (345 ml), along with 2 x Liquix Mix static mixers, 4 x Liquix Sleeve 16 x 85, 4x Stix M10 x 130 in a convenient set.
The red all-purpose plug made TOX famous: The company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently tailored to the needs of customers and end users. The TOX brand stands for innovative products and expert solutions in the field of fastening technology.
| Approval number: | ETA-26/0212, ETA-26/0213 |
|---|---|
| Area of application: | Indoors and outdoors |
| Property: | Verbundmörtel |
Safety instructions
- The specified loads refer to anchorings of single anchors in wet and dry concrete as well as for anchorings from -40° C to +24° C (or briefly up to +40° C)
- The partial safety factors of the resistances specified in the approval and a partial safety factor of γF = 1.4 are to be considered
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
- 1 The anchoring depth hef can be freely selected between the values hef min und hef max
