installation system
Thermo Proof Mini

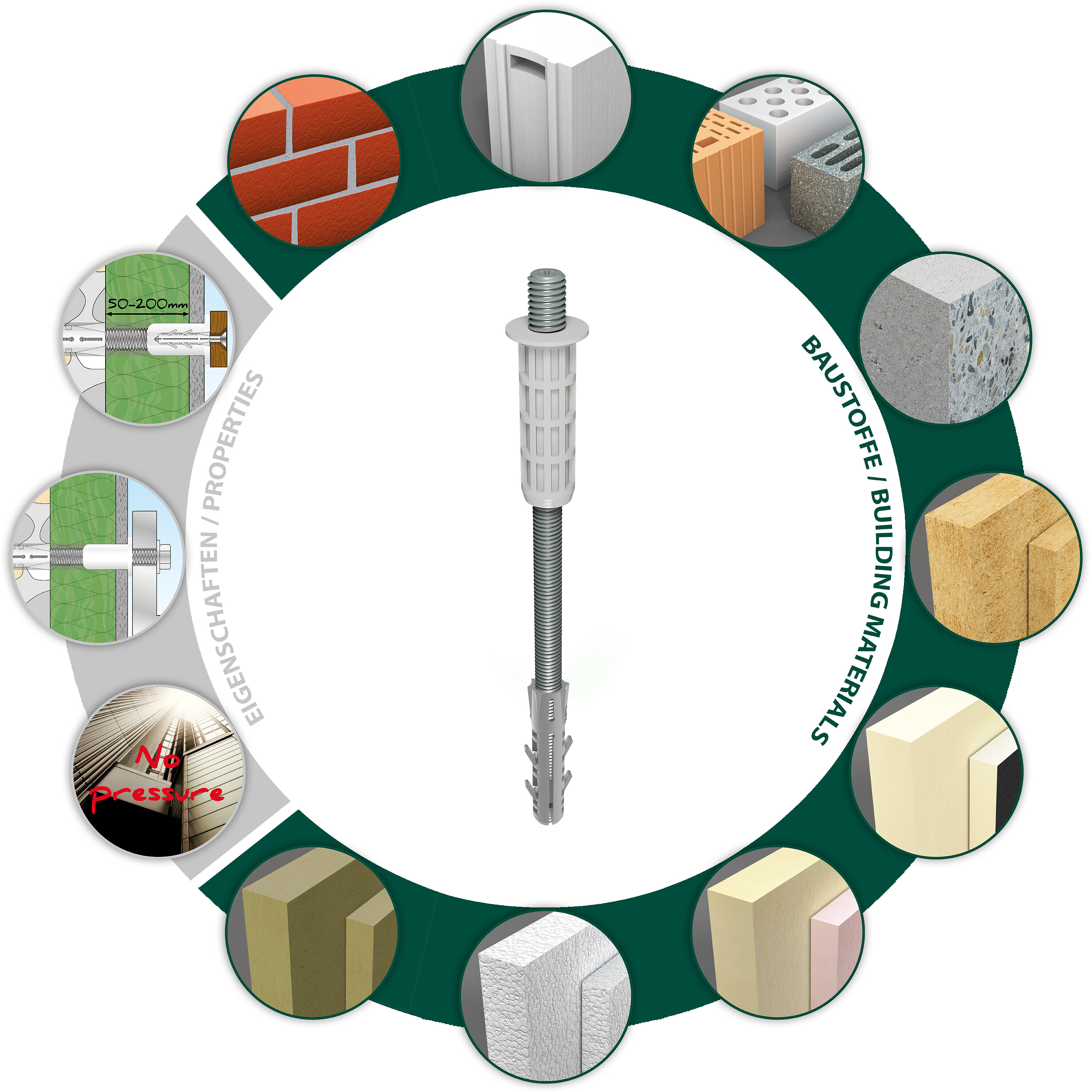

The Thermo Proof Mini stand-off installation system is ideal for the installation of light loads in soft insulation with insulation thicknesses of up to 120 mm. The threaded rod creates no thermal bridges and virtually no energy loss. The threaded rod with variable connection options with M10 external thread, M6 internal thread or screws with a diameter of 3-5 mm can be installed quickly and easily.
- Specially for soft insulation materials such as mineral wool
- For insulation thicknesses from 50-120 mm
- Variable connection options (M10 external thread, M6 internal thread or screws with a diameter of 3-5 mm)
- No thermal bridge
- No compressive load on the facade
- Slim head geometry for invisible fixings

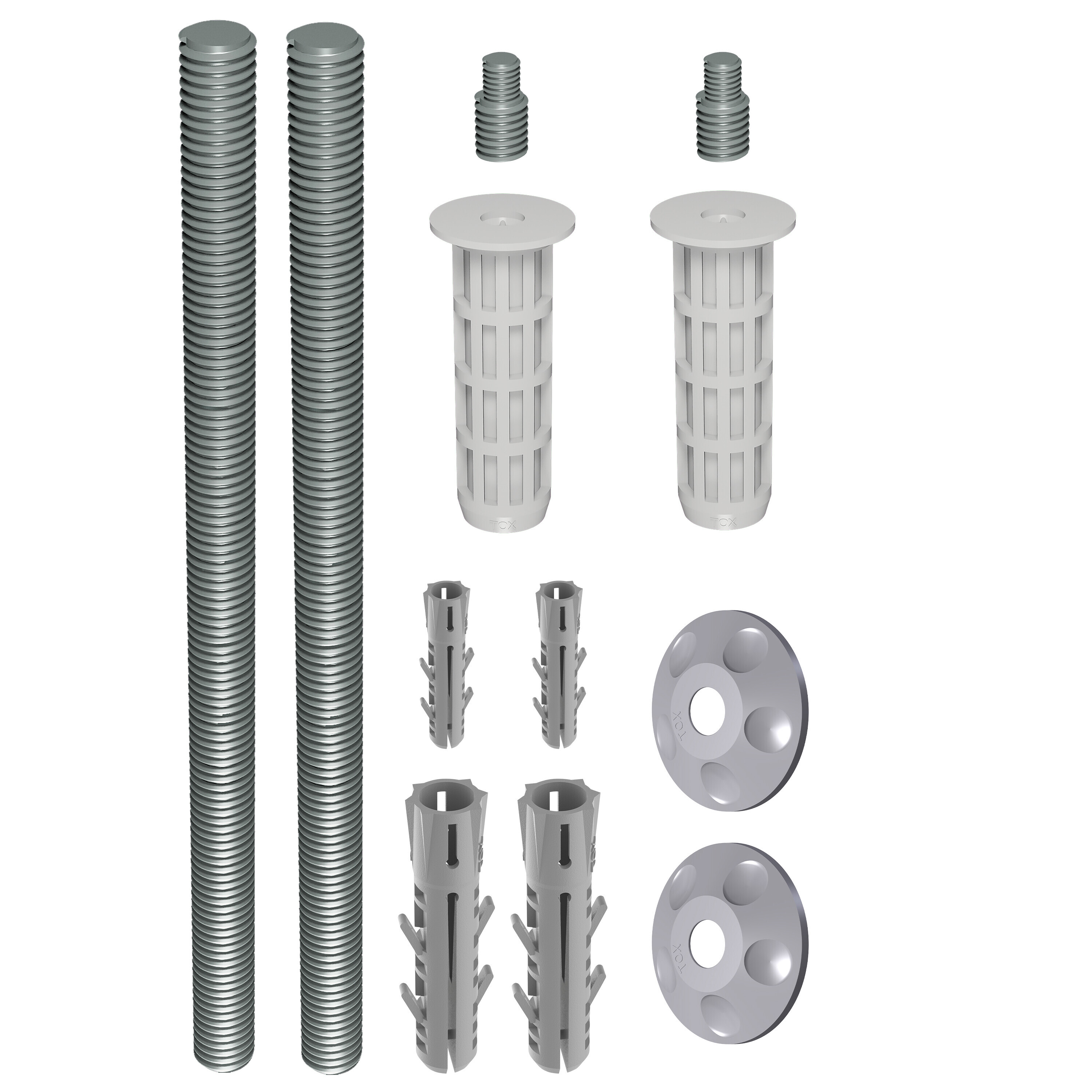

The Thermo Proof Mini is supplied in a bag with 2x threaded rod M8x120 mm, 2x thread adapter M6/M10, 2x Barracuda 14/70, 2x Barracuda 5/25 and 1x bit TX50.
The Thermo Proof Mini is supplied in a bag with 2x threaded rod M8x120 mm, 2x thread adapter M6/M10, 2x Barracuda 14/70, 2x Barracuda 5/25 and 1x bit TX50.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 70 |
|---|---|
| Area of application: | Indoors and outdoors |
| Diameter: | 14 |
| Drill diameter: | 14 |
| Drill hole depth: | 90 |
| Length of included screw: | 35 |
| Plug dimension: | M8/120 |
| Property: | Mounting system |
| Suitable screw diameter: | M6, chipboard screws 3 - 5mm |
| Beton C20/25 | 100* Kg |
|---|---|
| Vollstein MZ 12 | 50* Kg |
| Hochlochziegel ≥ Hlz12 Rohdichte 1 kg/dm³ | 20* Kg |
| Hohlblockstein ≥ Hbl2 | 10* Kg |
| Porenbeton ≥ PB2, PP2 | 40* Kg |
| Porenbeton ≥ PB4, PP4 | 40** Kg |
| EPS 20 mm | 15** Kg |
| XPS 20 mm | 15** Kg |
| PUR | 15** Kg |
| Holzfaserdämmplatte | 15** Kg |

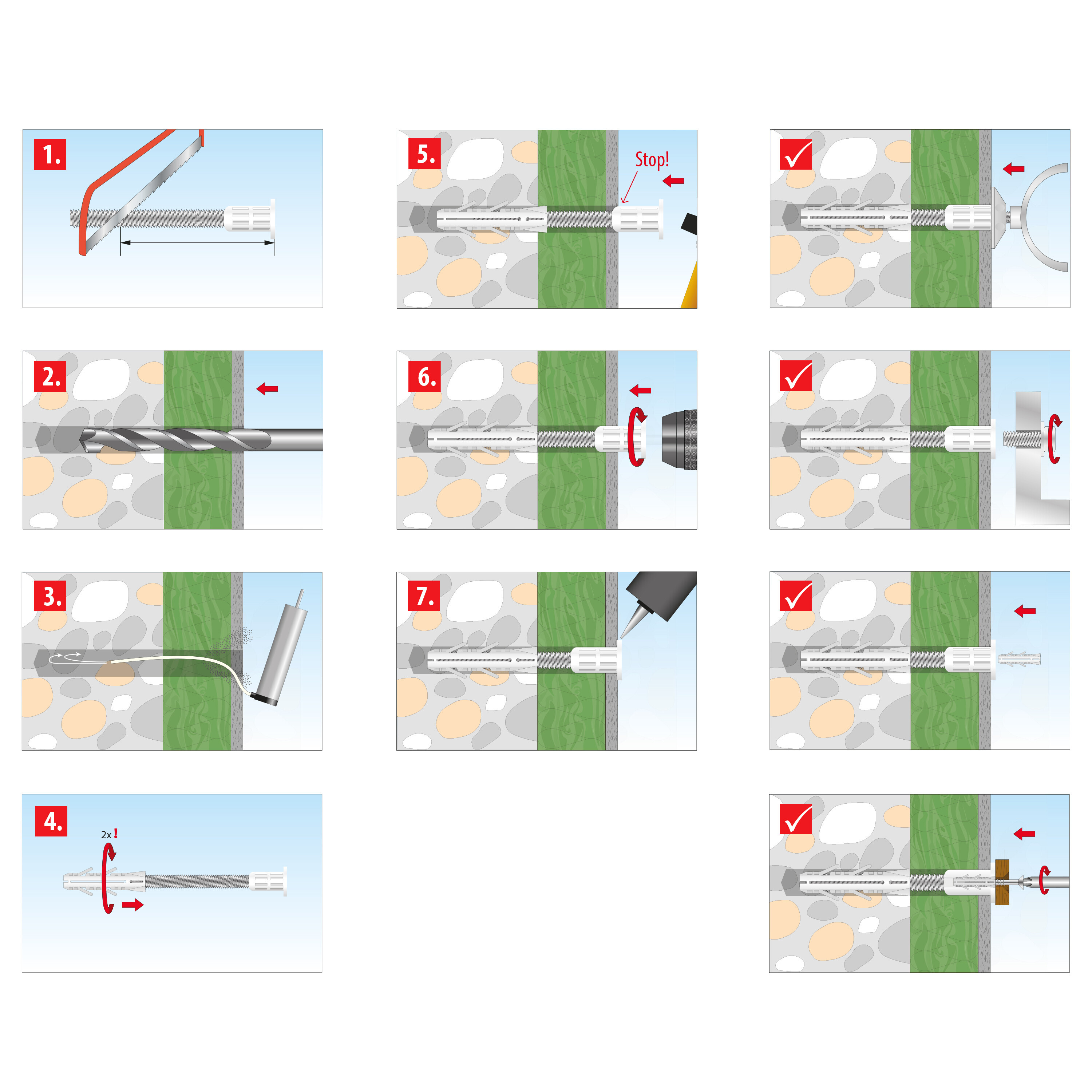

Safety instructions
- The anchoring depth of the wall plug must be observed
- Drilling method and drill hole cleaning must be adapted to the building material
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
- * The max. tensile load when used with Barracuda 5/25 in the Iso-Spacer is limited to 35 kg
- ** Applies to insulation materials with plaster thicknesses ≥ 5m
