Metal frame plug
Window

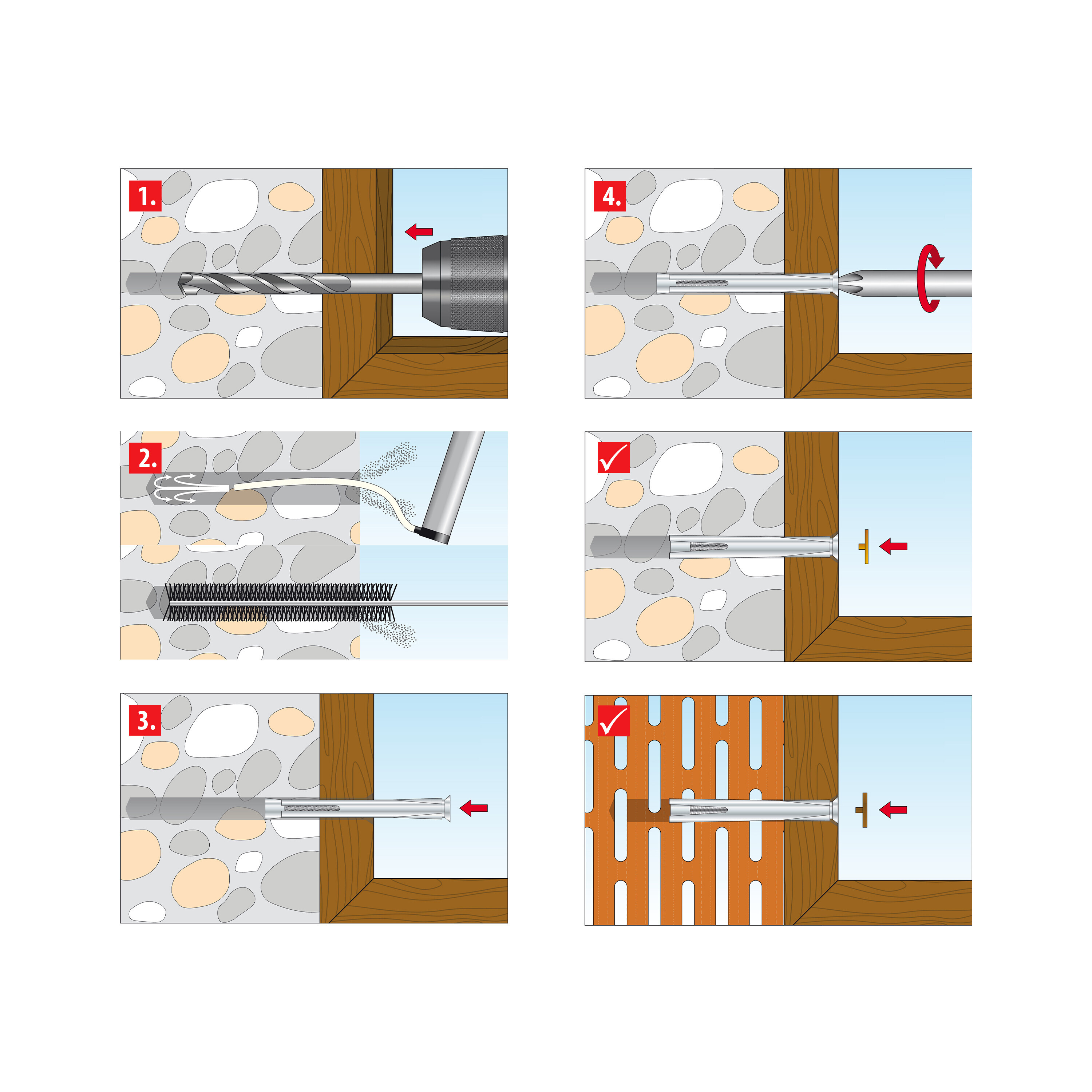

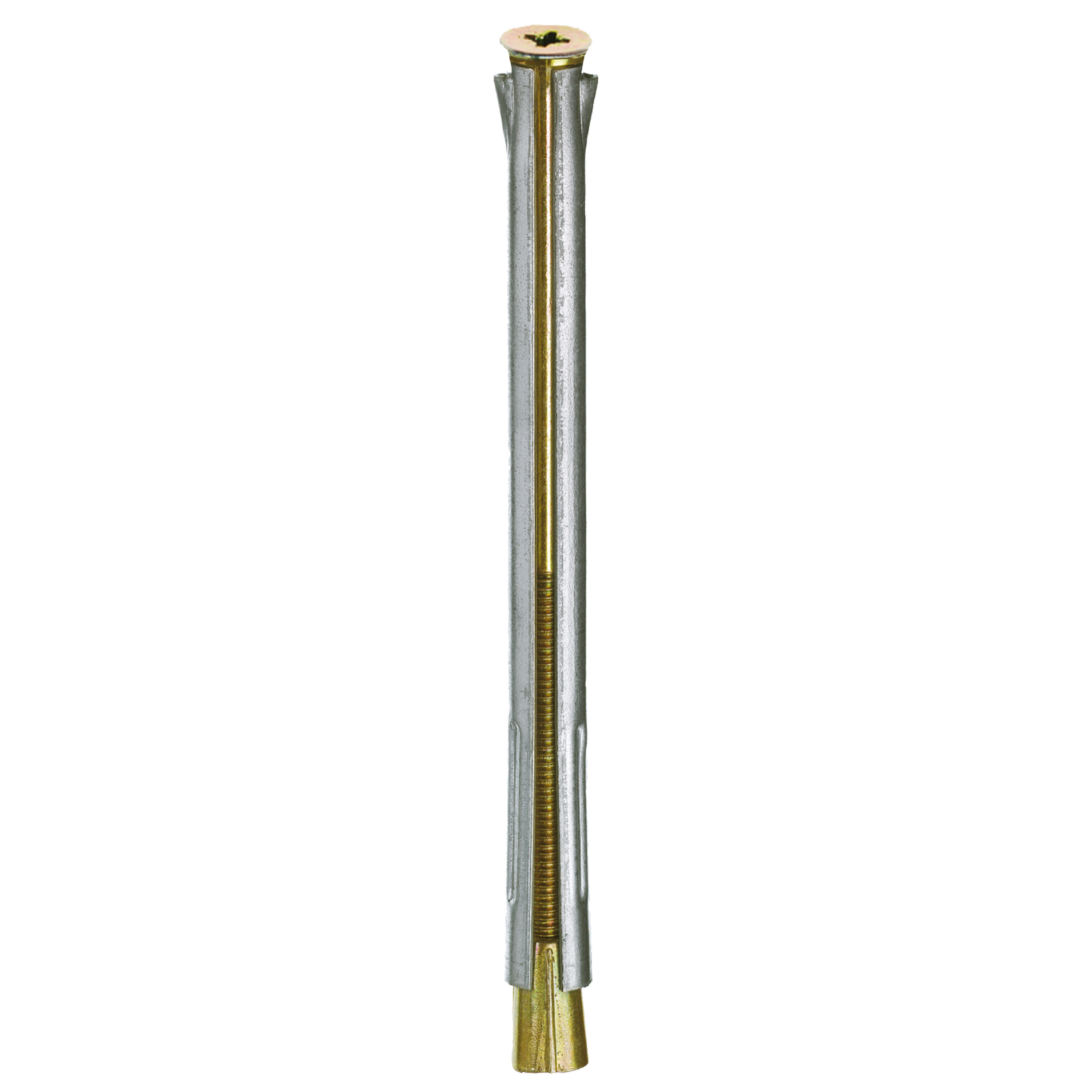

The Window metal frame plug offers reliable and permanent fixing. Whether tensile forces or compressive loads - this plug can withstand them! Installation is easy and convenient and does not require any tedious backing or wedging of the frame. The zinc-plated window frame plug is suitable for push-through installation and comes with a pre-assembled, metric M6 countersunk head screw (PZ3 drive). With the help of the screw head cover caps, you can install the plugs inconspicuously and in a visually appealing way so that they blend harmoniously into the overall appearance of the windows. The Window offers effective protection against corrosion thanks to its aluminum-zinc coating. This means it retains its stability for years to come. With its fire resistance in accordance with DIN 4102 (class A1), it also ensures additional safety.
The Window 10/182 metal frame plug is supplied in a handy bag containing 6 pieces.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 30 |
|---|---|
| Area of application: | Indoors |
| Clearance hole diameter: | 10 |
| Diameter: | 10 |
| Drill diameter: | 10 |
| Drill hole depth: | 200 |
| Plug dimension: | 10 x 182 |
| Property: | Metall-Rahmendübel |
| Beton C20/25 | 100 Kg |
|---|---|
| Vollstein MZ 12 | 70 Kg |
| Hochlochziegel ≥ Hlz12 Rohdichte 1 kg/dm³ | 40 Kg |
| Porenbeton ≥ PB2, PP2 | 10 Kg |
Safety instructions
- The anchoring depth of the wall plug must be observed
- Drilling method and drill hole cleaning must be adapted to the building material
- The recommended loads only apply to installation in the building material, not for installation in joints
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
