Frame screw, cylinder head
Window Pro ZK

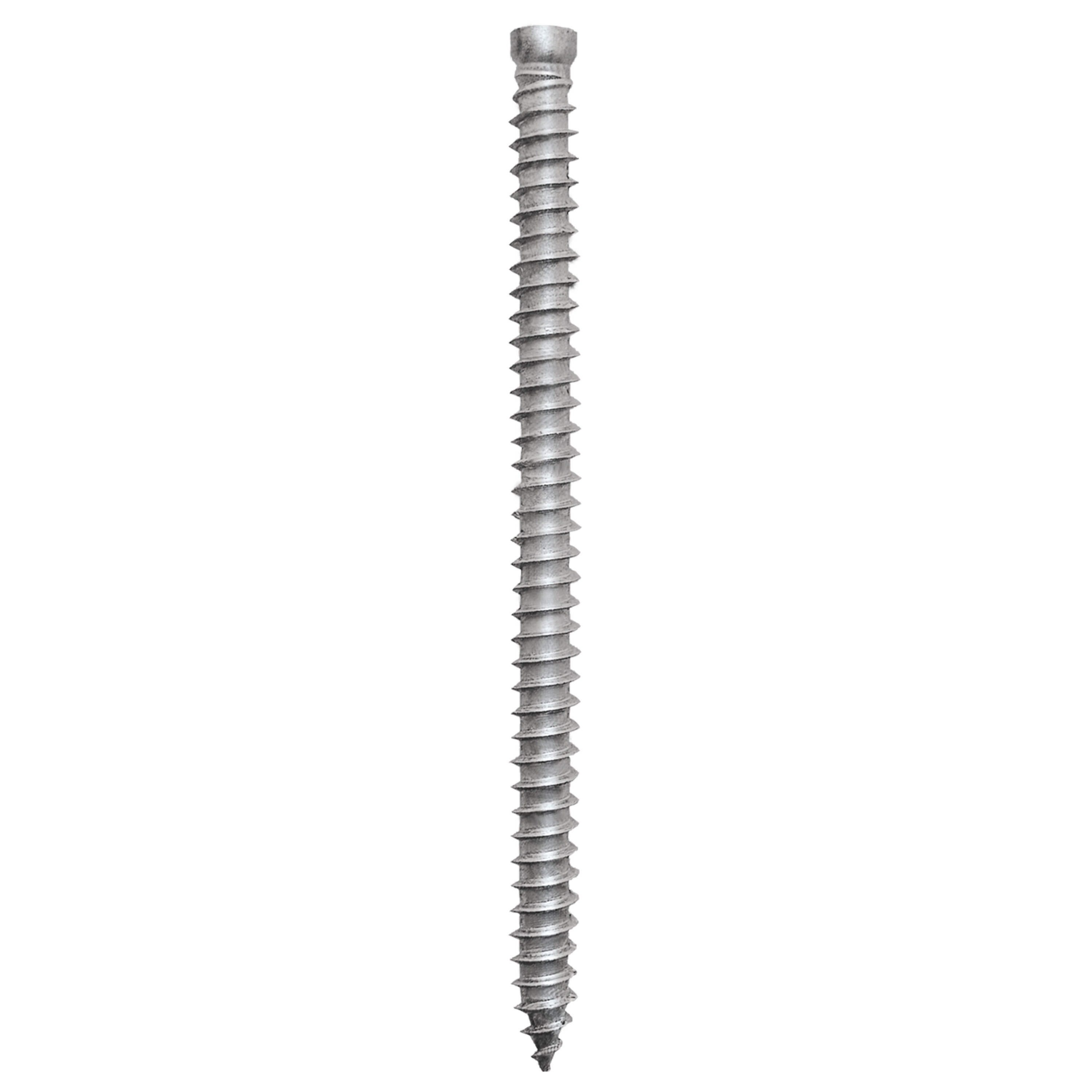

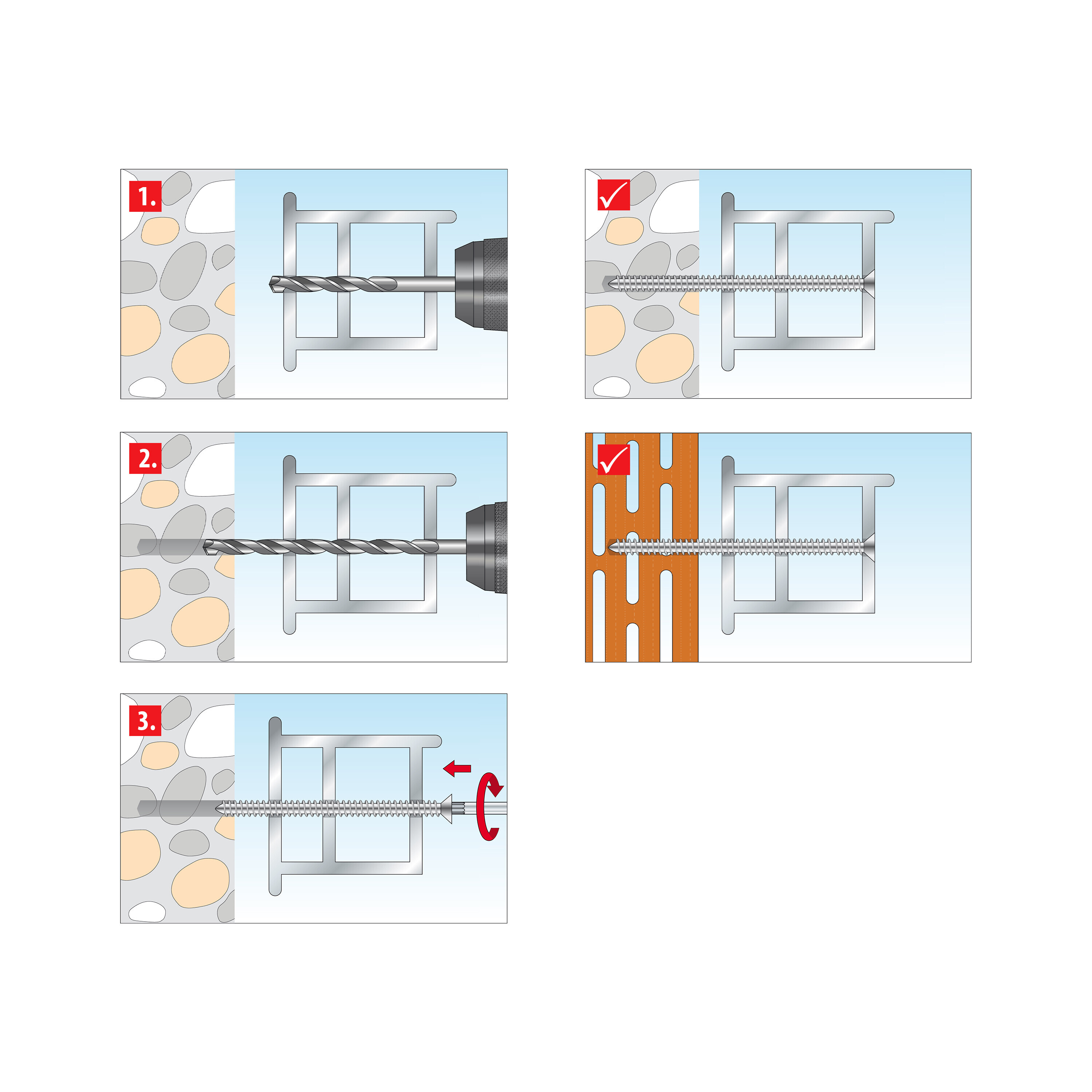

The TOX Window Pro frame screw is made of case-hardened steel with a self-tapping thread, cylinder head and TX drive. The frame screw is suitable for stress-free stand-off installation of windows, doors and squared timber. Thanks to the optimized thread, the frame screw can be screwed in without an additional plug.

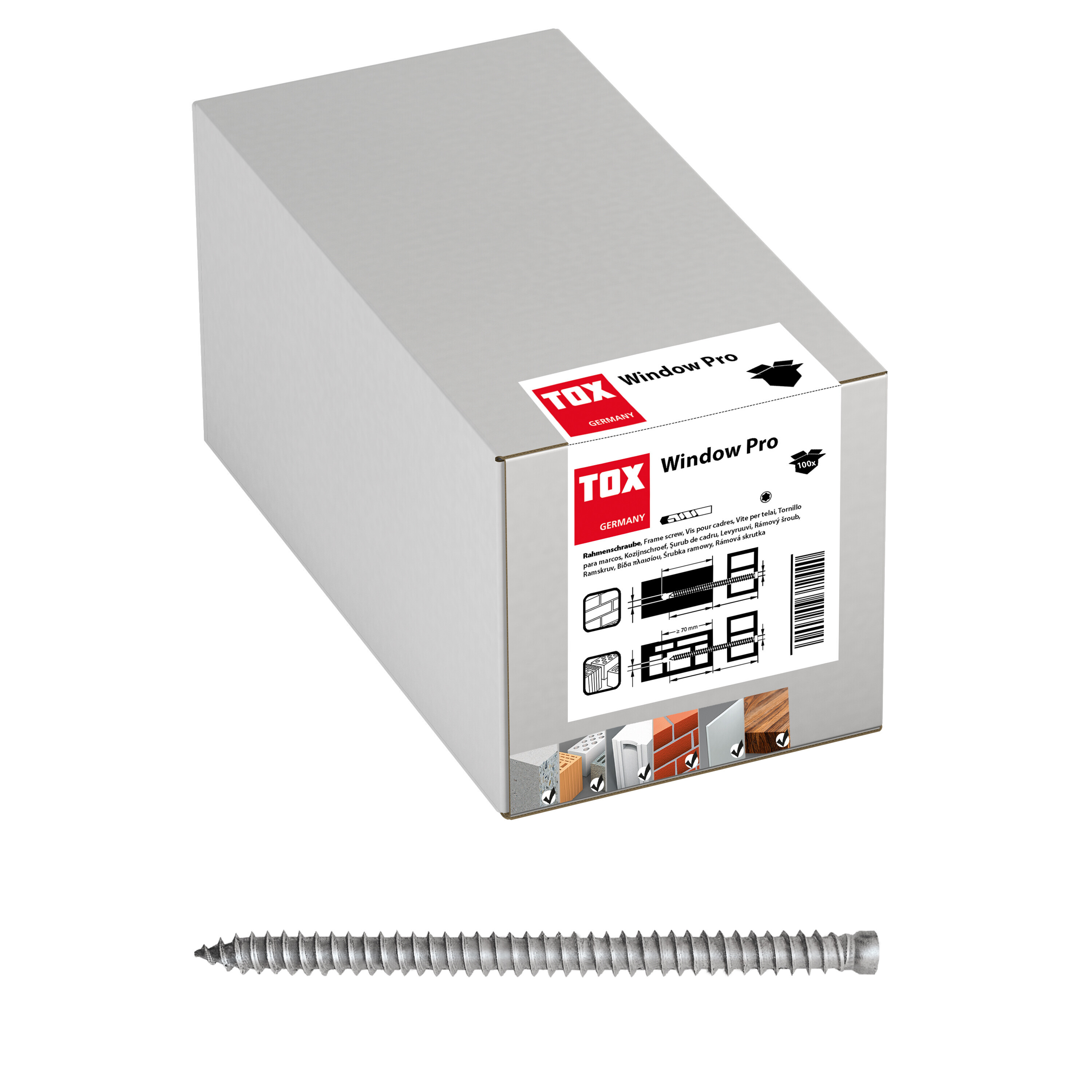

The TOX Window Pro ZK 7.5/92 mm are supplied in a sturdy box containing 100 pieces
.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Eigenschaft: | Rahmenschraube, Zylinderkopf |
|---|
The TOX Window Pro frame screw is made of case-hardened steel with a self-tapping thread, cylinder head and TX drive. The frame screw is suitable for stress-free stand-off installation of windows, doors and squared timber. Thanks to the optimized thread, the frame screw can be screwed in without an additional plug.
The TOX Window Pro ZK 7.5/92 mm are supplied in a sturdy box containing 100 pieces
.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Eigenschaft: | Rahmenschraube, Zylinderkopf |
|---|
Safety instructions
- The anchoring depth of the wall plug must be observed
- Drilling method and drill hole cleaning must be adapted to the building material
- The recommended loads only apply to installation in the building material, not for installation in joints
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
- * Holding value applies to tensile and shear force
