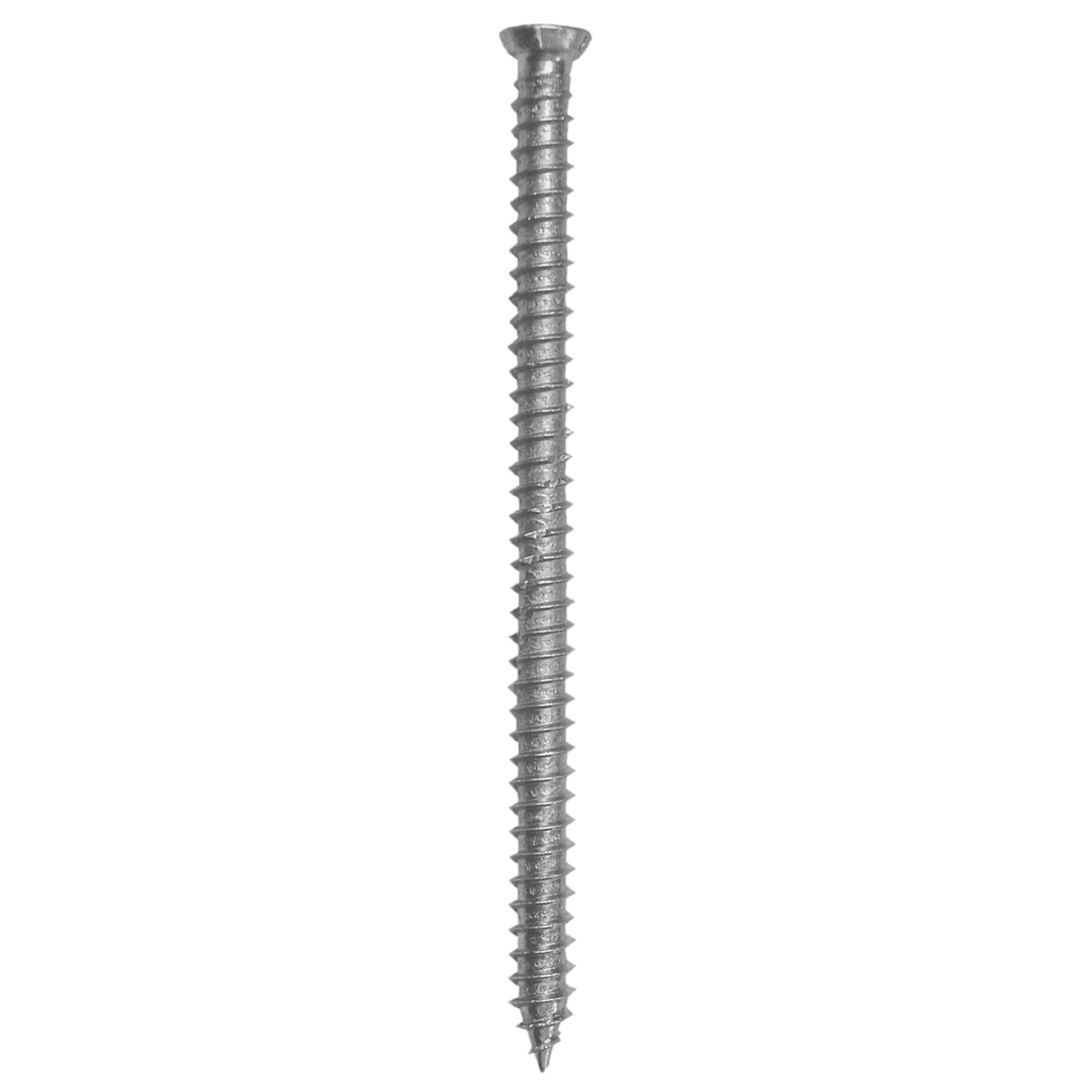

Frame screw
Window Pro SK
Product information "Window Pro SK"
Properties
- Installation with no additional wall plug
- Tension-free distance installation thanks to thread engagement in the frame and building material
- Quick installation thanks to small drill diameter
- Easy to screw in
- Optimised thread
Description and field of application
- Made of case-hardened steel with self-tapping thread and countersunk head with TX30 drive

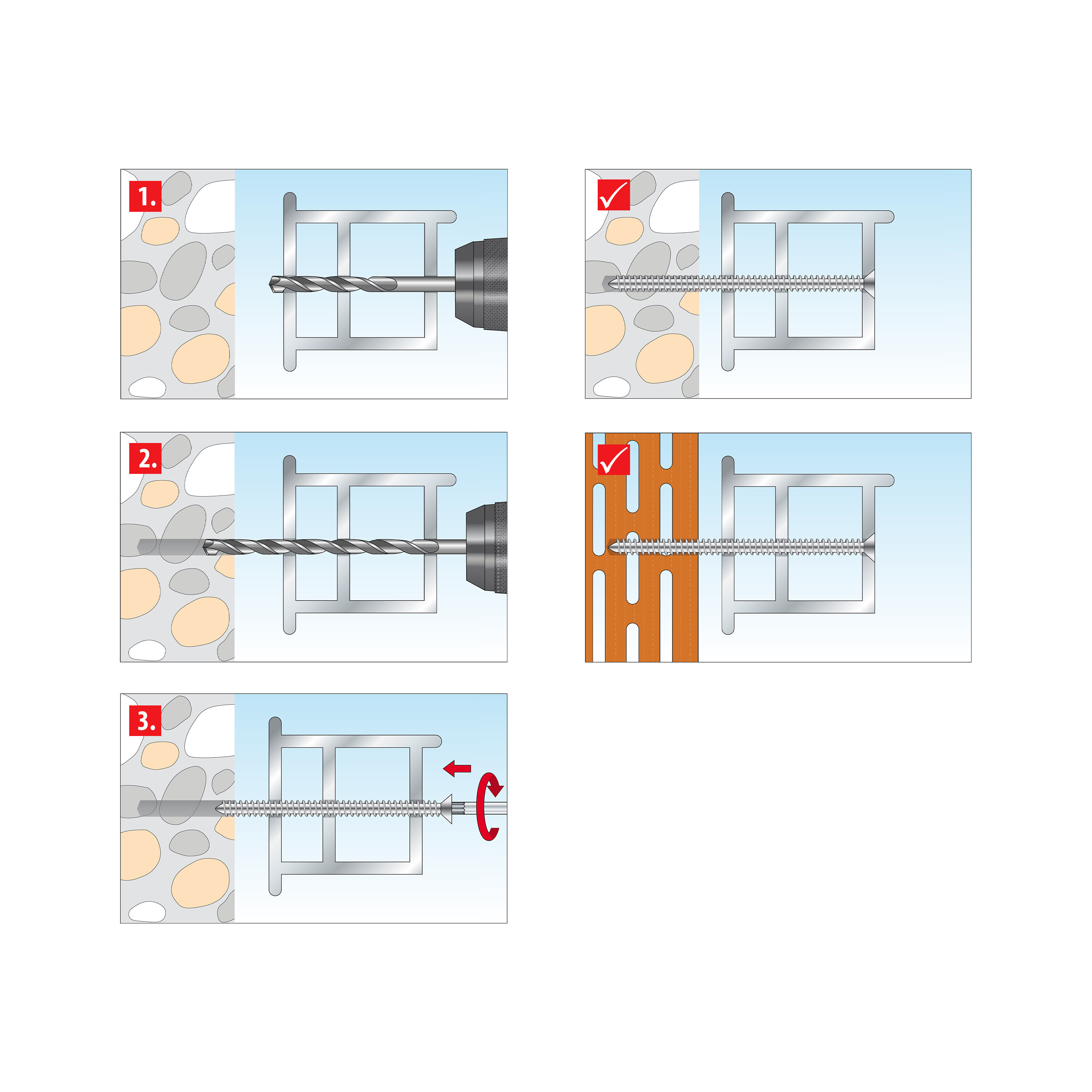

Processing and assembly
- Observe the drill hole Ø and screw-in and drill hole depths of the various building materials
- In cavities, a frame screw length must be selected so that the screw-in depth leads through at least one internal web
- Through installation
| Area of application: | Indoors |
|---|---|
| Diameter: | 8 |
| Eigenschaft: | Rahmenschraube |
| Plug length: | 72 |
| Screw type: | Frame screw |
Safety instructions
- The anchoring depth of the wall plug must be observed
- Drilling method and drill hole cleaning must be adapted to the building material
- The recommended loads only apply to installation in the building material, not for installation in joints
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
- * Holding value applies to tensile and shear force
