Scaffolding dowels
Safe Fix

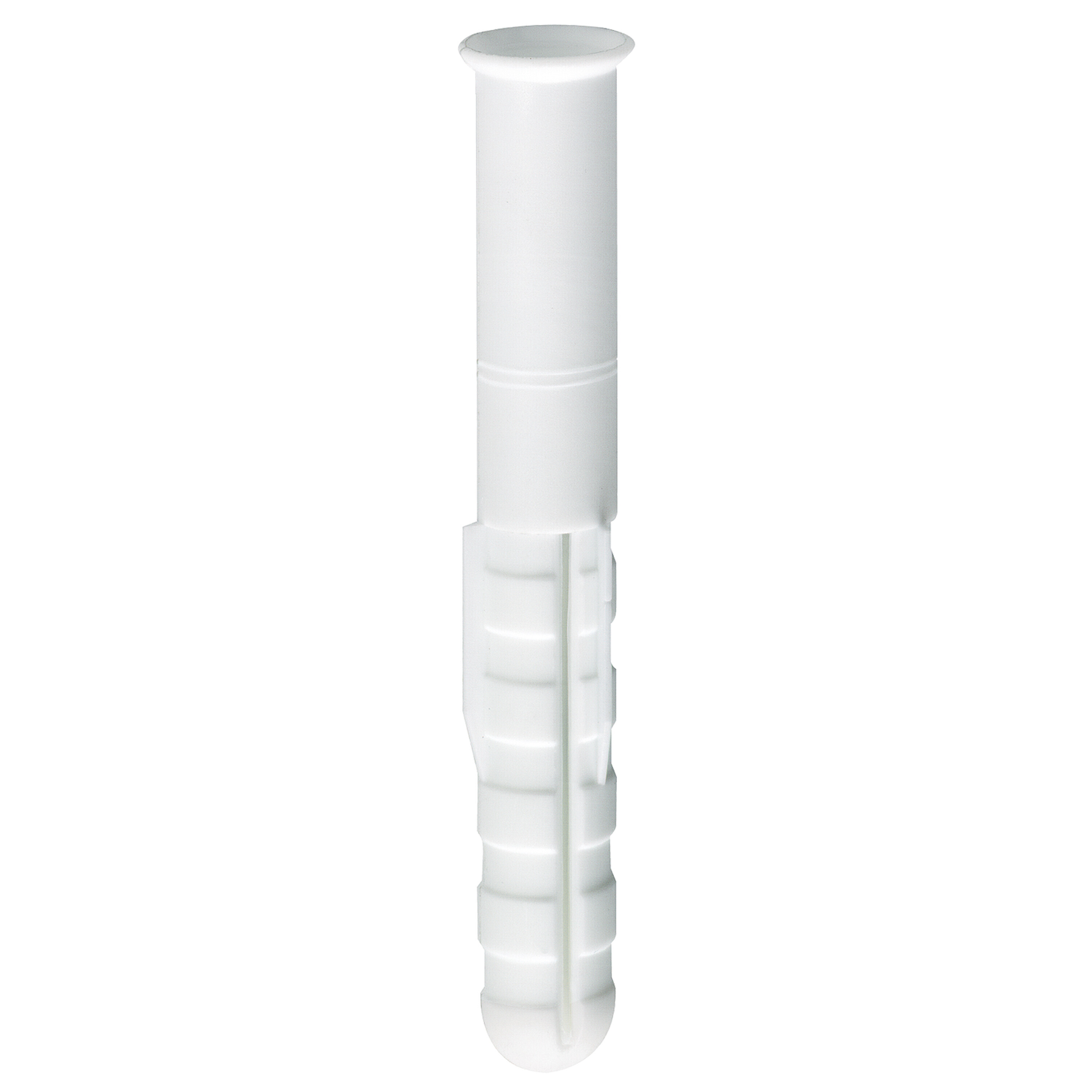

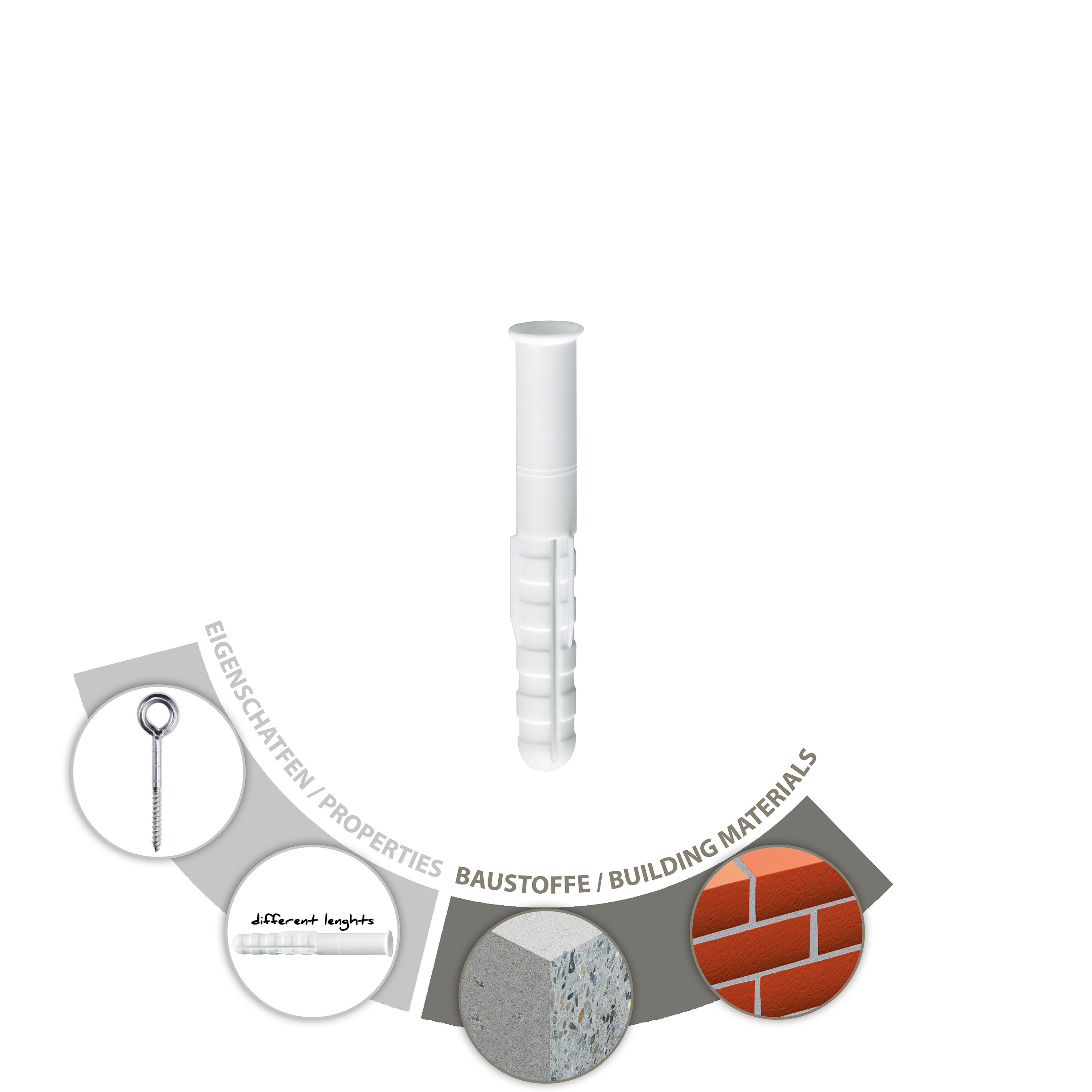

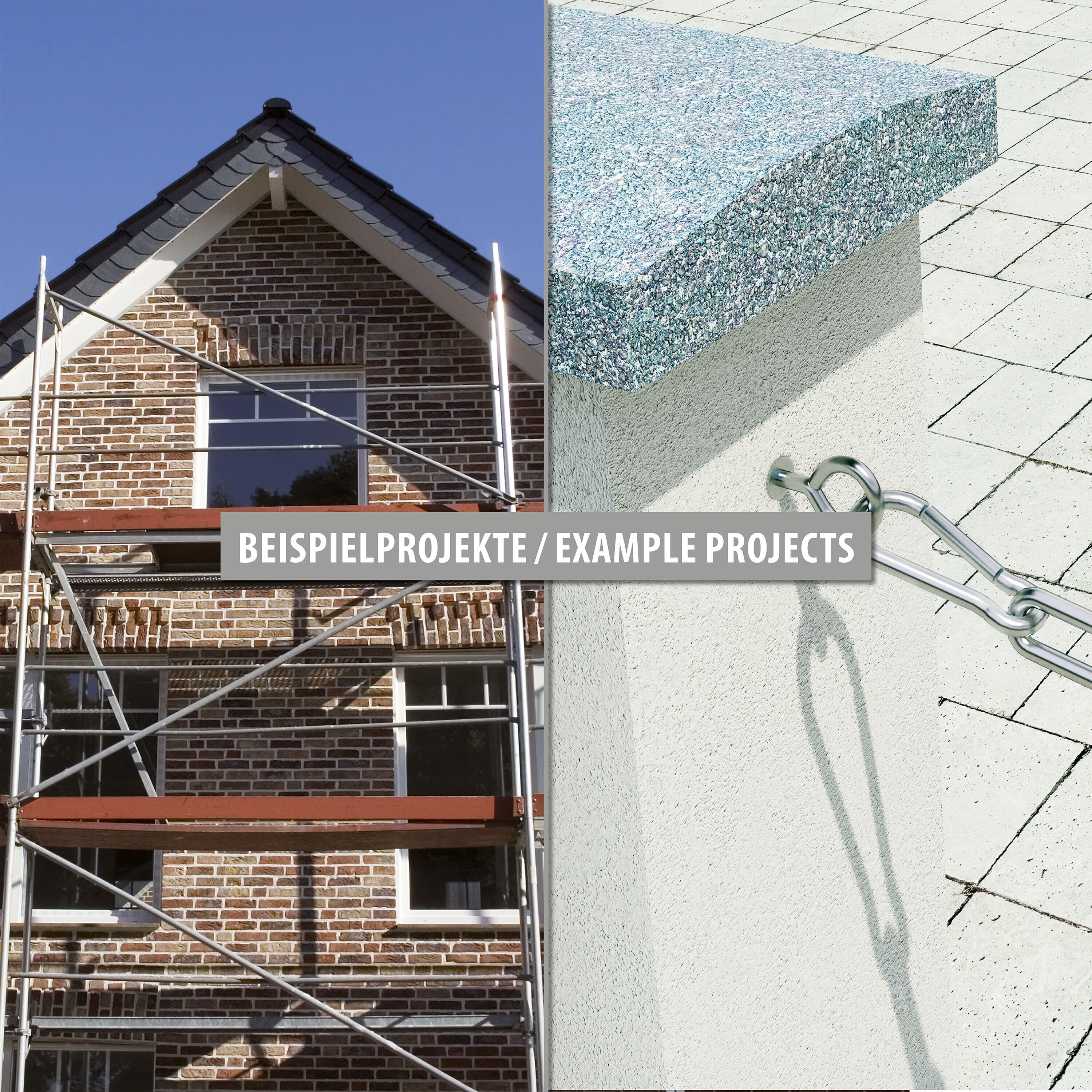

With the TOX Safe Fix scaffold anchoring, construction and renovation work on buildings is a breeze: this scaffold anchor has been specially developed for reliable fixing with extremely high holding values of façade scaffolding in concrete and solid brick - it reliably bridges non-load-bearing layers thanks to a long plug shaft and is perfectly matched to the Safe Fix Eye eye bolt and Safe Fix Cap cover cap, which are also available. The scaffold screw has marking grooves that allow you to easily check the minimum screw-in depth. We recommend using the transparent plastic cover cap to close the drill holes securely and inconspicuously. The Safe Fix plug is available in three different lengths and, in addition to façade scaffolding, is also suitable e.g. for fixing barrier chains, climbing scaffolding and other projects.
The Safe Fix 14/70 scaffold anchoring is supplied in a handy cardboard box containing 20 pieces: this guarantees that everything is neatly stowed away, can be transported safely and is quickly to hand.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 70 |
|---|---|
| Area of application: | Indoors and outdoors |
| Diameter: | 14 |
| Drill diameter: | 14 |
| Drill hole depth: | 80 |
| Plug dimension: | 14 x 70 |
| Property: | Gerüstdübel |
| Beton C20/25 | 330 Kg |
|---|---|
| Vollstein MZ 12 | 330 Kg |
Safety instructions

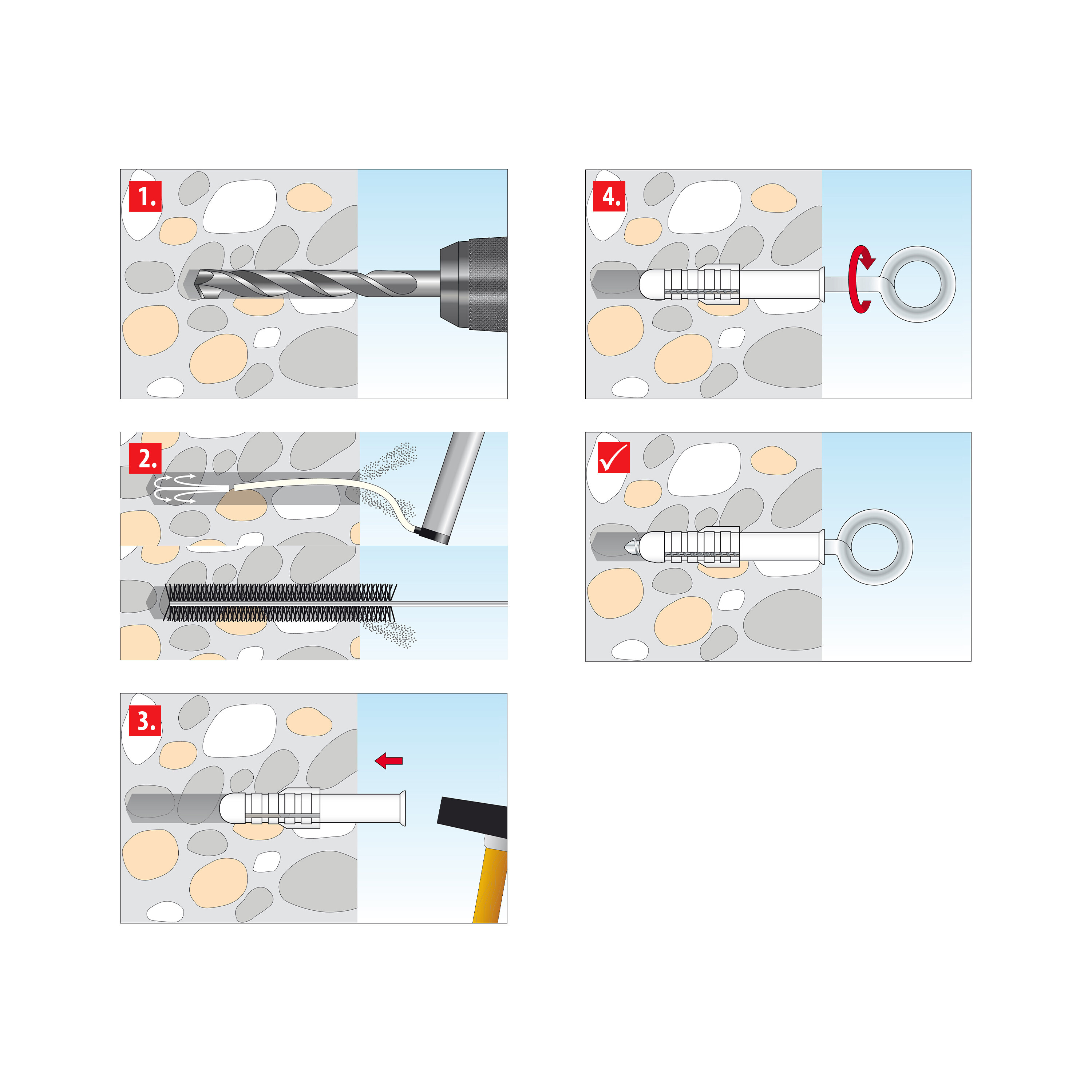

- The anchoring depth of the wall plug must be observed
- The recommended loads only apply to installation in the building material, not for installation in joints
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
