Insulation holder
Keeper
Product information "Keeper"

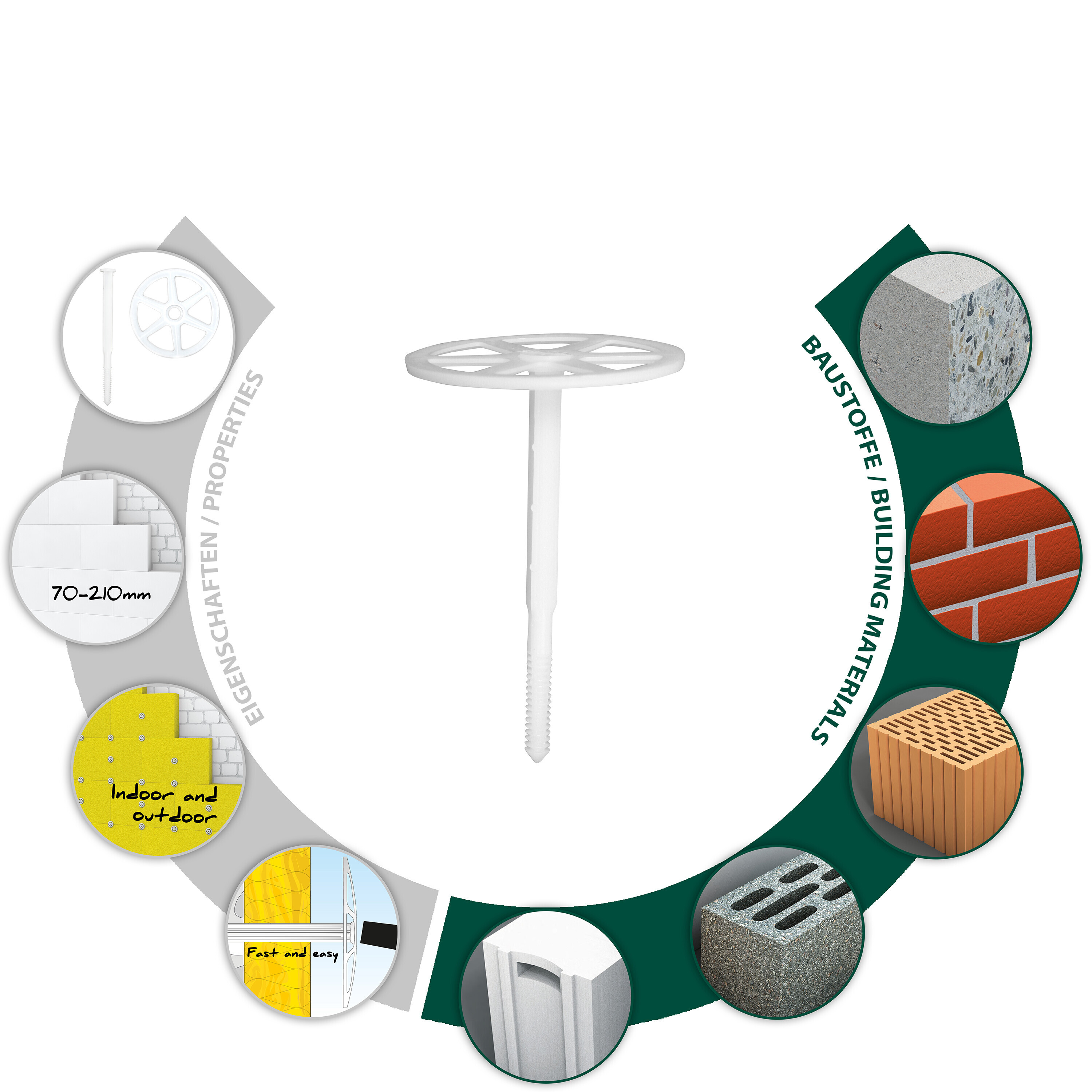

Properties
- 2-part
- Several new lengths for up to 210 mm insulations
- For insulation wool in interiors and exteriors
- Quick and easy impact installation
- Resistant to impacts of weather and rotting
- No additional expansion element required
- No thermal bridges
Description and field of application

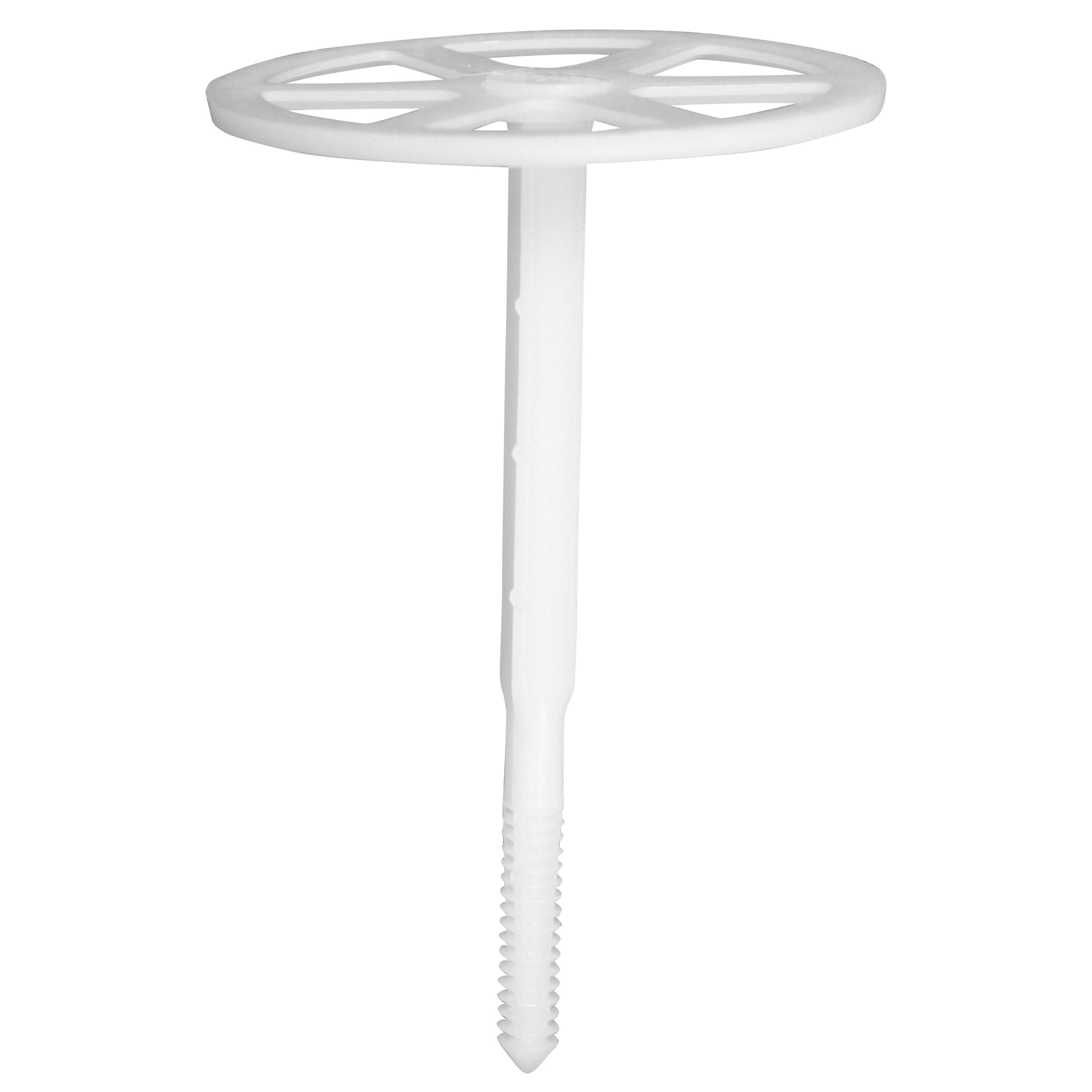

- Wall plug element made of impact-resistant plastic, with longitudinal ribs, shaft and plate Ø 90 mm
- Quick and easy

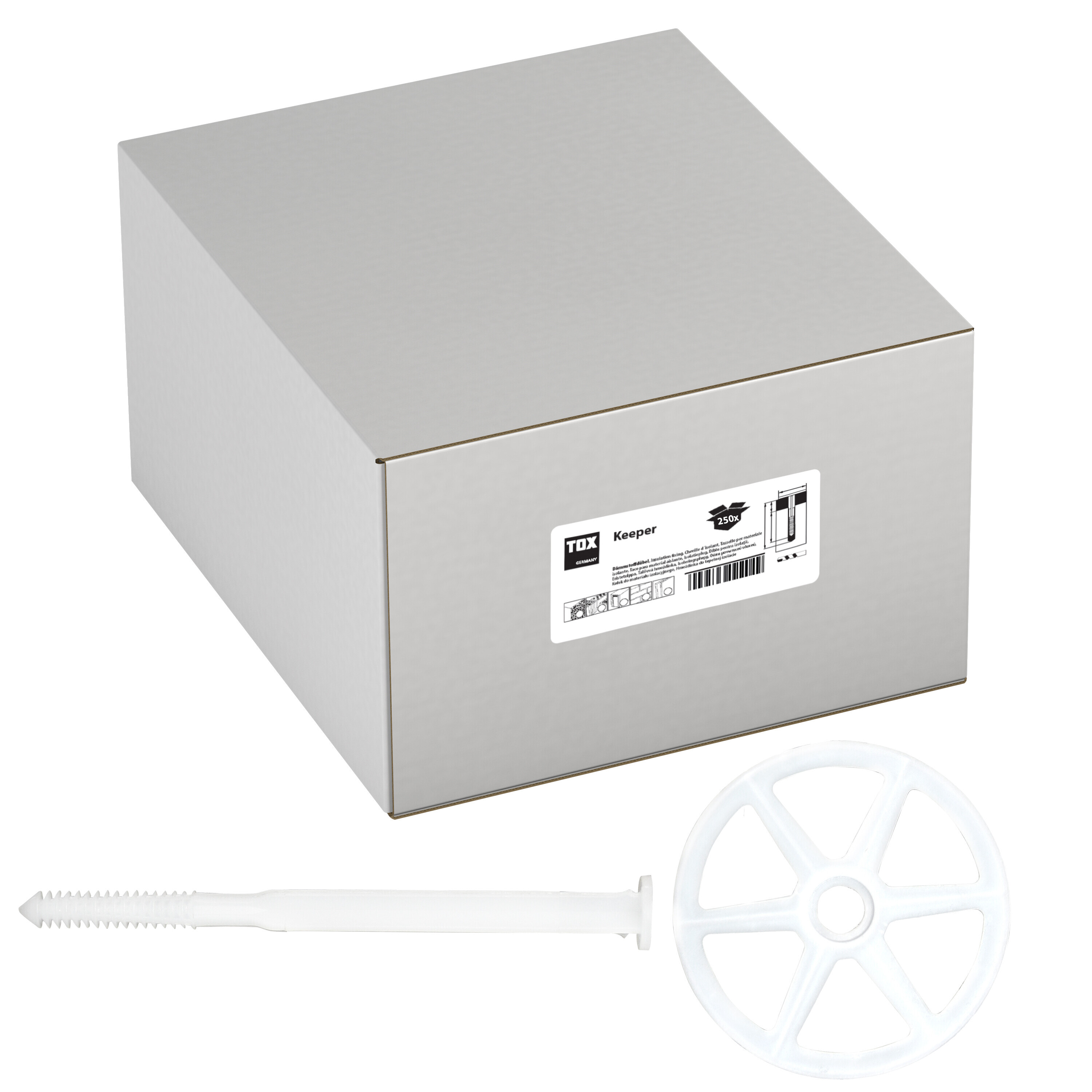

- 2-part, packaging volume reduced by up to 75% compared to single-part insulation holders

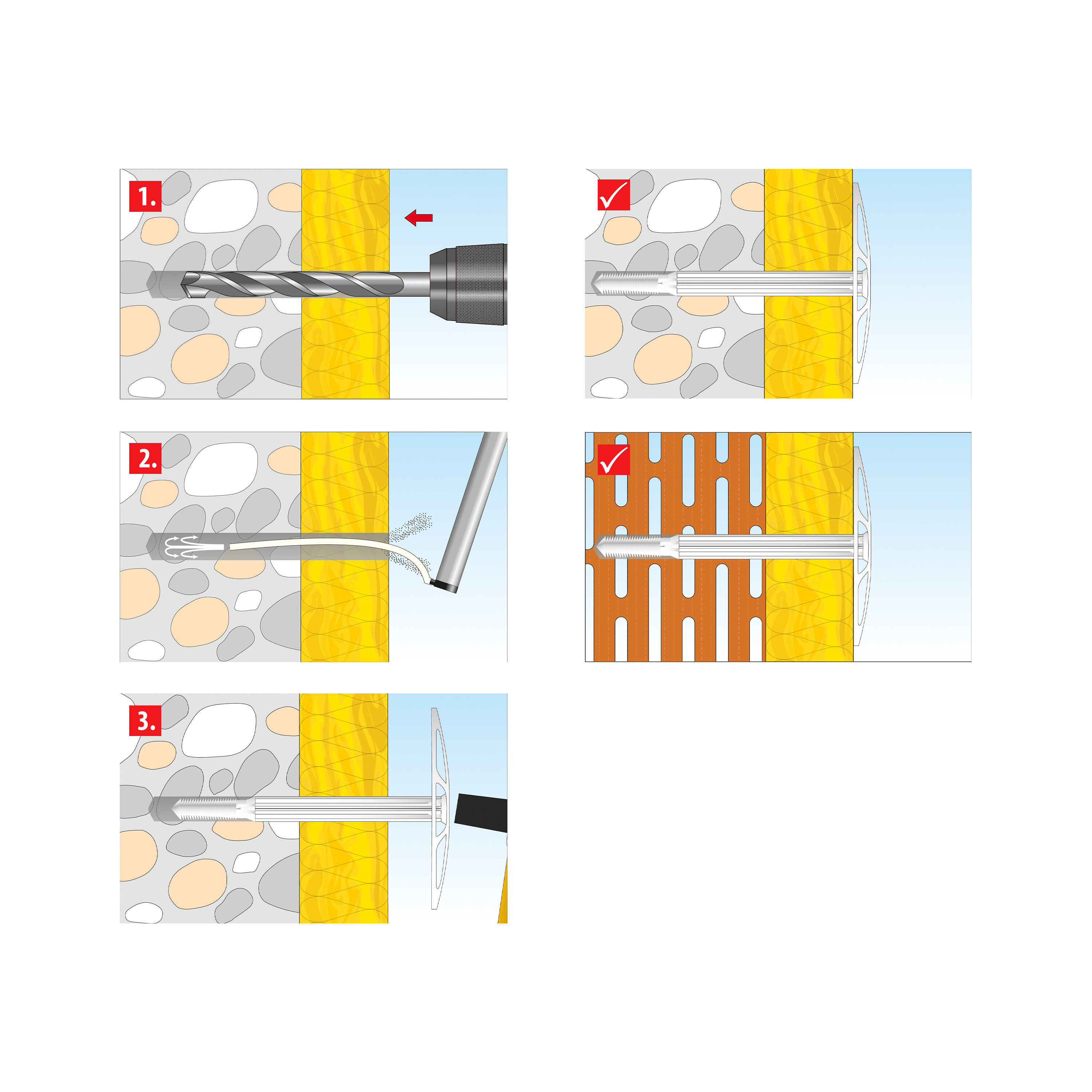

Processing and assembly
- Drill into perforated brick without impact to prevent webs from breaking away
- Drill into concrete and solid brick with impact
- Join wall plug pin and plate
- Knock in wall plug
- Through installation
| Area of application: | Indoors and outdoors |
|---|---|
| Diameter: | 8 |
| Eigenschaft: | Dämmstoffhalter |
| Insulation thickness: | 110 |
| Plug length: | 140 |
Safety instructions
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
