frame plug
Fassad SK

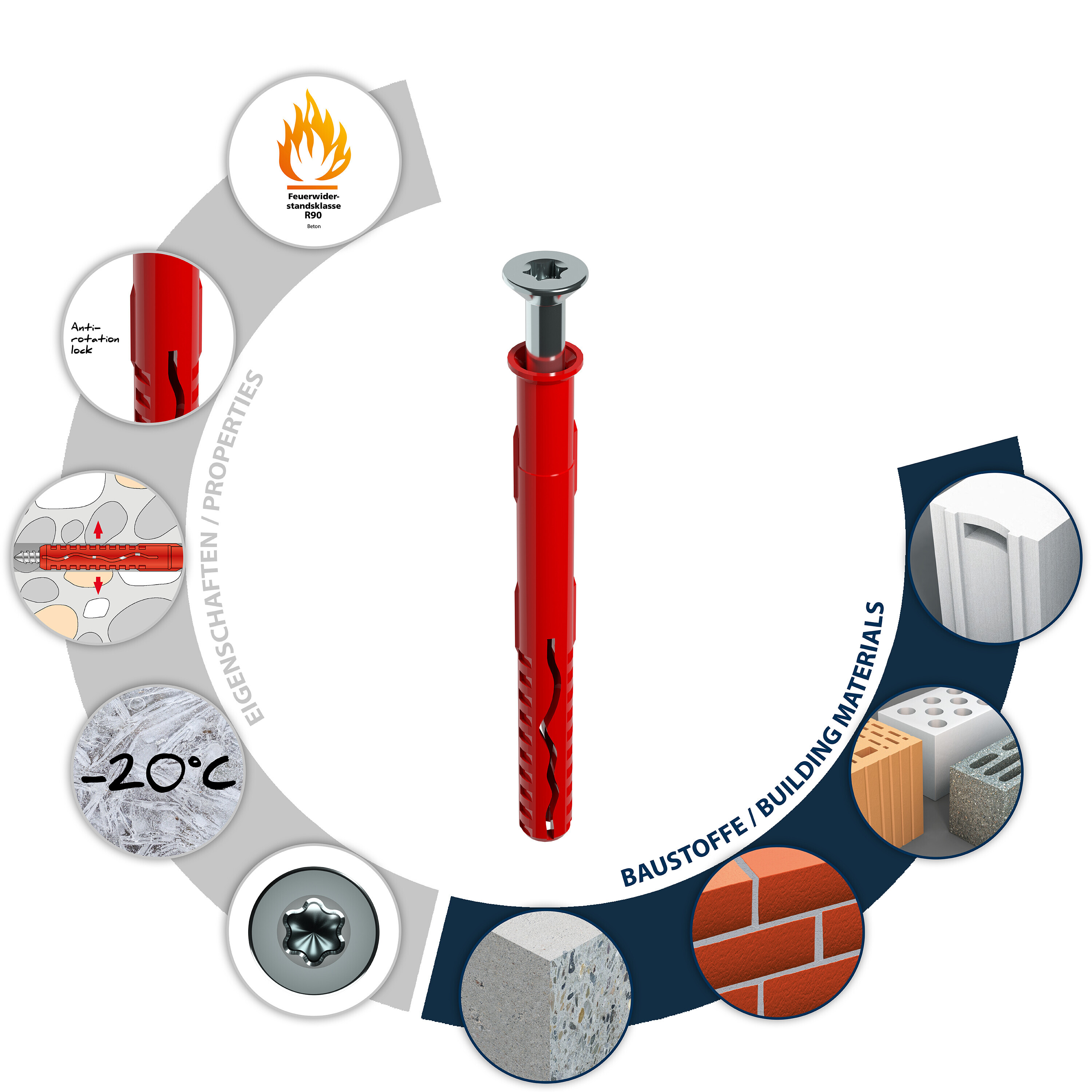

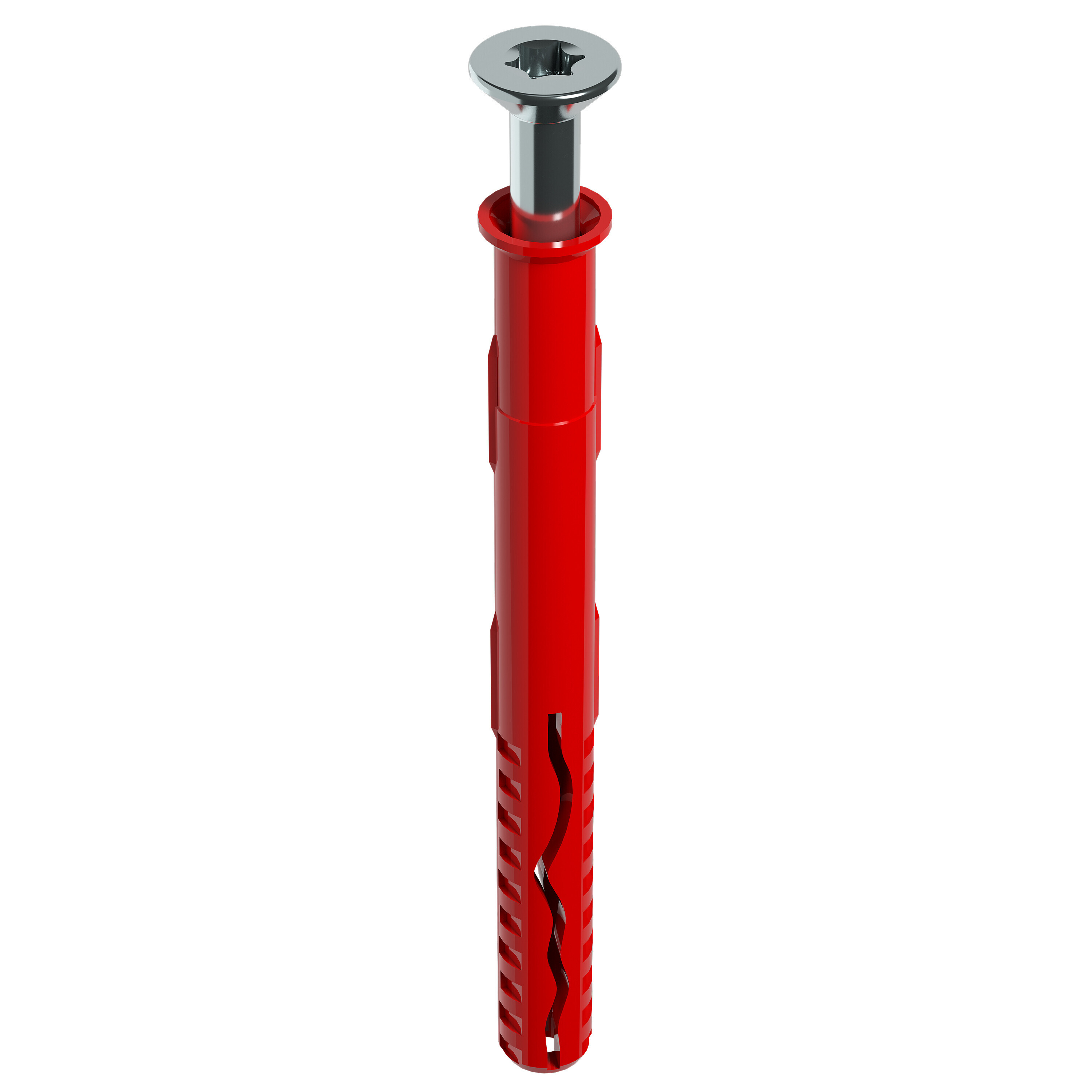

The TOX Fassad SK frame plug is a versatile all-rounder that is suitable for a wide range of building materials - making it the ideal choice for professional craftsmen and DIY projects. Whether concrete, solid brick, perforated brick or aerated concrete, for example, the Fassad SK frame plug can be used universally thanks to its 2-part expansion body with anti-rotation lock. This plug is approved by the building authorities and therefore meets all requirements for secure fixing. It can be used not only for fixing façade constructions, doors and windows, but also for ceiling substructures. With an anchorage depth of 70 mm, the frame plug provides a firm hold in perforated brick and has fire resistance class R90 in concrete. The supplied countersunk head screw with TX40 internal drive is particularly suitable for flush installations.

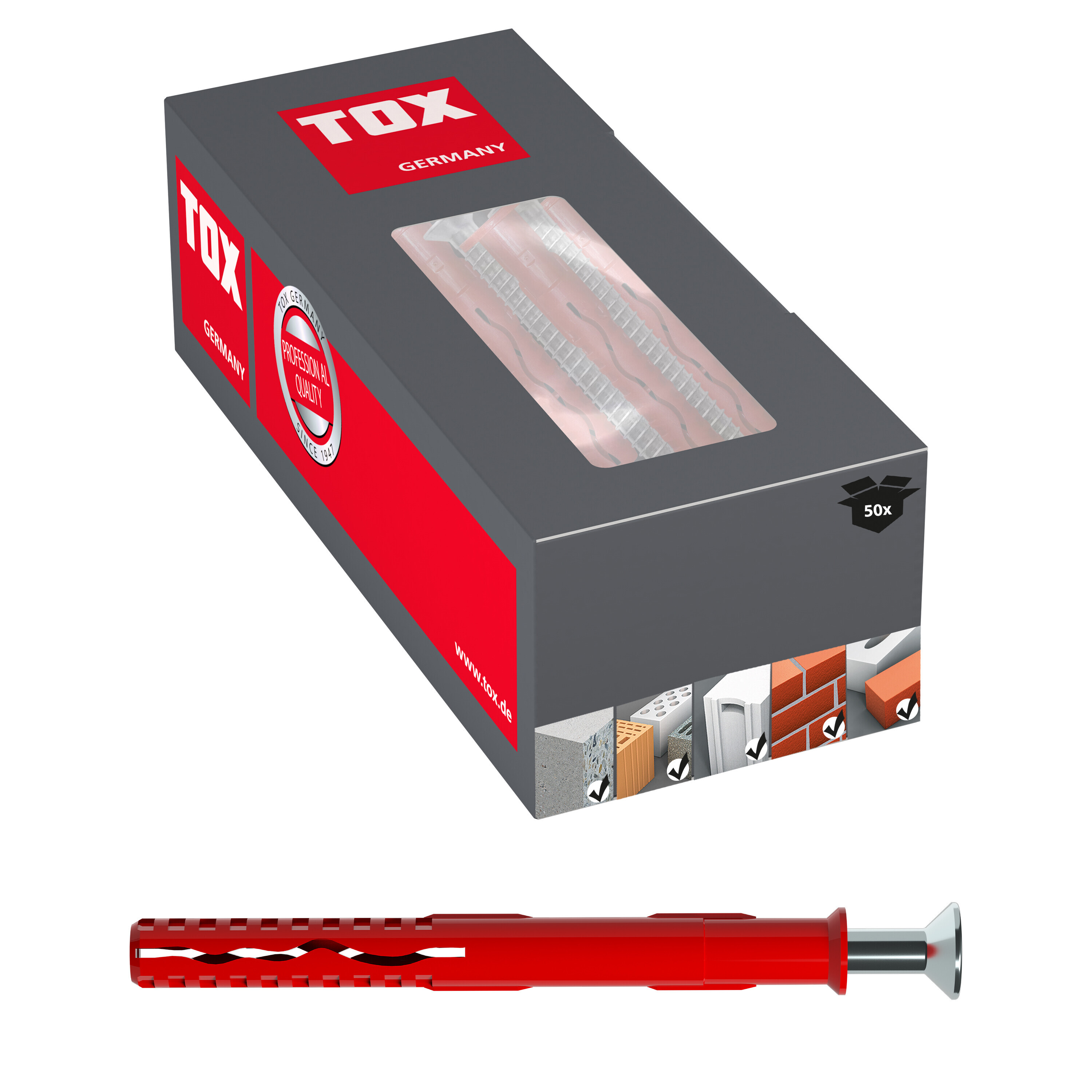

The Fassad SK 10/120 frame plug with screw is supplied in a handy cardboard box containing 50 pieces: this guarantees that everything is neatly stowed away, can be transported safely and is quickly to hand.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 70 |
|---|---|
| Approval number: | ETA-17/1002 |
| Area of application: | Indoors and outdoors |
| Clearance hole diameter: | 10,5 |
| Diameter: | 10 |
| Diameter of included screw: | 7 |
| Drill diameter: | 10 |
| Drill hole depth: | 85 |
| Length of included screw: | 130 |
| Plug dimension: | 120 |
| Property: | Rahmendübel |
| Beton C20/25 | 200 Kg |
|---|---|
| Vollstein MZ 12 | 170 Kg |
| Vollstein KS 12 | 170 Kg |
| Hochlochziegel ≥ Hlz12 Rohdichte 1 kg/dm³ | 45 Kg |
| Hohlblockstein ≥ Hbl2 | 20 Kg |
| Porenbeton ≥ PB2, PP2 | 30 Kg |
| Porenbeton ≥ PB6, PP6 | 90 Kg |
Safety instructions
- When sizing, the entire declaration of performance of the Fassad must be observed
- The partial safety factors of the resistances and a partial safety factor of γF = 1.4 are to be considered
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
- For other masonry types see approval ETA-17/1002
- 1 FZul for tension, shear lead or diagonal pull
