nail plug
Attack

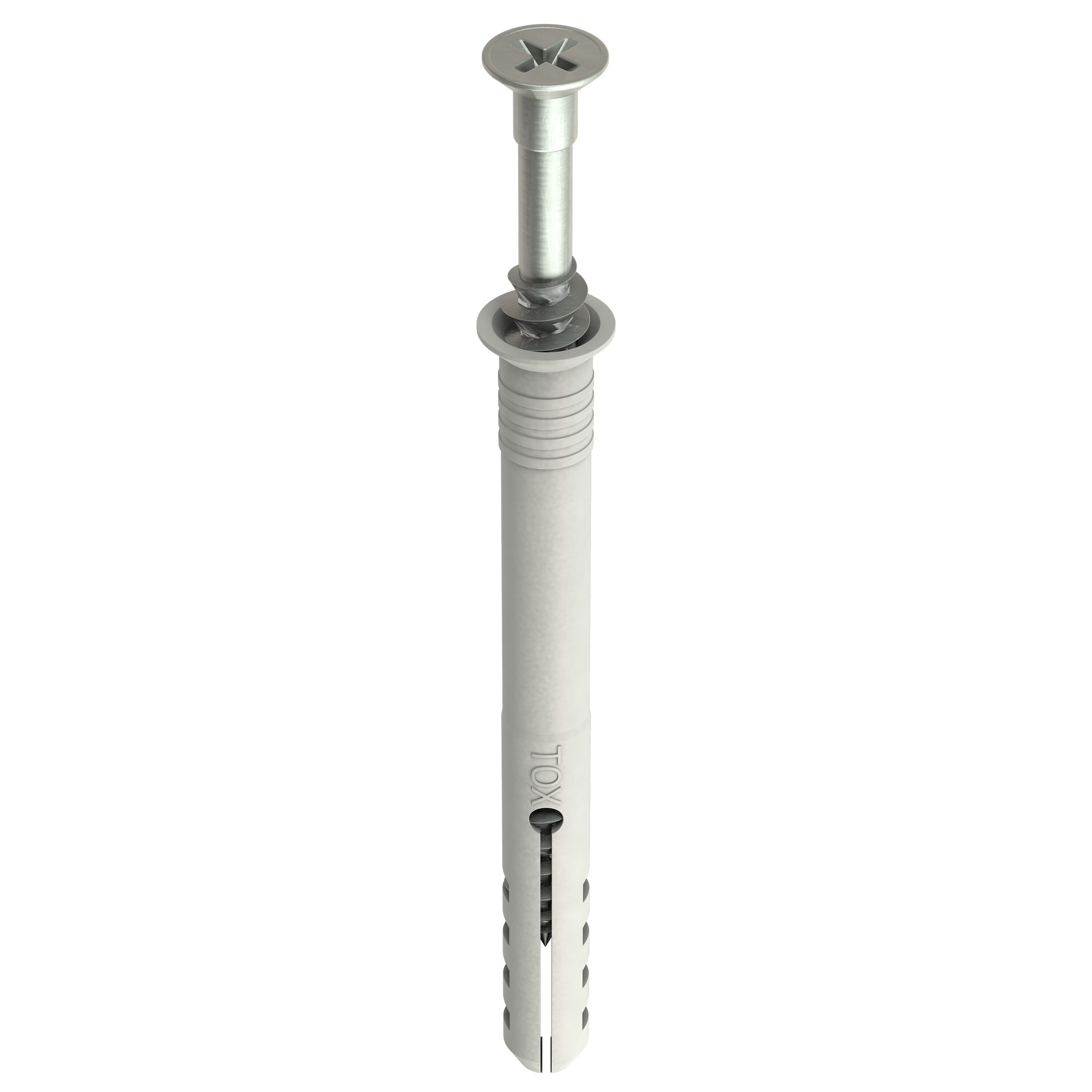

The TOX Attack nail plug including pre-assembled nail screw with countersunk head and PZ drive is ideal for quick and easy fixing of wooden components. The nail screw can be driven into the building material quickly and easily. The double-split expansion body of the frame plug ensures a secure hold. A drive-in lock prevents premature expansion and ensures optimum force distribution. The countersunk head of the screw enables surface flush fixing of the attachment parts. The Attack nail plug is a practical solution for anyone looking for quick and secure fixing of wooden components.

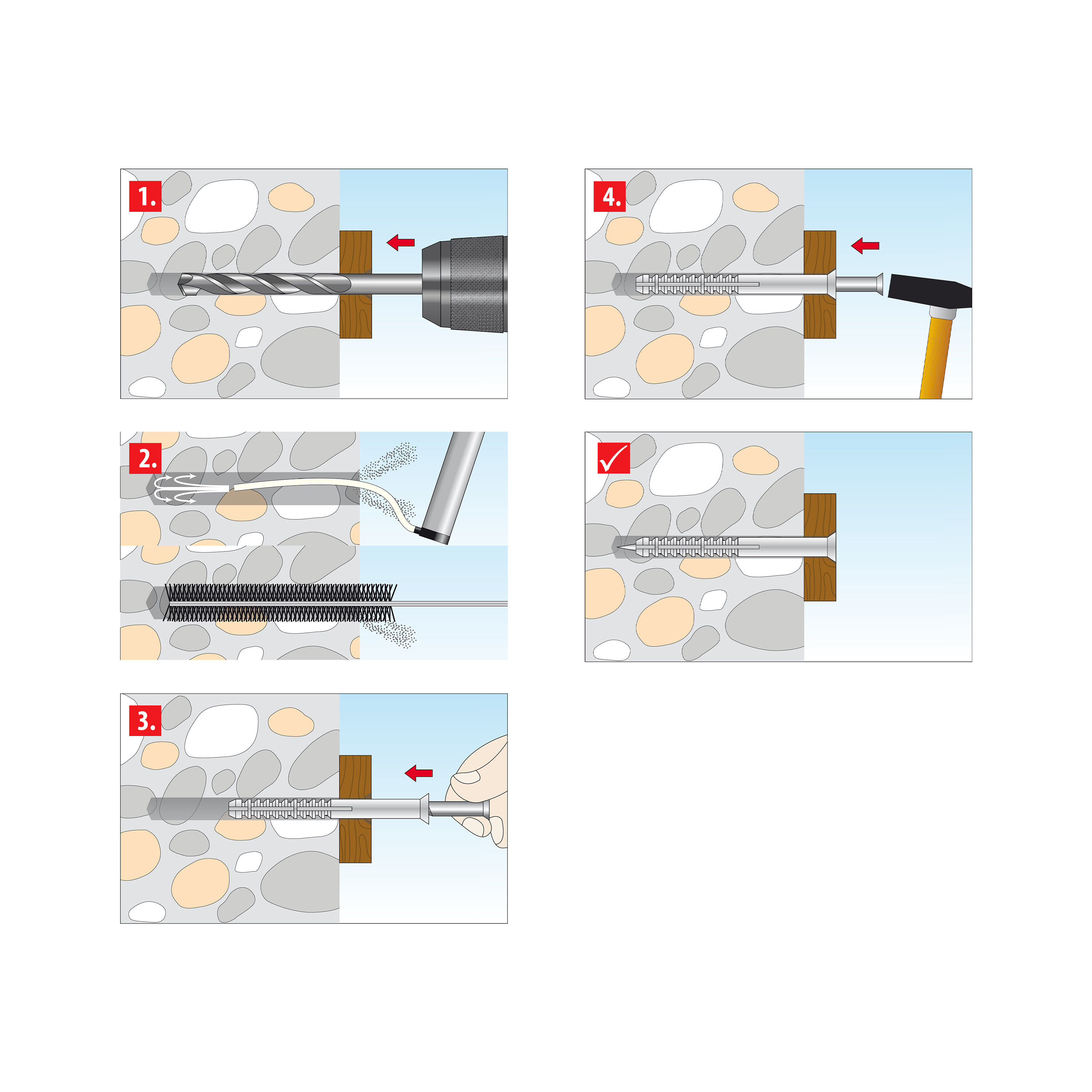

- Just hammer it in: quick and easy
- For fixing timber components in solid and perforated brick, concrete and aerated concrete
- Lock prevents premature expansion of the plug
- Nail screw with saw-tooth thread
- Fast and economical push-through installation
- Nail screw can be easily unscrewed if required

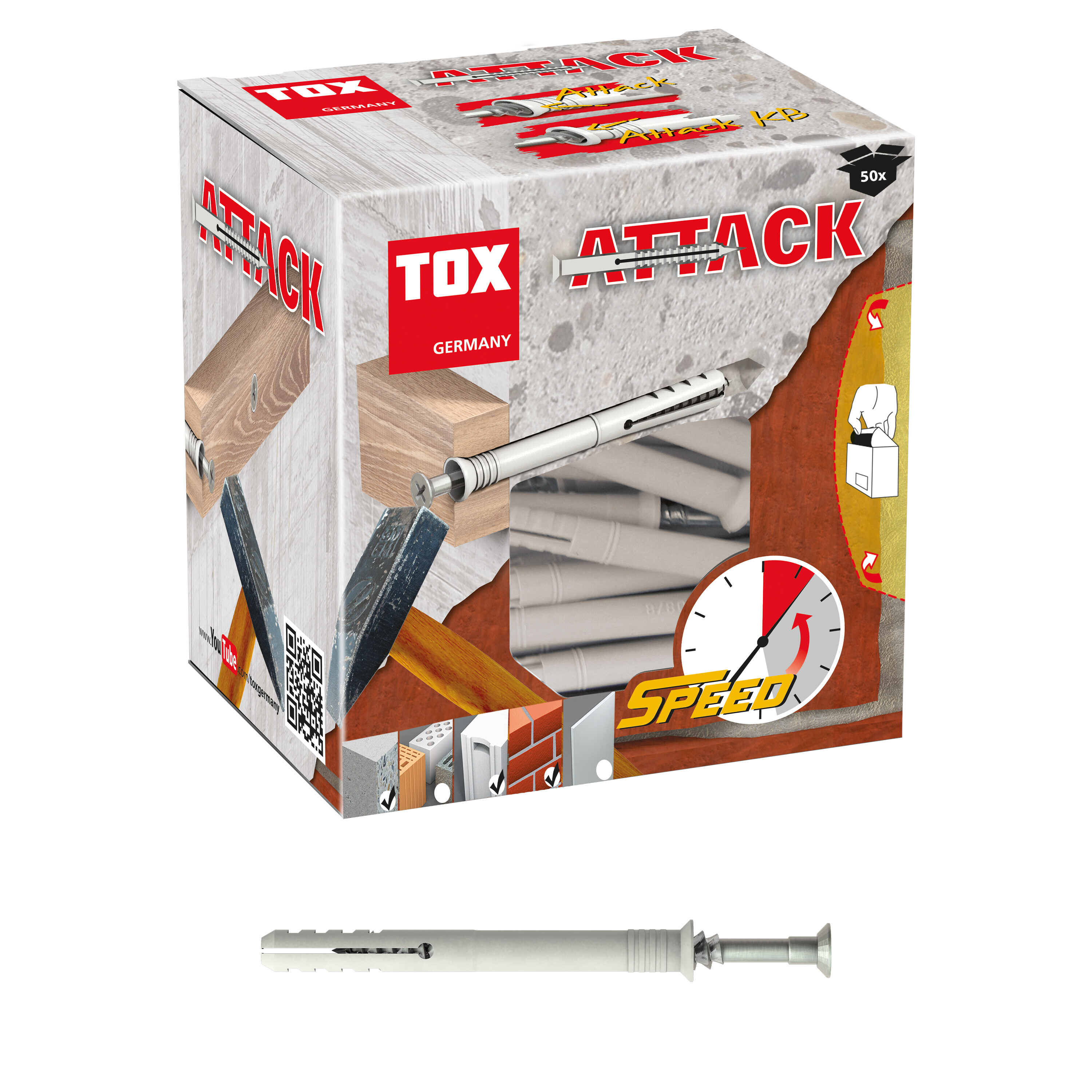

The TOX Attack 8/140 nail plug is supplied in a handy cardboard box with 50x plugs including pre-assembled nail screw: This guarantees that everything is neatly stowed away, safely transportable and quickly to hand.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 40 |
|---|---|
| Area of application: | Indoors |
| Clearance hole diameter: | 8 |
| Diameter: | 8 |
| Diameter of included screw: | 5 |
| Drill diameter: | 8 |
| Drill hole depth: | 150 |
| Length of included screw: | 145 |
| Plug dimension: | 8 x 140 |
| Property: | Nageldübel |
| Beton C20/25 | 35 Kg |
|---|---|
| Vollstein MZ 12 | 30 Kg |
| Porenbeton ≥ PB4, PP4 | 15 Kg |
Safety instructions
- The anchoring depth of the wall plug must be observed
- Drilling method and drill hole cleaning must be adapted to the building material
- The recommended loads only apply to installation in the building material, not for installation in joints
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
- * In perforated brick, the expansion element must expand in at least one internal web
