All-purpose frame plug
Apollo KB

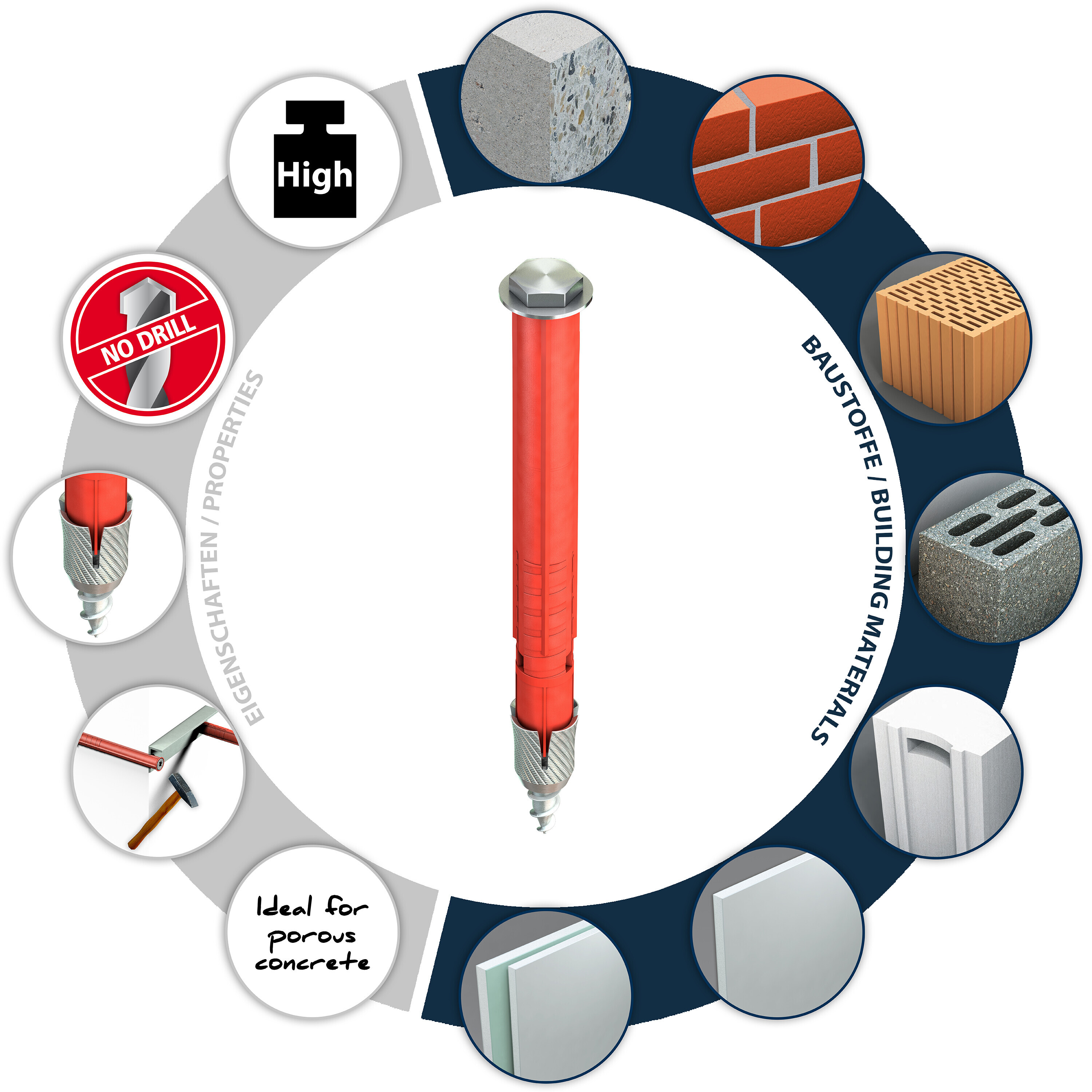

With its unique design, the Apollo KB all-purpose frame plug holds in almost all building materials - in concrete and solid brick by expansion and in perforated brick, aerated concrete or gypsum plasterboard by knotting the plug body. With such versatility, the all-purpose Apollo KB frame plug is the ideal solution for DIY enthusiasts and professionals alike. The Apollo KB is particularly quick and easy to drive and fix in aerated concrete without the need for pre-drilling. The all-purpose frame plug has a triple-split expansion body with a metal tip, which enables high holding values, and the zinc-plated, pre-assembled hexagon head screw with SW13 drive means it can be used straight away - saving time and effort during installation! The Apollo is perfect for push-through installation. There are anti-rotation locks on the shaft of the plug, making it easy to tighten the screw. Optimum holding values are achieved in aerated concrete after 6 screw rotations.

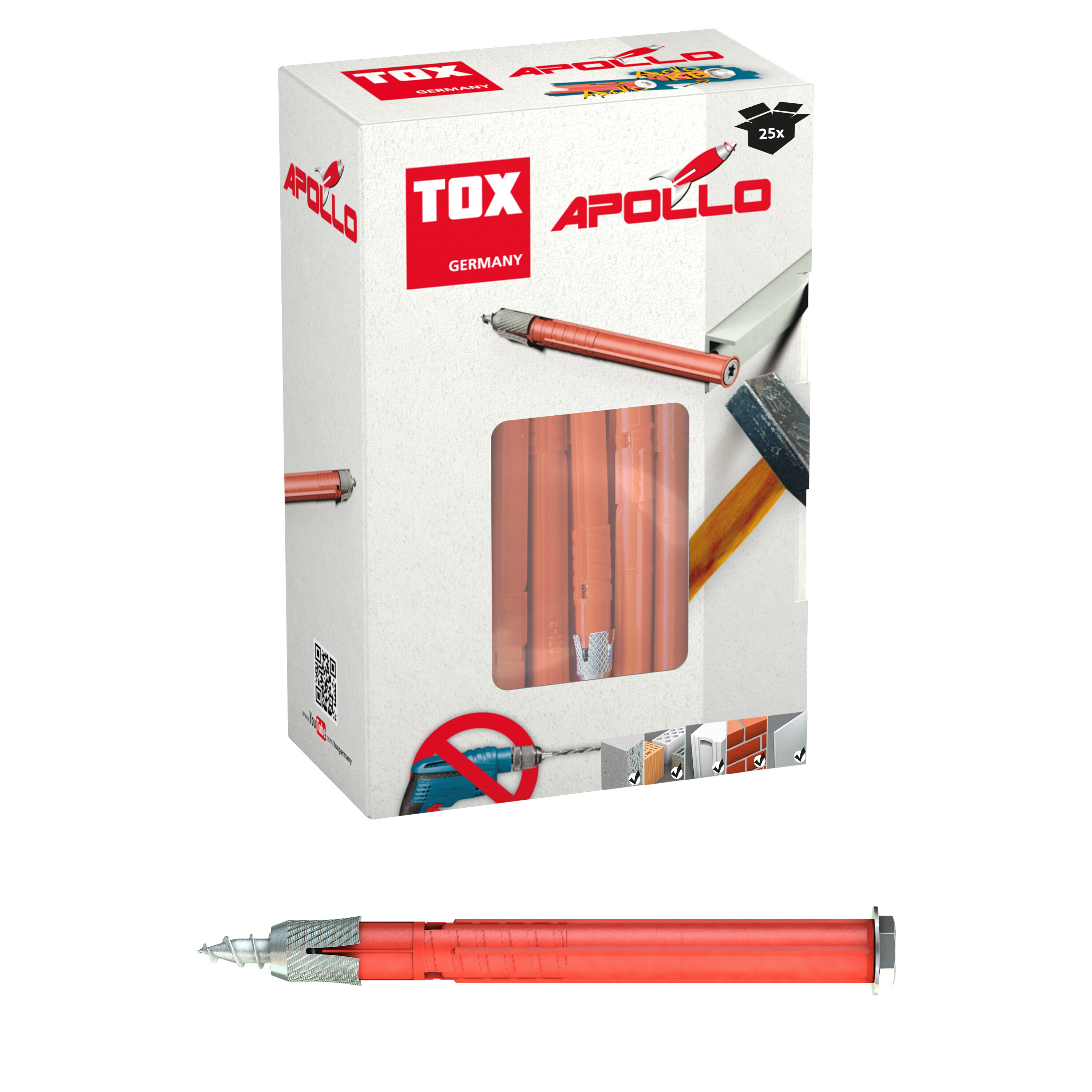

The all-purpose Apollo KB 10/120 frame plug is supplied in a handy cardboard box containing 25 pieces: this guarantees that everything is neatly stowed away, safely transportable and quickly to hand.
The red all-purpose plug has made TOX famous: the company is a leader in the field of all-purpose plugs. The comprehensive assortment is consistently geared towards the needs of customers and end users. The TOX brand stands for innovative products and competent solutions in the field of fastening technology.
| Anchoring depth: | 55 {75} |
|---|---|
| Area of application: | Indoors |
| Clearance hole diameter: | 10 |
| Diameter: | 10 |
| Diameter of included screw: | 7 |
| Drill diameter: | 10 |
| Drill hole depth: | 130 |
| Length of included screw: | 120 |
| Plug dimension: | 10 x 120 |
| Property: | Allzweck-Rahmendübel |
| Beton C20/25 | 80 Kg |
|---|---|
| Vollstein MZ 12 | 60 Kg |
| Hochlochziegel ≥ Hlz12 Rohdichte 1 kg/dm³ | 30 Kg |
| Hohlblockstein ≥ Hbl2 | 35 Kg |
| Porenbeton ≥ PB2, PP2 | 30 Kg |
| Gipskartonplatte 12,5 mm | 10 Kg |
| Gipskartonplatte 2x 12,5 mm | 15 Kg |
| Gipsfaserplatte 12,5 mm | 15 Kg |

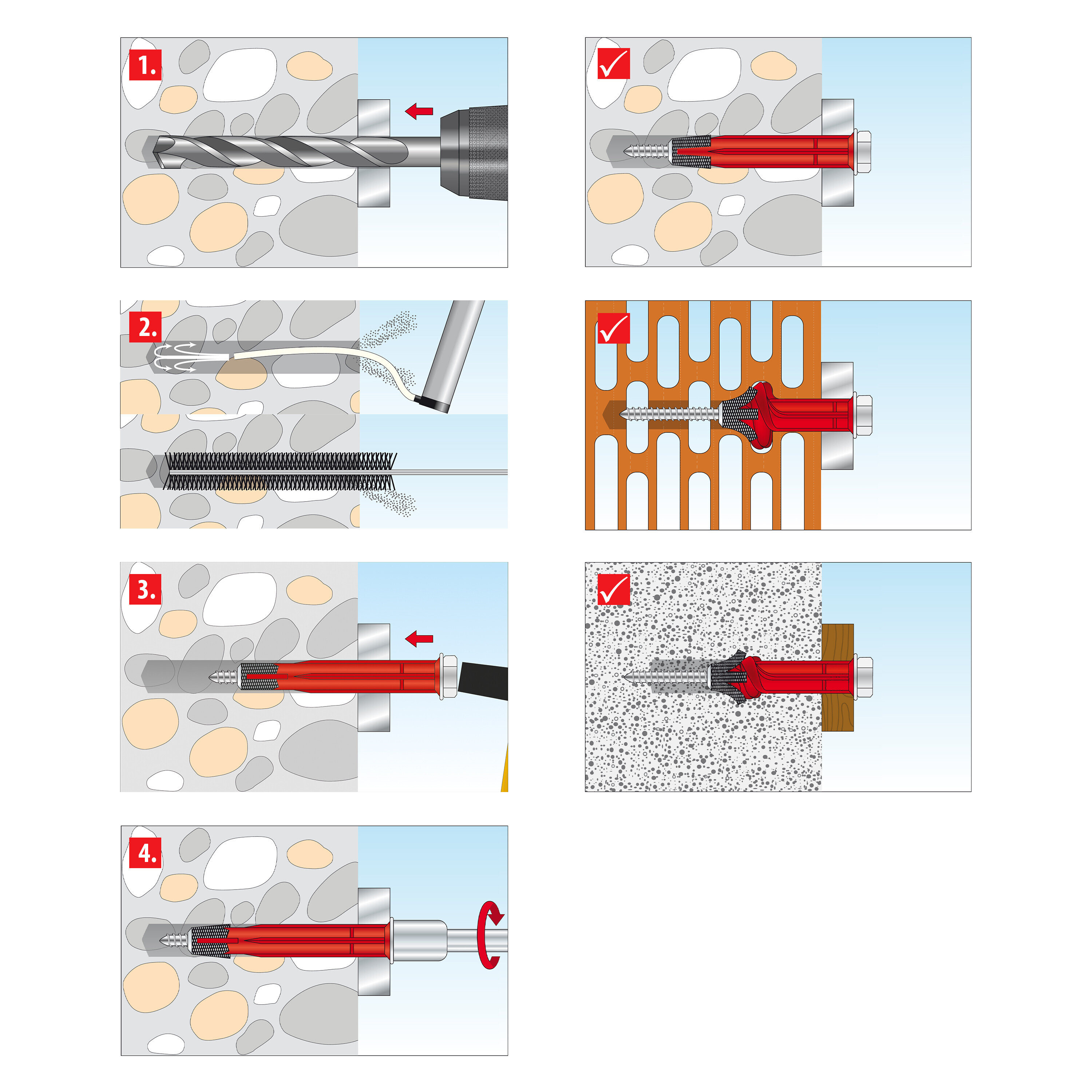

Safety instructions
- The anchoring depth of the wall plug must be observed
- Drilling method and drill hole cleaning must be adapted to the building material
- The recommended loads only apply to installation in the building material, not for installation in joints
- Approved wall plugs must be used for fixings where safety is of importance (see also www.tox.de/safety+loads)
